1128500 WPC 2000 User Manual
3-34 Initialization, Setup, and Checkout
When the Set Cams function is enabled, the “Auto Carry-up” and “Micro-inch” segments on
the WPC 2000 display function as indicators for cam channel settings, as shown by the labels
“cam on angle” and “cam off angle” beneath the segments (see Figure 3-12).
To make cam channel settings, perform the following steps:
1. Enable the Set Cams function (see Enabling Cam Adjustments, page 2-40).
2. Turn the Stroke Select switch to “INCH” to put the press in Inch mode.
3. Press the Reset/Select button repeatedly until the “cam on angle” (or “Auto Carryup”)
segment is illuminated.
The identifier “C1” (for Cam 1) appears at the left of the LED display; the current Cam 1
ON angle is shown at the right of the display (see Figure 3-12). The Cam 1 ON angle is
also represented at one end of an illuminated arc of LEDs on the crank-angle clock.
4. To change the current setting, turn the WPC Settings key switch to “+” (counterclockwise)
to increase the angle or to “–” (clockwise) to decrease the angle.
As you increase or decrease the angle, additional LEDs at one end of the illuminated LED
arc on the crank-angle clock are turned on, or currently illuminated LEDs are turned off.
5. Press the Reset/Select button to illuminate the “cam off angle” (or “Micro-inch”) segment
(see Figure 3-13, page 3-35).

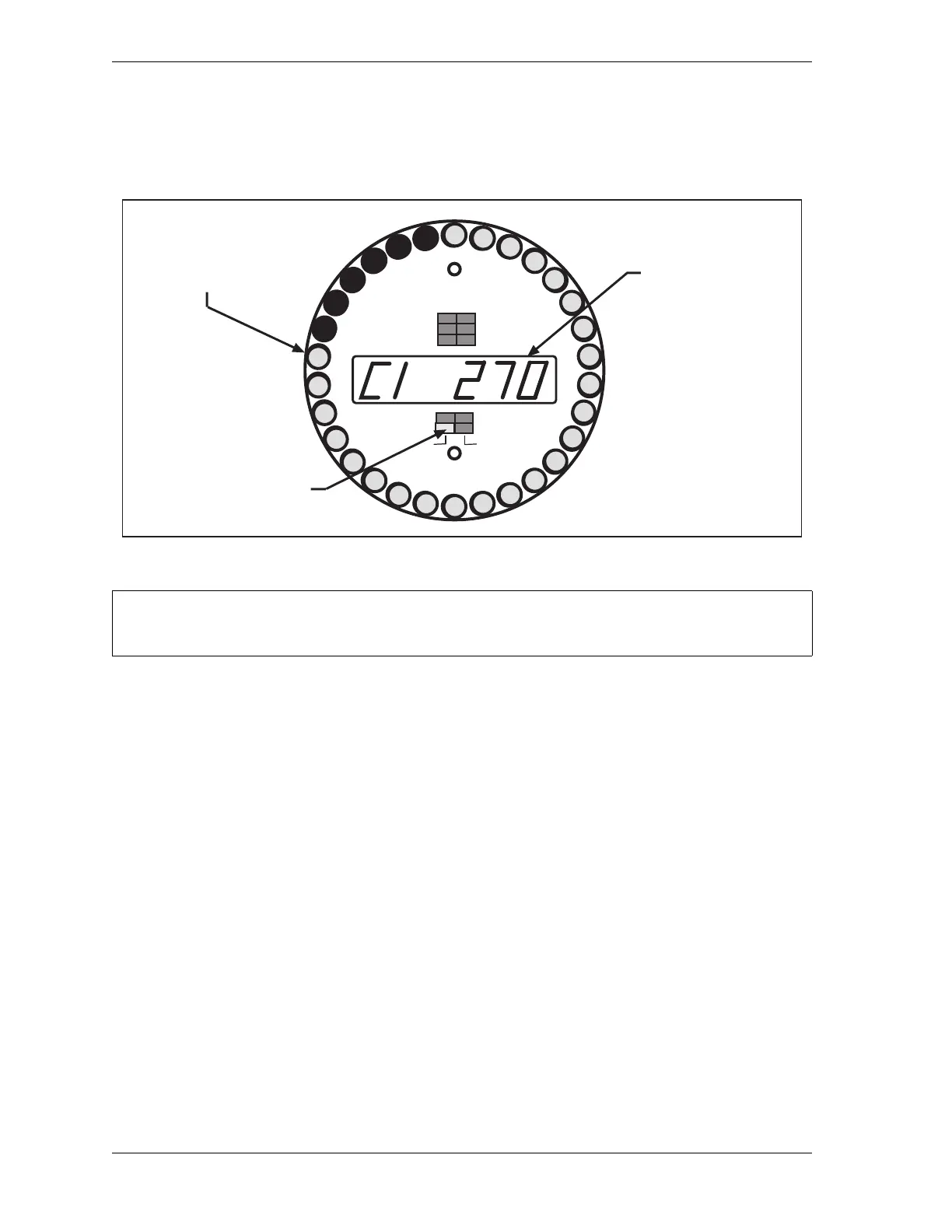

Figure 3-12. Cam Channel Settings Display: Cam 1 ON Angle (270°) Shown
Cam settings cannot be made while the press is running.
BRAKE WARNING
INTERRUPTED STROKE
TOP STOP ANGLE
AUTO CARRYUP
STOP TIME LIMIT
MICRO-INCH
STOPPING TIME
STOPPING ANGLE
90
° STOP TEST
COUNTER
COUNTER PRESET
ANGLE / SPM
cam on angle
cam off angle
Cam on angle
segment
Cam 1 ON angle
display
Cam 1 ON
angle shown by
illuminated LEDs
NOTICE
