WPC 2000 User Manual 1128500
Installation 2-57
7. Connect the display cable from TB706 on the Display board to TB108 on the Main
Processor board, referring to Table 2-15, page 2-54 for wiring connections.
8. Install the Reset/Select button in the left cutout below the display. Wiring for the Reset/
Select button is provided on the Settings key switch wiring harness (see step 10).
9. Install the Mute lamp in the center cutout. The Mute lamp includes wiring that you
connect to terminals on the WPC 2000 Main Processor board.
10. Install the Settings key switch in the right cutout. The Settings key switch includes a
wiring harness with connectors for attachment to the Reset/Select button and the WPC
2000 Display board.
11. Slide the connector at the end of the yellow wire on one arm of the Settings key switch
wiring harness over the topmost terminal on the switch body of the Reset/Select button, as
shown in Figure 2-31.
Slide the connector at the end of the two black wires on the same arm of the wiring
harness over the lower terminal on the Reset/Select button switch body, as shown in
Figure 2-31.
CONNECT DISPLAY CABLE CORRECTLY
Make sure that the display cable is connected correctly at both ends. Connect the display
cable to TB706 on the Display board with the black wire closest to the small numeral 1
toward the bottom of the board. The black wire indicates pin #1.

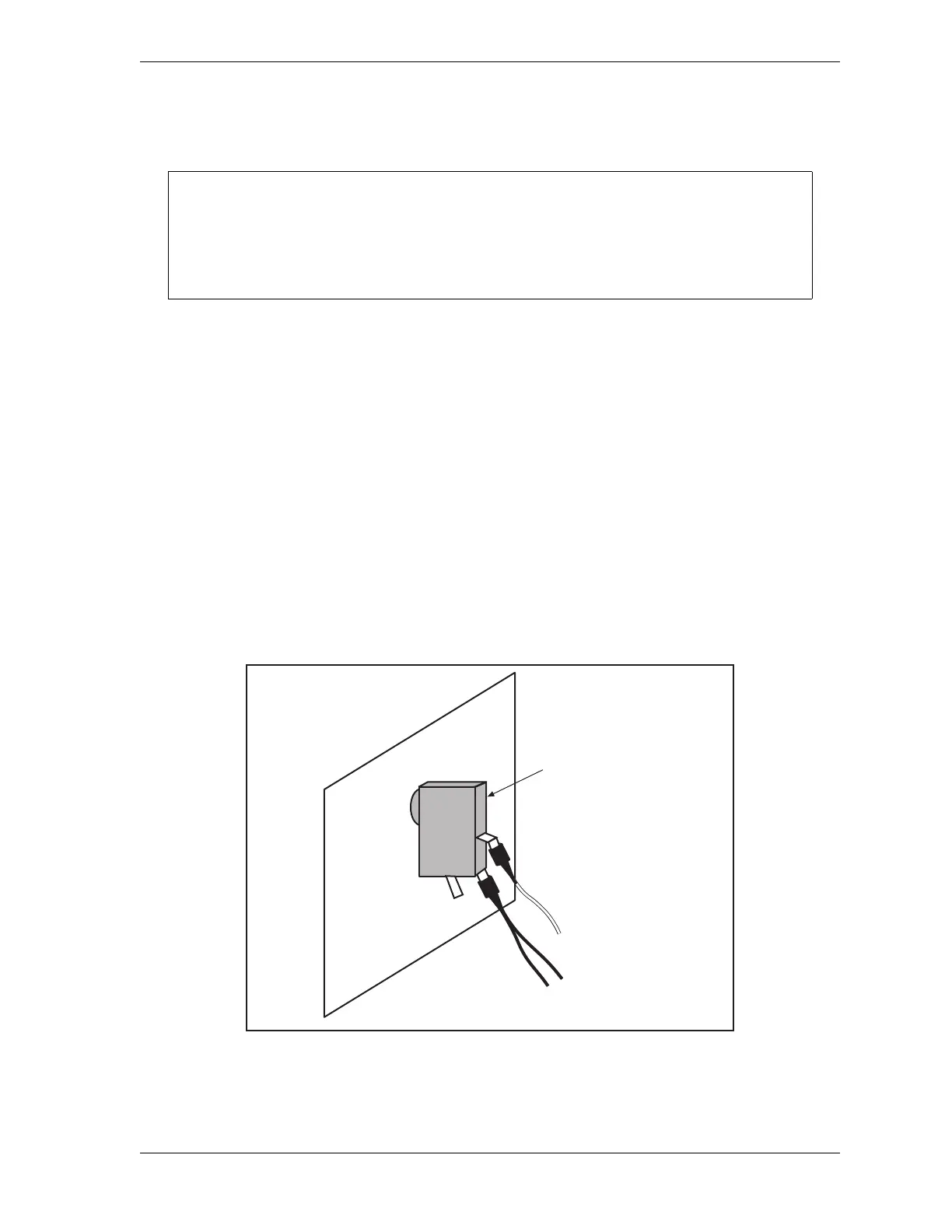

Figure 2-31. Reset/Select Button Wiring Connections
NOTICE
No connection
Yellow wire
2 Black wires
Switch body
(Reset/Select button)
Enclosure
or console
