1128500 WPC 2000 User Manual
2-44 Installation
Mounting a One-hand Control
To mount the One-hand Control, perform the following steps, referring to Figure 2-23, below,
and Figure 2-24, page 2-45 for mounting dimensions:
DO NOT MOUNT OPERATOR CONTROL TOO CLOSE TO HAZARD
Mount the One-hand Control outside the area protected by the light curtain. DO NOT mount the
One-hand Control between the light curtain and the point of operation.
Failure to comply with these instructions will result in death or serious injury.

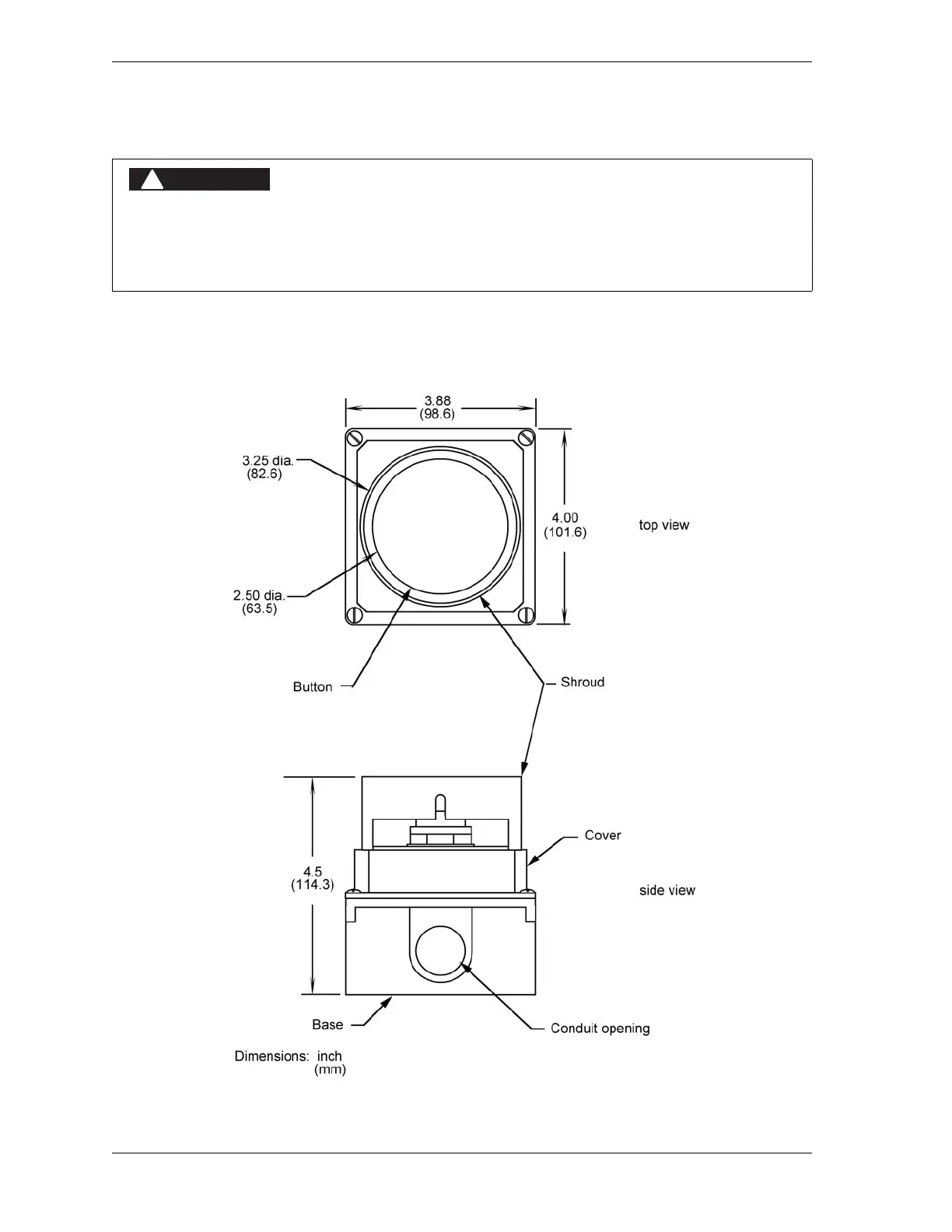

Figure 2-23. One-hand Control Switch: Mounting Dimensions
