WPC 2000 User Manual 1128500
Installation 2-45
1. Shut off power to the press and to WPC 2000.
2. Choose a mounting location on or near the press convenient to the operator. The
One-hand Control should be mounted so the operator can reach it as part of normal hand
movement after loading a part. An adjustable bracket may be necessary.
3. Mount the One-hand Control, using the tapped holes on the bottom of its metal enclosure.
Wiring a One-hand Control to WPC 2000
To wire One-hand Control, you need to make connections to both the Operator Station and to
the WPC 2000 Main Processor board. To do so, perform the following steps:
1. Turn off power to the press and to the WPC 2000.

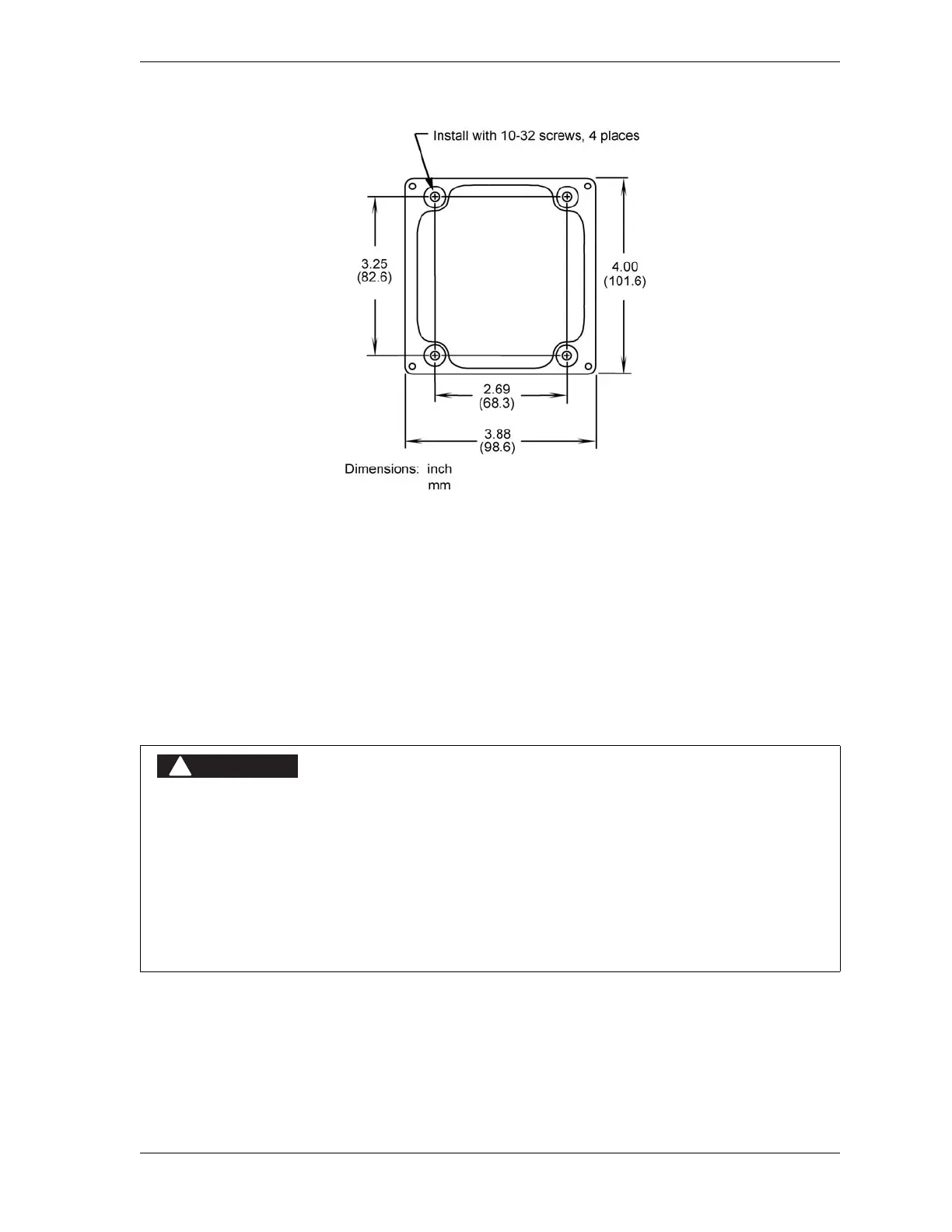

Figure 2-24. One-hand Control Switch Base: Mounting Dimensions
ELECTRIC SHOCK OR HAZARDOUS ENERGY
• Disconnect main power before installation.
• Remove all power to the press, press control, and other equipment used with the press.
• Remove all fuses and “tag out” per OSHA 1910.147 Control of Hazardous Energy (Lockout/
Tagout).
• Ensure that installation is performed by qualified personnel.
• Complete all installation procedures before connecting to the AC power source.
Failure to comply with these instructions will result in death or serious injury.
