Zebra DS8178 Product Reference Guide

9 - 2 DS8178 Digital Scanner Product Reference Guide
Connecting an RS-232 Interface
Connect the digital scanner directly to the host computer.

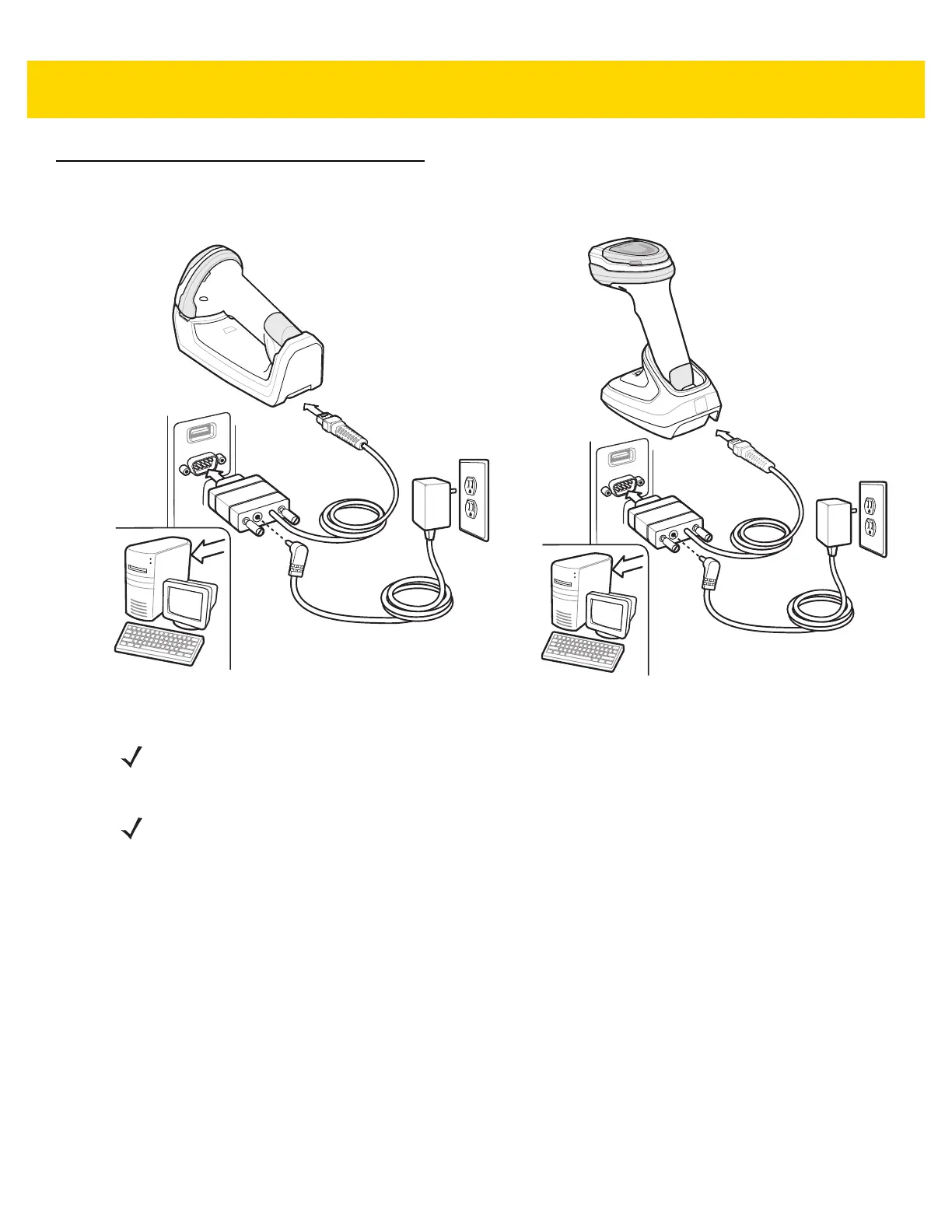

Figure 9-1 RS-232 Direct Connection
To connect the cradle with a RS-232 interface:
1. Connect the other end of the RS-232 interface cable to the serial port on the host.
2. Attach the modular connector of the RS-232 interface cable to the cable interface port on the cradle.
See Connecting the Cradle on page 1-4.
3. If required, connect the power supply.
4. Ensure that all connections are secure.
5. Pair the digital scanner to the cradle by scanning the bar code on the cradle.
6. Select the RS-232 host type by scanning the appropriate bar code from RS-232 Host Types on page 9-6.
7. To modify any other parameter options, scan the appropriate bar codes in this chapter.
NOTE Interface cables vary depending on configuration. The connectors illustrated in Figure 9-1 are examples
only. The connectors may be different from those illustrated, but the steps to connect the cradle remain
the same.
NOTE Disconnect the host cables before the power supply, or the digital scanner may not recognize the new
host.

Zebra DS8178 Specifications

General

Product color	Black
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Photo diode
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Optical sensor resolution	1280 pixels
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
PC connection	RS-232/USB
Wireless range	100 m
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Connectivity technology	Wired & Wireless
Battery life	83 h
Battery capacity	2500 mAh
Power source type	Battery

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	235.3 g
