Symbologies 12 - 73

QR Code

Parameter # 293 (SSI # F0h, 25h)

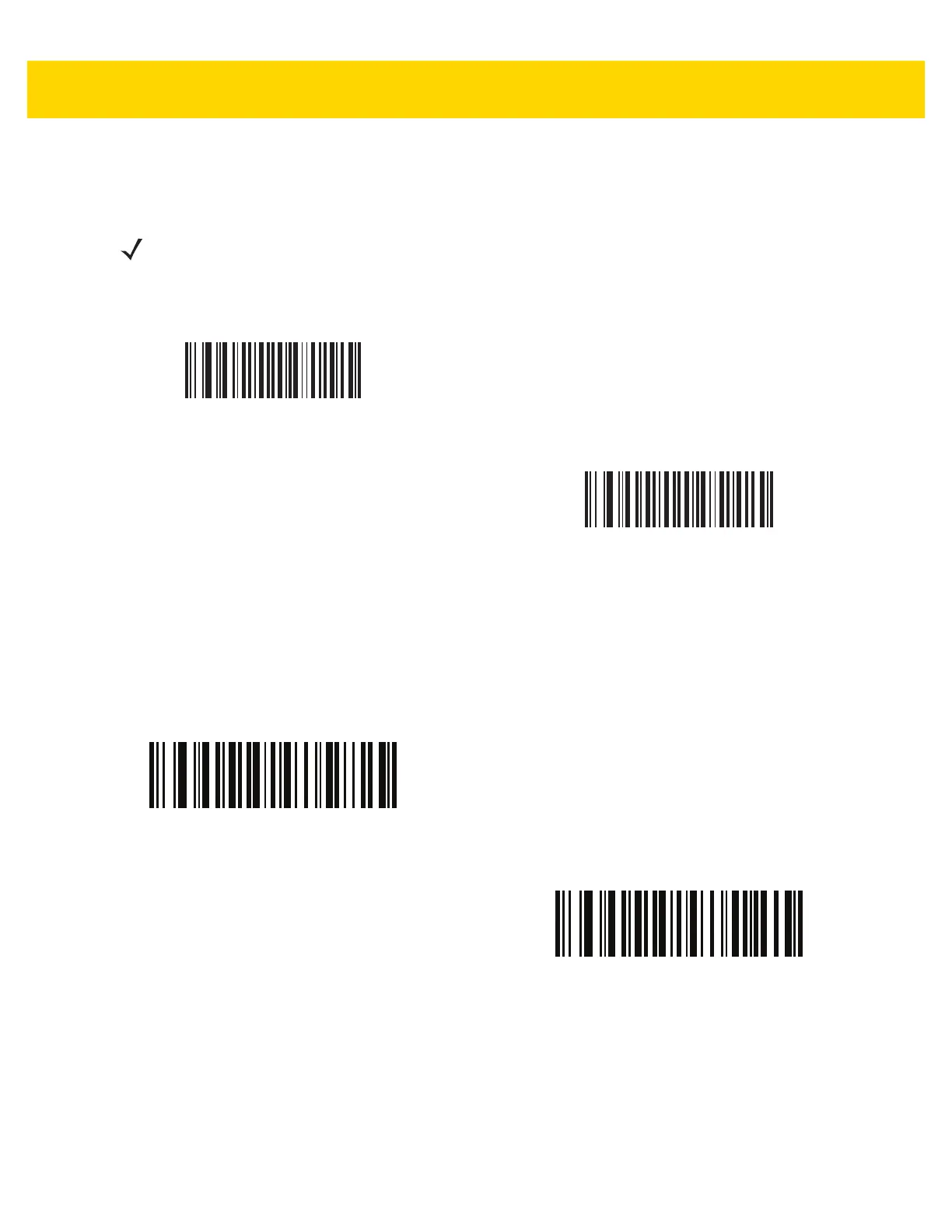

To enable or disable QR Code, scan the appropriate bar code below.

GS1 QR

Parameter # 1343 (SSI # F8h 05h 3Fh)

To enable or disable GS1 QR, scan the appropriate bar code below.

NOTE Inverse QR bar codes decode if QR Code is enabled.

*Enable QR Code

(1)

Disable QR Code

(0)

*Disable GS1 QR

(0)

Enable GS1 QR

(1)
