Zebra DS8178 Product Reference Guide

OCR Programming 15 - 3
OCR Programming Parameters

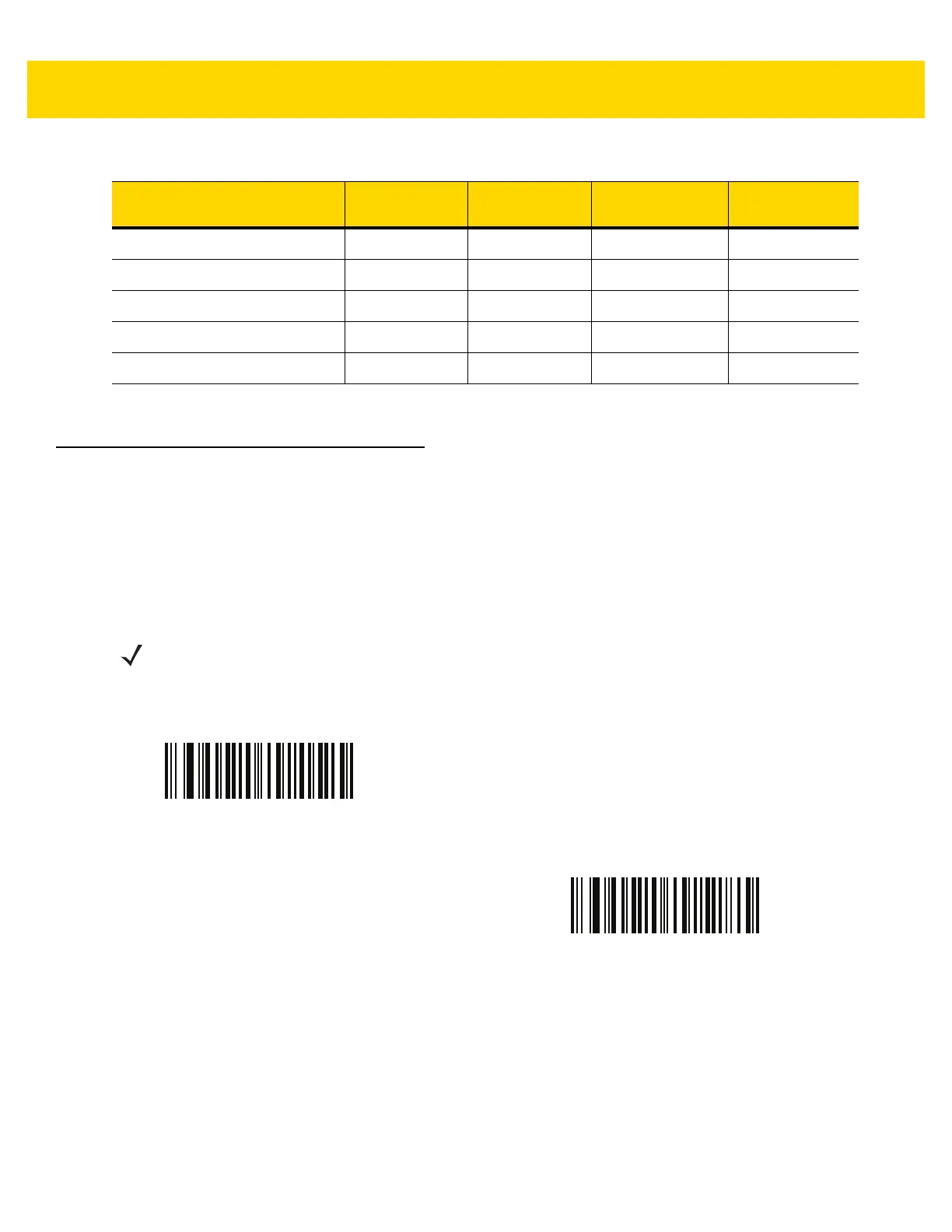

OCR-A
Parameter # 680
SSI # F1h A8h
Scan one of the following bar codes to enable or disable OCR-A.
OCR Template 547 F1h 23h 54R 15-15
OCR Check Digit Modulus 688 F1h B0h 1 15-25
OCR Check Digit Multiplier 700 F1h BCh 121212121212 15-26
OCR Check Digit Validation 694 F1h B6h None 15-27
Inverse OCR 856 F2h 58h Regular 15-32
Table 15-1 OCR Programming Default Table (Continued)
Parameter
Parameter
Number
SSI Number Default Page Number
NOTE OCR is not as secure as a bar code. To decrease OCR misdecodes and speed OCR reading, set an
accurate OCR template and character subset, and use a check digit. See OCR Subset on page 15-14 and
OCR Template on page 15-15.
Enable OCR-A
(1)
*Disable OCR-A
(0)

Zebra DS8178 Specifications

General

Product color	Black
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Photo diode
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Optical sensor resolution	1280 pixels
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
PC connection	RS-232/USB
Wireless range	100 m
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Connectivity technology	Wired & Wireless
Battery life	83 h
Battery capacity	2500 mAh
Power source type	Battery

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	235.3 g
