Data Capture 2 - 7
3. Upon successful decode, the scanner beeps and the LED flashes green. (For more information about beeper
and LED definitions, Beeper and LED Indications on page 2-1).

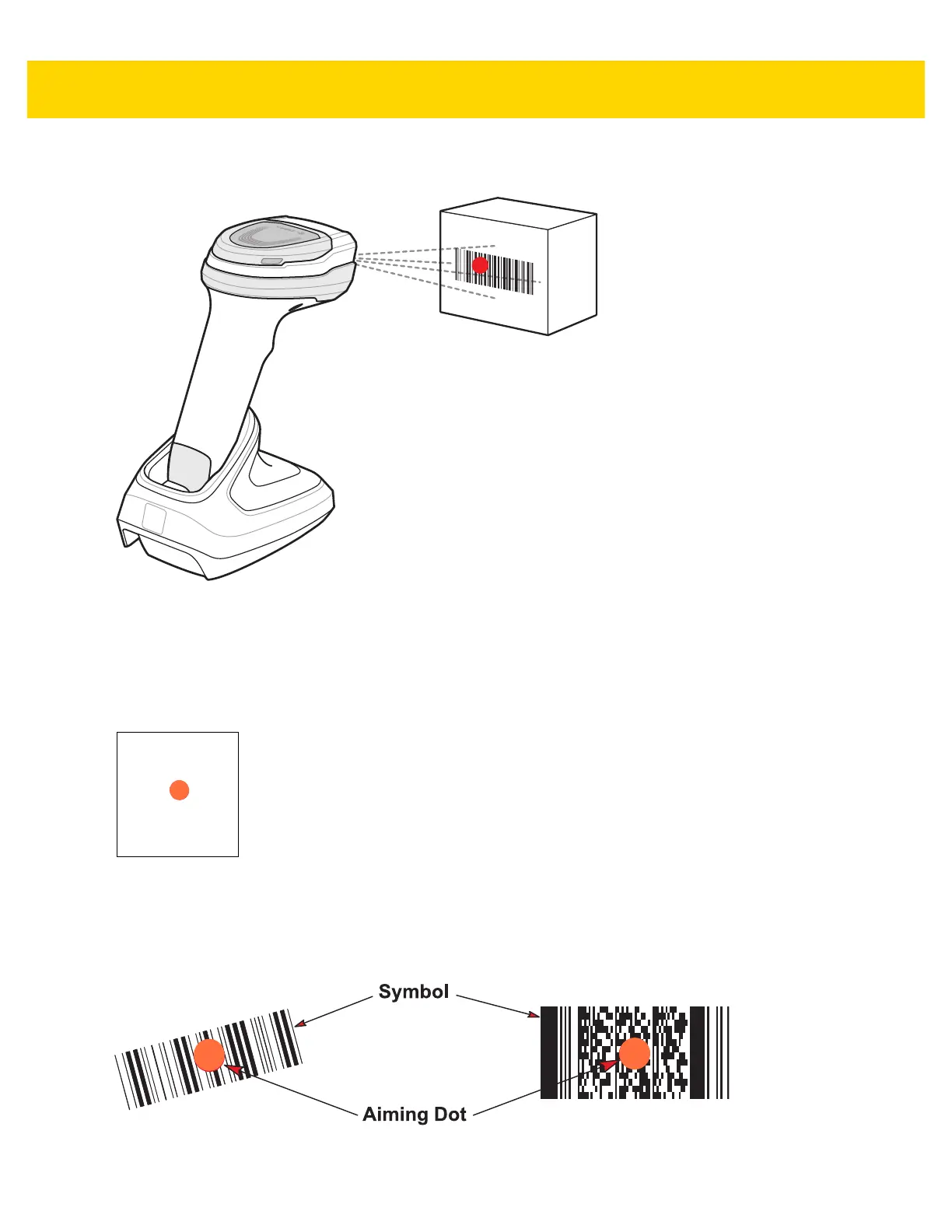

Figure 2-2 Scanning in Hands-Free Mode
Aiming with Digital Scanner
When scanning, the digital scanner projects a red LED dot which allows positioning the bar code within its field of
view. See Decode Ranges on page 2-9 for the proper distance to achieve between the digital scanner and a bar
code.
Figure 2-3 Aiming Dot
If necessary, the digital scanner turns on its red illumination LEDs to illuminate the target bar code.
To scan a bar code, center the symbol and ensure the entire symbol is within the rectangular area formed by the
illumination LEDs.
Figure 2-4 Scanning Orientation with Aiming Dot
