Zebra DS8178 Product Reference Guide

Symbologies 12 - 67
Composite TLC-39
Parameter # 371 (SSI # F0h 73h)

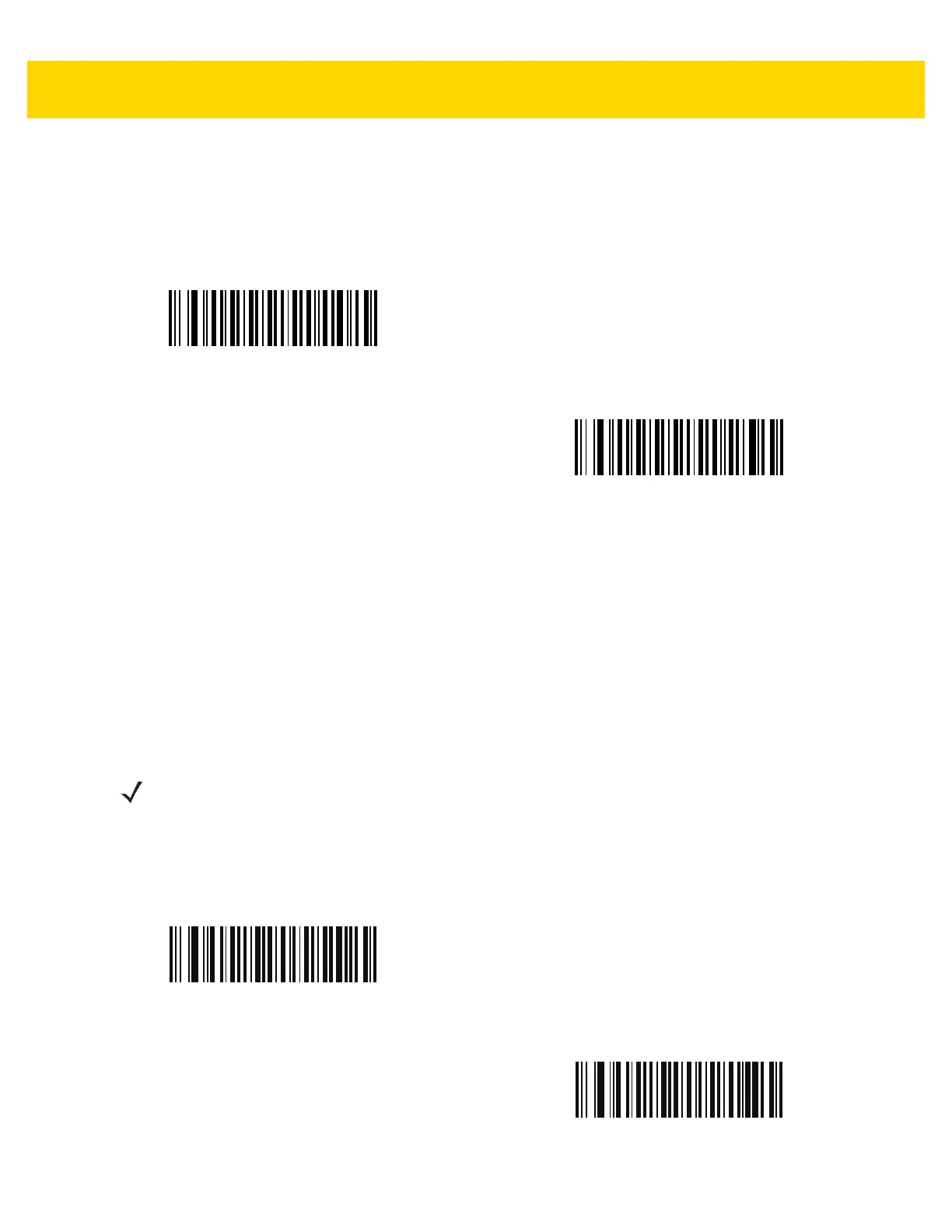

Scan a bar code below to enable or disable Composite bar codes of type TLC-39.
Composite Inverse
Parameter # 1113 (SSI # F8h 04h 59h)
This parameter sets Composite for either regular decode or inverse decode.
• Regular Only: The digital scanner decodes regular Composite bar codes only. (default).
• Inverse Only: The digital scanner decodes inverse Composite bar codes only. This mode only supports
Inverse Composite that has Databar combined with CCAB. No other 1D/2D combinations. For this parameter
to work as expected, Composite CC-A/B on page 12-66 and corresponding 1D Inverse or 1D Inverse
Autodetect ( page 12-61) and Databar must be enabled.
Enable TLC39
(1)
*Disable TLC39
(0)
To decode regular Composite, Inverse Composite must be set to Regular Only and Inverse 1D must be
set to Regular Only or Autodetect.
To decode inverse Composite, Inverse Composite must be set to Inverse Only and Inverse 1D must be set
to Inverse Only or Autodetect.
* Regular Only
(0)
Inverse Only
(1)

Zebra DS8178 Specifications

General

Product color	Black
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Photo diode
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Optical sensor resolution	1280 pixels
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
PC connection	RS-232/USB
Wireless range	100 m
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Connectivity technology	Wired & Wireless
Battery life	83 h
Battery capacity	2500 mAh
Power source type	Battery

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	235.3 g
