Zebra DS8178 Product Reference Guide

Getting Started 1 - 3
Standard Cradle

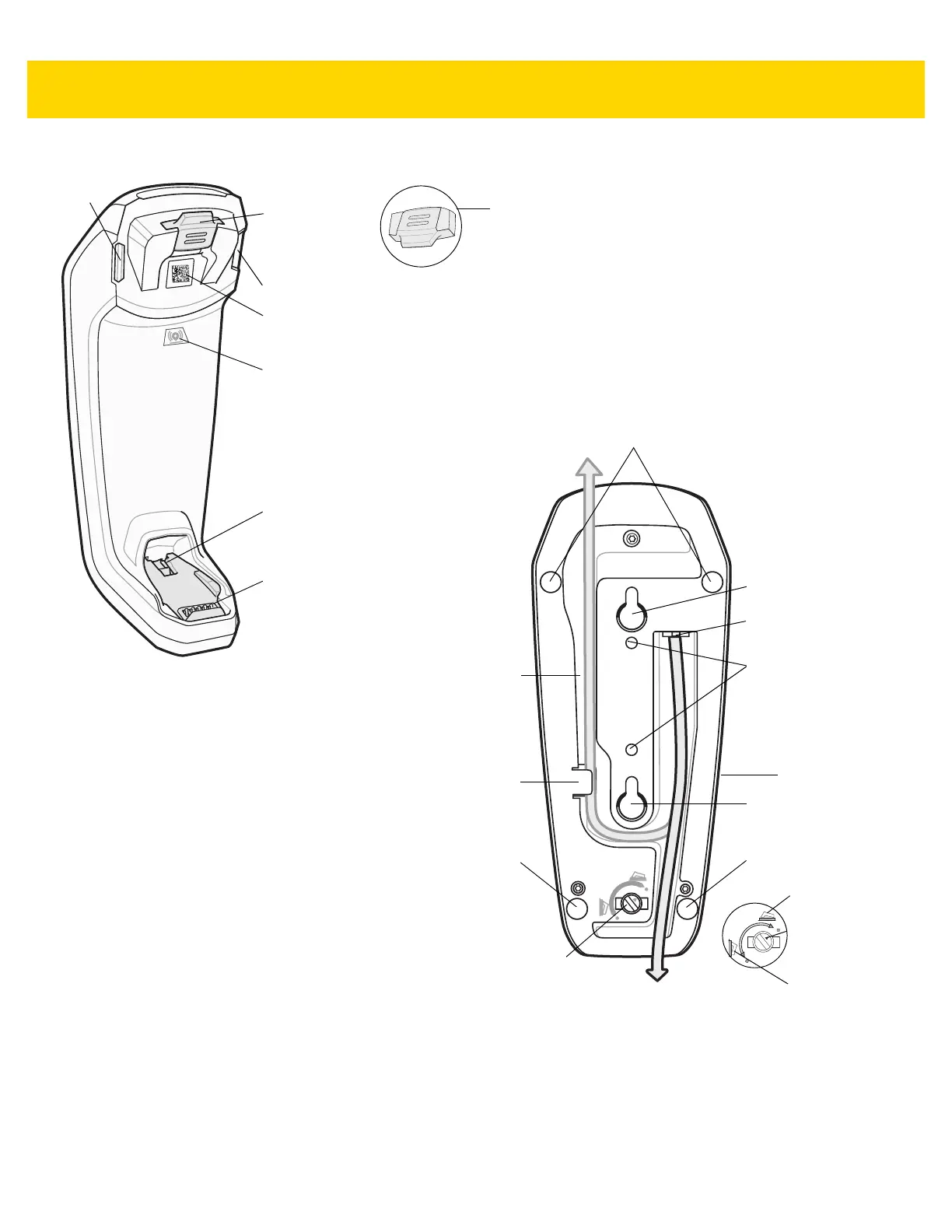

Figure 1-2 CR8178-SC (Standard Cradle) - Top and Bottom Views
Charging/
Communications
Contacts
LED
Page
Button
Removable
Scanner Latch
(vertical/mobile
cart mount
position)
LED
Pairing Bar
Code
Scanner Lock
(when converter
knob is set to
vertical mount)
Removable Scanner
Latch (horizontal
mount position)
Keyhole Mounting
Hole
Rubber Feet
Interface
Cable Groove
Interface
Cable Groove
Interface
Cable Support
Hook
Keyhole Mounting
Hole
Interface Port
Desk/Wall Mount
Converter Knob
Rubber Foot Rubber Foot
Vertical Mount
Threaded Brass
Screw Holes
(2 - M4x5 mm)
Wall or Mobile Cart
Desk
Point Triangle
Indicator
Appropriately to
Select

Zebra DS8178 Specifications

General

Product color	Black
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Photo diode
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Optical sensor resolution	1280 pixels
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
PC connection	RS-232/USB
Wireless range	100 m
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Connectivity technology	Wired & Wireless
Battery life	83 h
Battery capacity	2500 mAh
Power source type	Battery

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	235.3 g
