Zebra DS8178 Product Reference Guide

Getting Started 1 - 5
Using a DC Power Supply
The cradle can operate from host supplied power, if available. If host power is limited or not available, an external
DC power supply can be used with certain host interface cables that support a power jack. An external power
supply is recommended if fastest charging is required.
Mounting the Cradle
For detailed information on mounting the cradle, refer to the documentation included with the cradle.

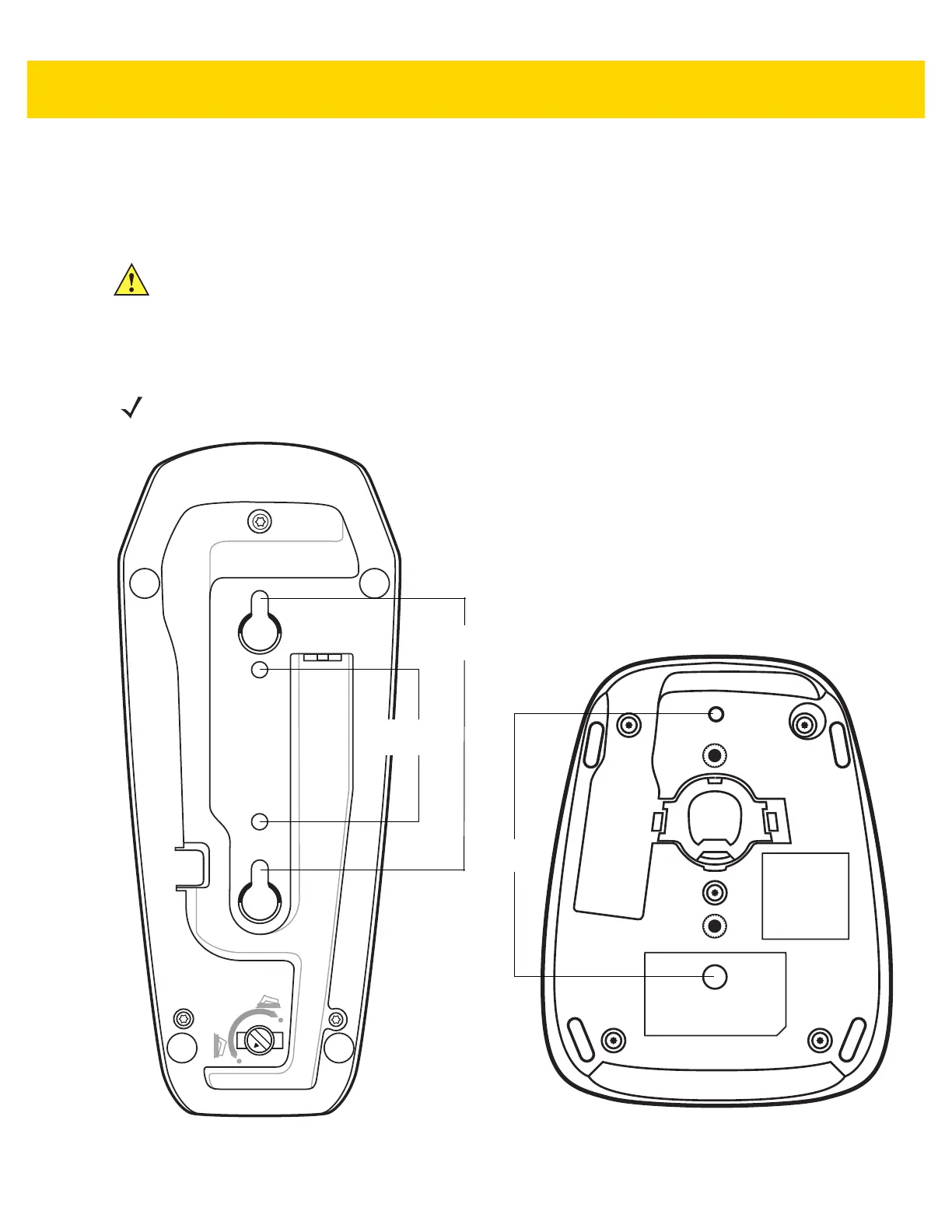

Figure 1-4 Cradle Mounting Dimensions
CAUTION Always disconnect the DC power supply BEFORE disconnecting the cable to the host end or the
cradle may not recognize the new host.
NOTE The drawings in Figure 1-4 are not to scale.
CR8178-PC (Presentation Cradle)
CR8178-SC (Standard Cradle)
45.5 mm
(1.8 in)
81 mm
(3.2 in)
45.5 mm
(1.8 in)

Zebra DS8178 Specifications

General

Product color	Black
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Photo diode
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Optical sensor resolution	1280 pixels
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
PC connection	RS-232/USB
Wireless range	100 m
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Connectivity technology	Wired & Wireless
Battery life	83 h
Battery capacity	2500 mAh
Power source type	Battery

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	235.3 g
