Zebra ZD410 User Manual

Tools
138
Configuration Report (CANCEL Self Test)
The Configuration Report diagnostic prints a set of printer and network configuration reports.
To print the configuration report, complete these steps:
1. Make sure media is loaded, the printer cover is closed, and printer power is ON.
2. If printer power is OFF, press and hold CANCEL button while turning the printer power ON. Hold
CANCEL button down until the STATUS indicator is the only indicator lit.
- or -
If printer power is ON, press FEED + CANCEL for two seconds.
3. The Printer and Network Configuration Reports (below) will be printed and the printer will return to
READY status.

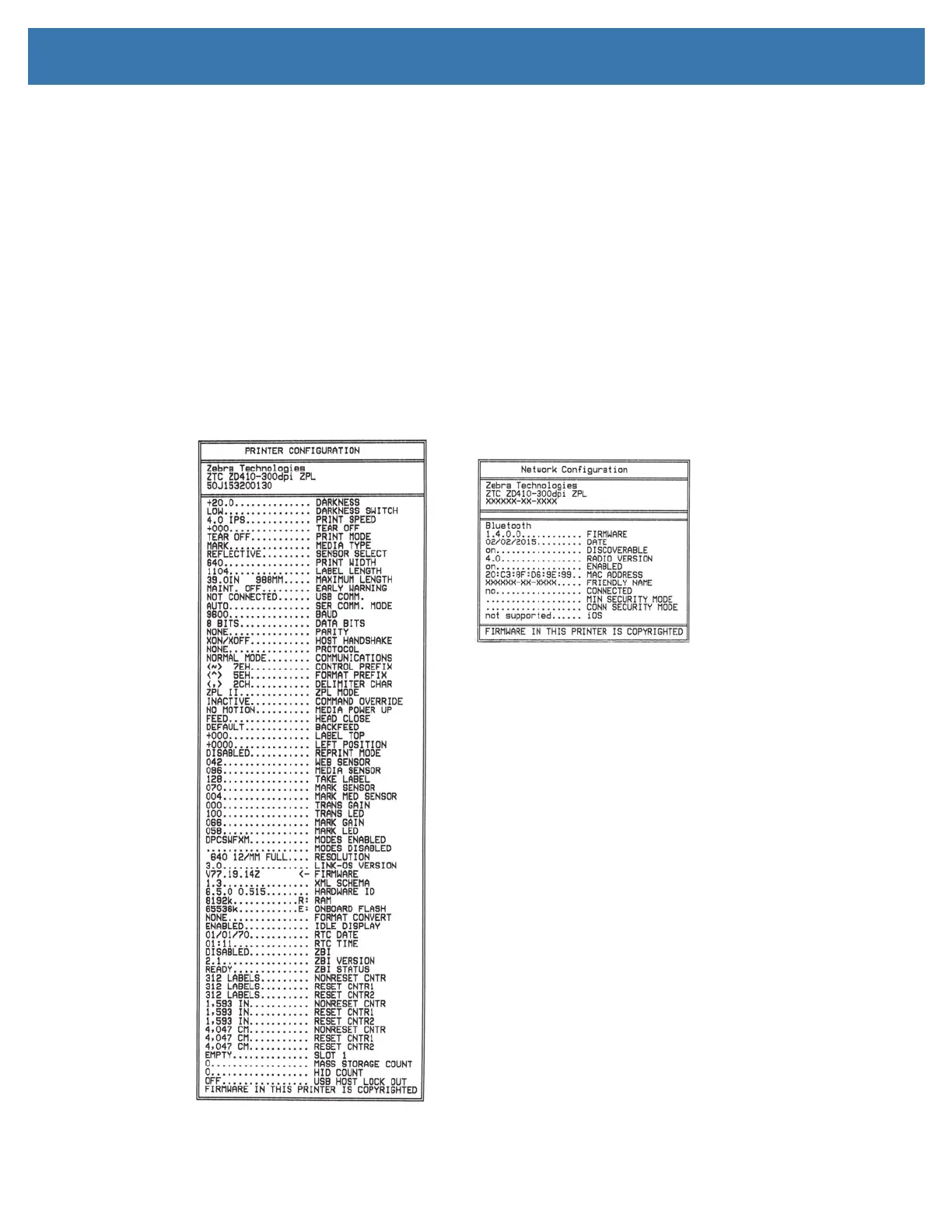

Sample Printer Configuration
Sample Network Configuration
Bluetooth LE only

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
