Zebra ZD410 User Manual

Tools
139

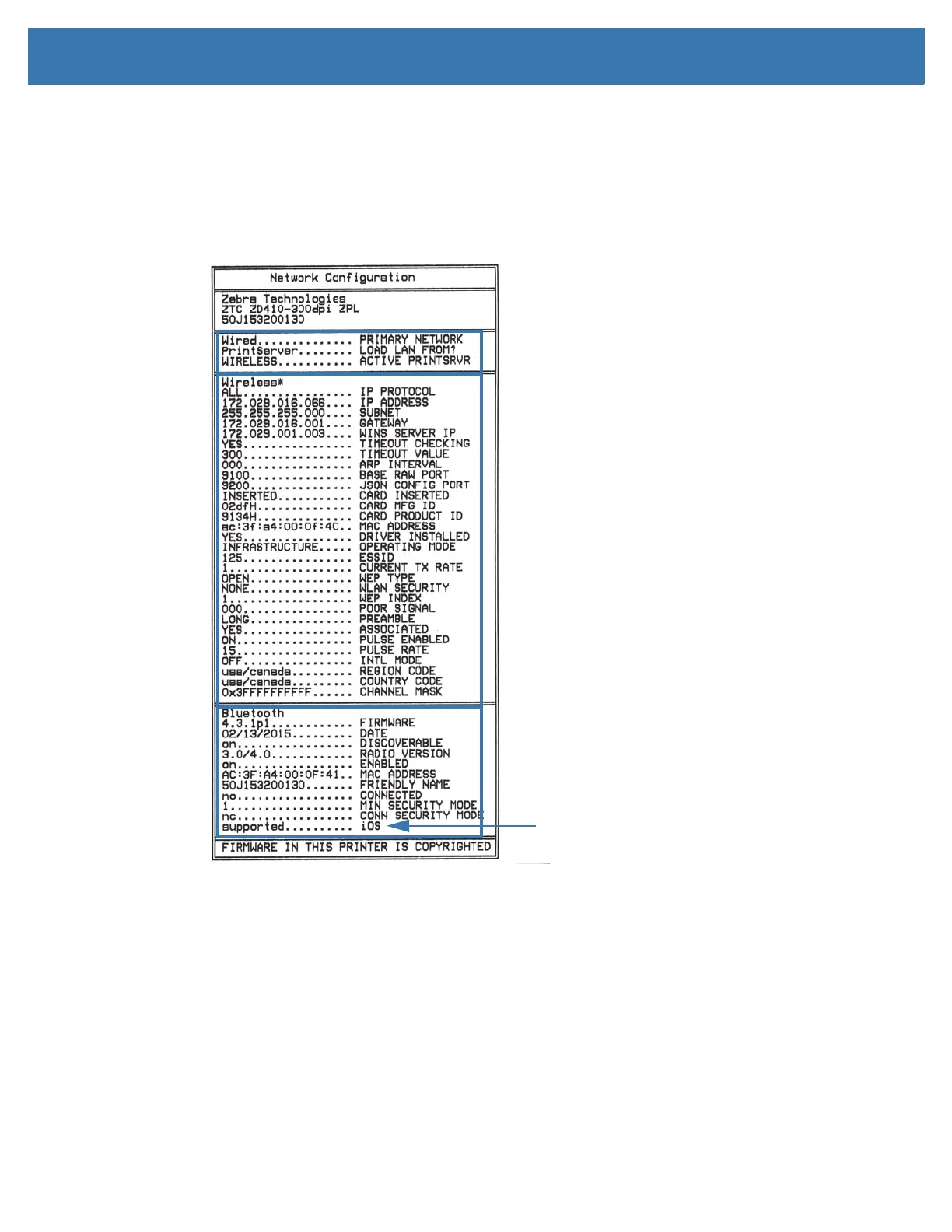

Printer Network (and Bluetooth) Configuration Report
ZD-Series printers with Wired or Wireless connectivity options installed will print an additional printer
configuration report. This information needed to establish and trouble shoot Ethernet (LAN and WLAN),
Bluetooth 4.1 and Bluetooth LE network printing. The following printout is printed with the ZPL
~WL
command.
iOS Bluetooth Support
• iOS devices have Bluetooth Classic 4.X (with 3.0 compatibility) when the Wi-Fi and Bluetooth
Classic wireless connectivity option is installed in your printer and is noted as ‘supported’ on the
bottom of the Bluetooth Configuration report.
• Some ZD series printers only have the Bluetooth LE (without Wi-Fi and classic Bluetooth). The iOS
setting is noted on the bottom of the Bluetooth Configuration report as ‘not supported’ when the
wireless connectivity option is not installed.
iOS Support Setting

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
