Zebra ZD410 User Manual

Setup
47
Using the Movable Sensor
The movable sensor is a dual function sensor. It provides transmissive (sees through media) and reflective
media sensing. The printer can use either sensing method, but not both at the same time.
The movable sensor has a center array of sensors. This provides adjustable transmissive web (gap)
sensing to positions that match legacy Zebra
®
desktop printer sensor locations and positions in between.
This also provides for use of some non-standard media variations or irregularly shaped media.
The movable sensor allows the printer to use media with black marks or notches (holes through the
media) on the back side of the media (or media liner). The sensor aligns to the middle of black marks or
notches not in the center of the media roll to avoid Web/Gap sensing array.
Adjusting the Movable Sensor for Black Marks or Notches
The black mark sensing looks for non-reflective surfaces such as black marks, black lines, notches or
holes on the back of the media which do not reflect the sensor’s near infrared light beam back to the
sensor’s detector. The sensor light and its black mark detector are next to each other under the sensor
cover.

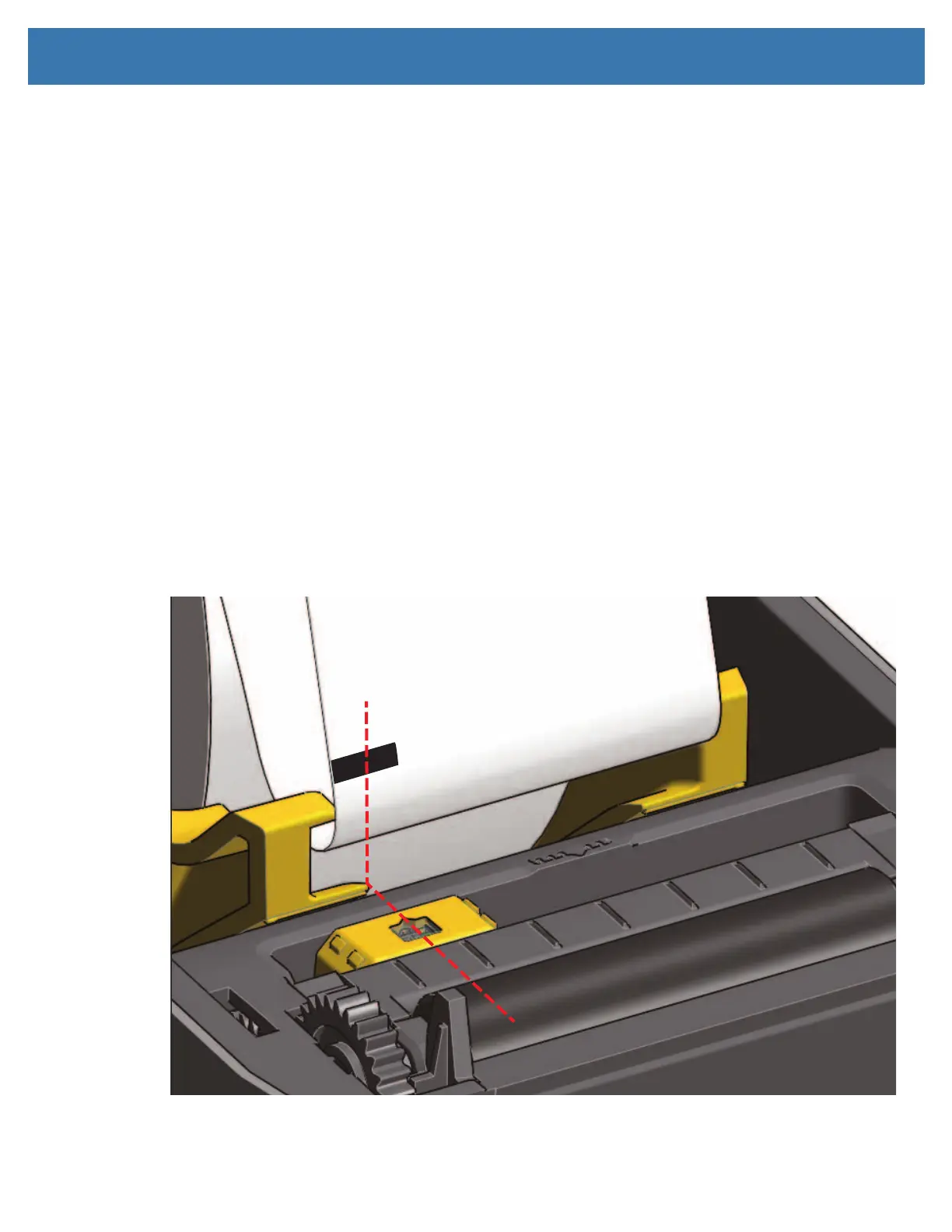

Position the movable sensor’s alignment arrow to the middle of the black mark or notch in the underside of
the media. Sensor alignment should be set as far as possible from the edge of media but where 100% of
the sensor window is covered by the mark. When printing, the media can move from side to side ±1mm
(due to media variations and edge damage due to handling). Notches cut into the side of the media can
also become damaged.

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
