Zebra ZD410 User Manual

Print Operations
89

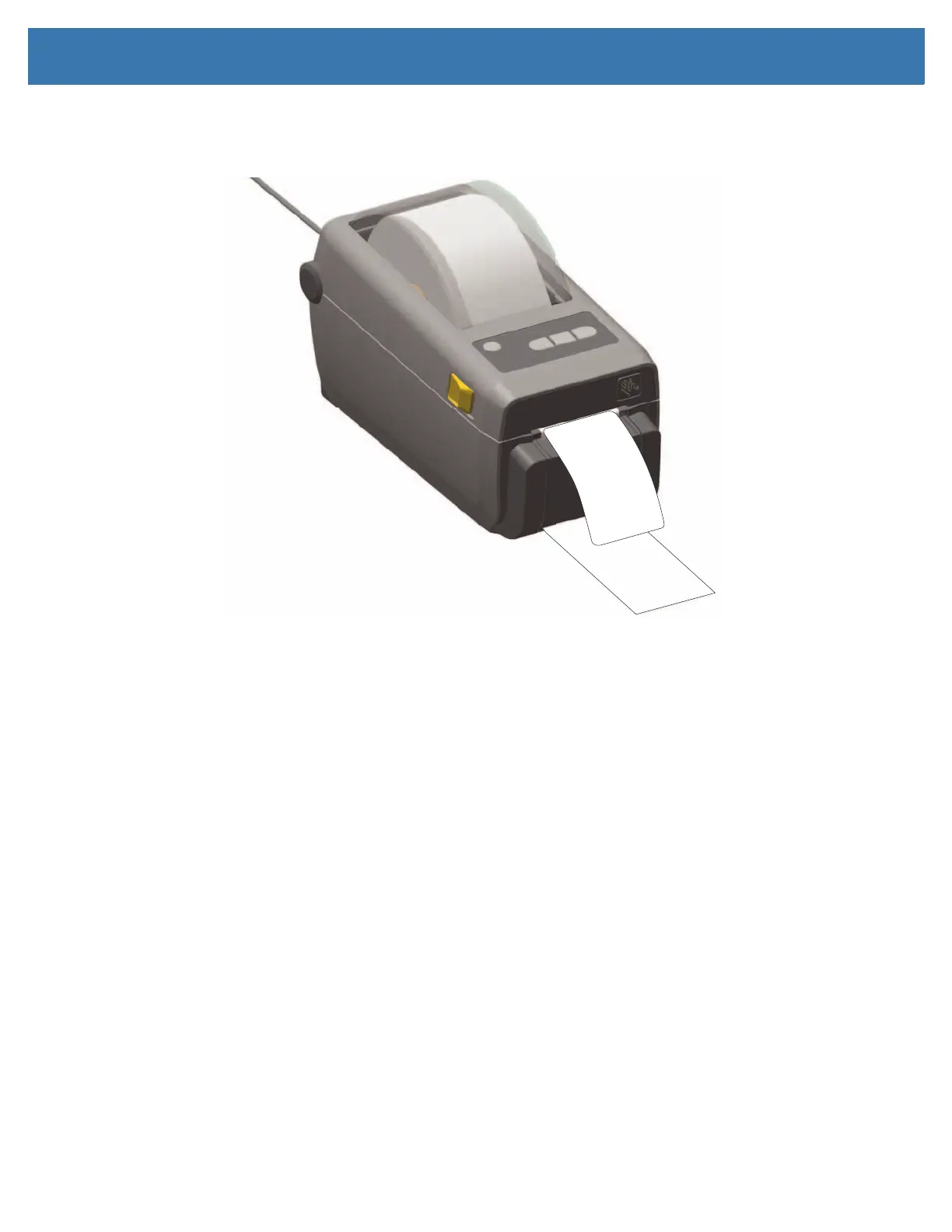

5. Press and release the Feed (Advance) button one or more times until a label gets presented for
removal. Repeat one more time and then tear the exposed liner exiting from the bottom of the label
dispenser.
6. During the print job, the printer will peel off the backing and present a single label. Take the label from
the printer to allow the printer to print the next label. Note: If you did not activate the label taken sensor
to detect the removal of the dispensed (peeled) label with software commands, the printer will stack
and eject peeled labels.

Zebra ZD410 Specifications

General

Wi-Fi	Yes
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth version	4.1
USB 2.0 ports quantity	1
Connectivity technology	Wired & Wireless
Print technology	Direct thermal
Maximum resolution	300 x 300 DPI
Maximum print height	991 mm
Maximum printing width	56 mm
Flash memory	512 MB
Internal memory	256 MB
Built-in barcodes	1D, 2D
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Display	-
Product color	Gray
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 41 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Core diameter	12.7 mm
Media thickness	0.08 - 0.305 mm
Maximum roll diameter	127 mm
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	220 mm
Width	115 mm
Height	151 mm
Weight	1000 g
