1、FRAME COMPONENT
10
CHK
ADJ
NO. PART NO.
PART NAME
QTY CAUTION
1 1224100-030000 Pin tie (Black 4.8×130) 2
2 1244100-019000 ZT250-S fuel tank spacing glue 1
3 1244100-002000 ZT250-S Side cover round rubber 6
4 1240300-007000 HJ125-6 Battery rubber gasket 1
5 1244100-061000 ZT250 anti-water rubber of frame 2
6 1250205-038000 GB70.2M5×12 (stainless steel) 2
7 Chain abrasive brick 1
8 1224200-008000 ZT310-R cable plastic staple 1

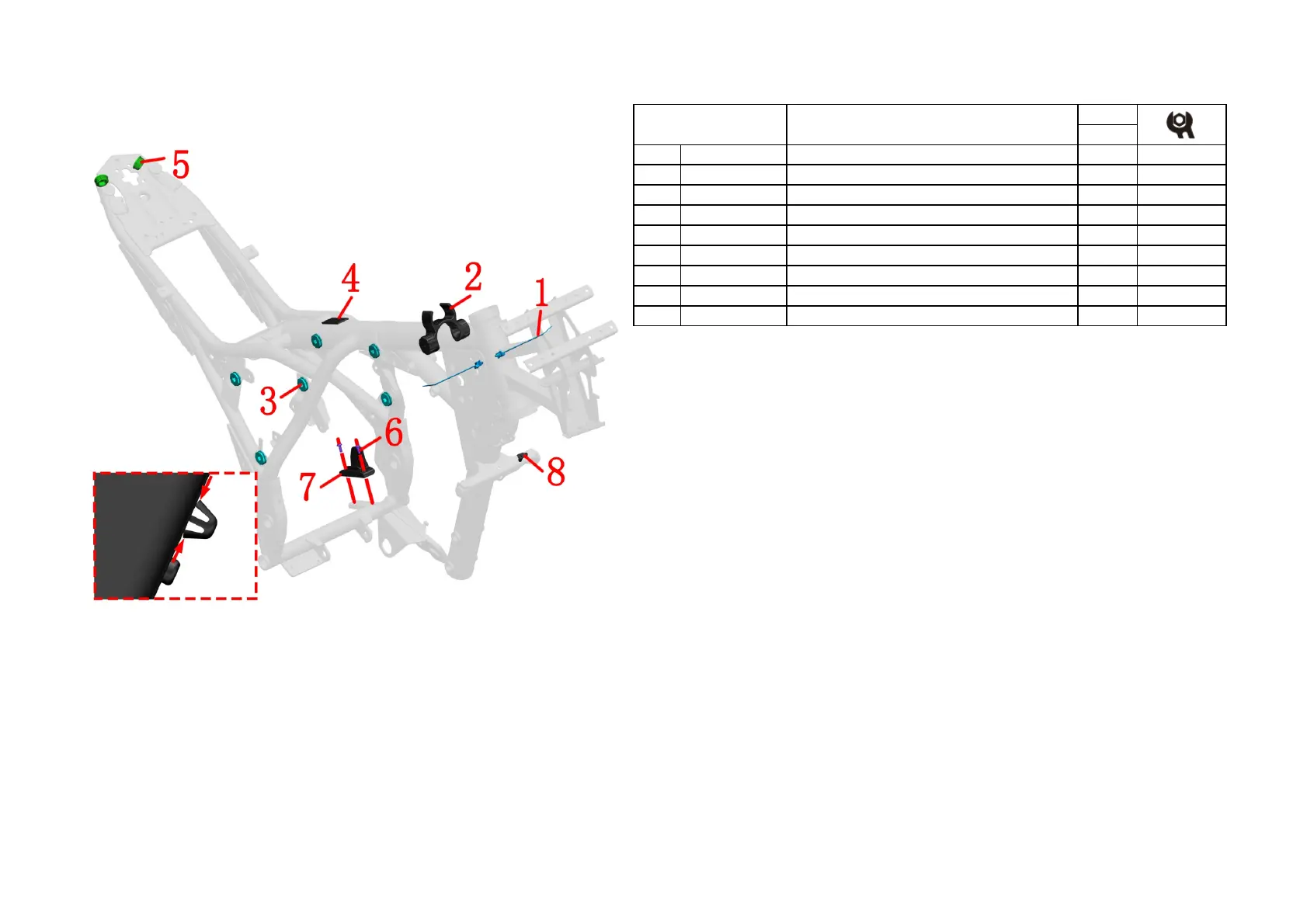

Fig.3 FRAME&ELECTRONIC PARTS
COMPONENT
Frame plastic parts
PROCEDURE:
●Inner fuel tank ficx glue cushion
Use both hands to hold the two ends cylinder parts of the inner fuel tank limited glue cushion ⑵ and should
push it out.
● Side cover cushion
Remove the side cover cushion ⑶ with your hand directly.
●Battery cushion
Put off the battery cushion ⑷directly by hand.
●Frame waterproof rubber plug
Remove the frame waterproof rubber plug ⑸ with your hand directly.
●Wear block
Use a 3# hexagon socket to remove the 2 bolts ⑹ and then remove the wear block ⑺.
●Cable plastic staple
Use a pair of pliers to clamp in the direction of the arrow with a little force and then push thecable plastic
staple⑻ out of the frame.
CAUTION：
●It must be dismantled them first, such as the cushion, fuel tank cover, inner fuel tank, sider cover, tail dress
and so on.
●All parts should be correctly assembled.
●The plug strap ⑴ is a non-detachable structure and it is not recommended to cut it directly. It is difficult to
remove the broken portion of the buckle that is forcibly removed from the frame triangular reinforcing plate.
