4、REAR WHELL COMPONENT
30
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1184200-030000 ZT310-R sub-mud board adapter cable (L=2000) 1
2 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 8
3 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5+φ14×1.5 7
4 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 7
5 1020242-265021 ZT310-R1 rear sub-mud aluminum alloy bracket 1
6 1224200-106000 ZT310-R1 rear auxiliary mud board retaining plate 1
7 1250105-137093 GB5789M6×16 (environmental color) 4
8 1250501-007093 GB93φ8 (environmental color) 5
9 1270300-039000 HJ125-6 rear license plate bracket 1
10 1251100-101000
Non-standard bolt M6×12 (304 stainless steel)
6
11 1250303-010093 GB6177.1M6 (environmental color) 2
12 4024200-036000 Rear section of ZT310-V rear mud plate iron support 1
13 4024200-035000 Front section of ZT310-V rear mud plate iron support 1
14 1250503-021093 GB97.1φ8 (environmental color) 2

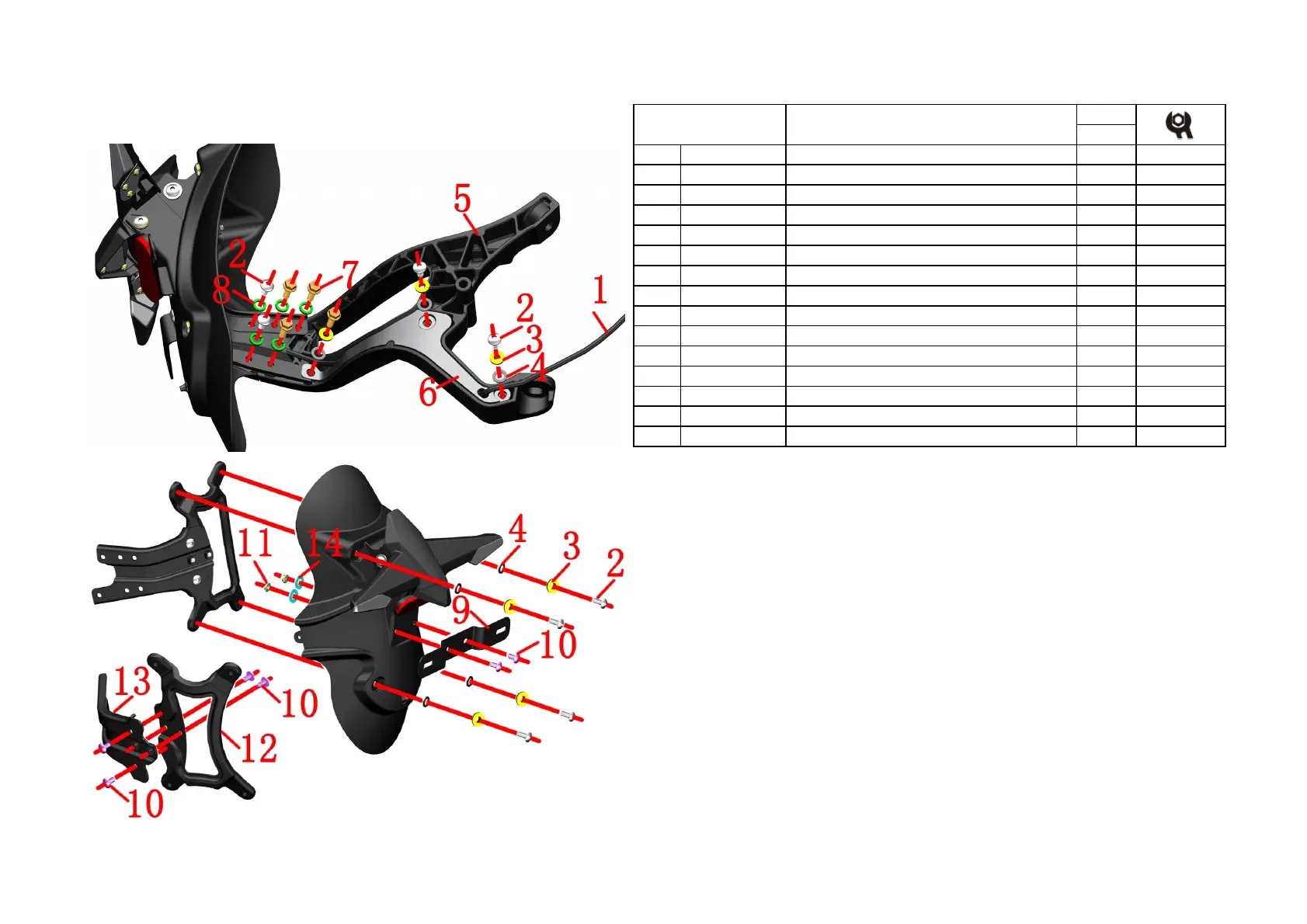

Fig.8 Rear wheel, swinging
arm assembly
Rear auxiliary mud plate component 2
PROCEDURE:
●Retaining plate
Use 4# inner hexagon to remove bolt ⑵ and use 10# sleeve to remove bolt ⑺, remove the flange bushing ⑶
the rubber pad⑷,and finally remove the retaining plate⑹.
●Aluminum alloy bracket
Use a 10# sleeve to remove 3 bolts and bolts ⑺ and use a 4# inner hexagon to remove 2 bolts ⑵, then
remove 5 pcs of spring washer⑻, Separate the aluminum bracket from the rear fender assembly.
●Back license plate bracket assembly
Fix the two bolts ⑽ at the license plate bracket ⑼ with 4# inner hexagon; remove the nut ⑾ with a 10#
sleeve, and remove the license plate bracket ⑼ and bolt ⑽.
●●Iron bracket
Use 4# inner hexagon to remove 4 bolts ⑵, take off the flanging bush ⑸, rubber pad ⑹; finally take off the
iron bracket assembly.
Use 4# inner hexagon to remove 4 bolts ⑽, and separate the rear part ⑿ and the front part ⒀ of the iron
bracket.
CAUTION:
●Do not pull the cable hard when removing the vice fender connecting cable.
●When reassembling, first check if there is any pressure on the wire to prevent short circuit when tightening
the bolt.
