7、FRONT FORK COMPONENT
81
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251112-001093
M6×16 Hexagon flange bolts (color Zinc)
1
2 1274100-007000
ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
1
3 1244100-004000
ZT250-S Flanging bushing buffer
1
4 1184200-100000
ZT310 dual USB charging cable
1
5 1251300-063093
Plywood M6×11×15(color Zinc)
1

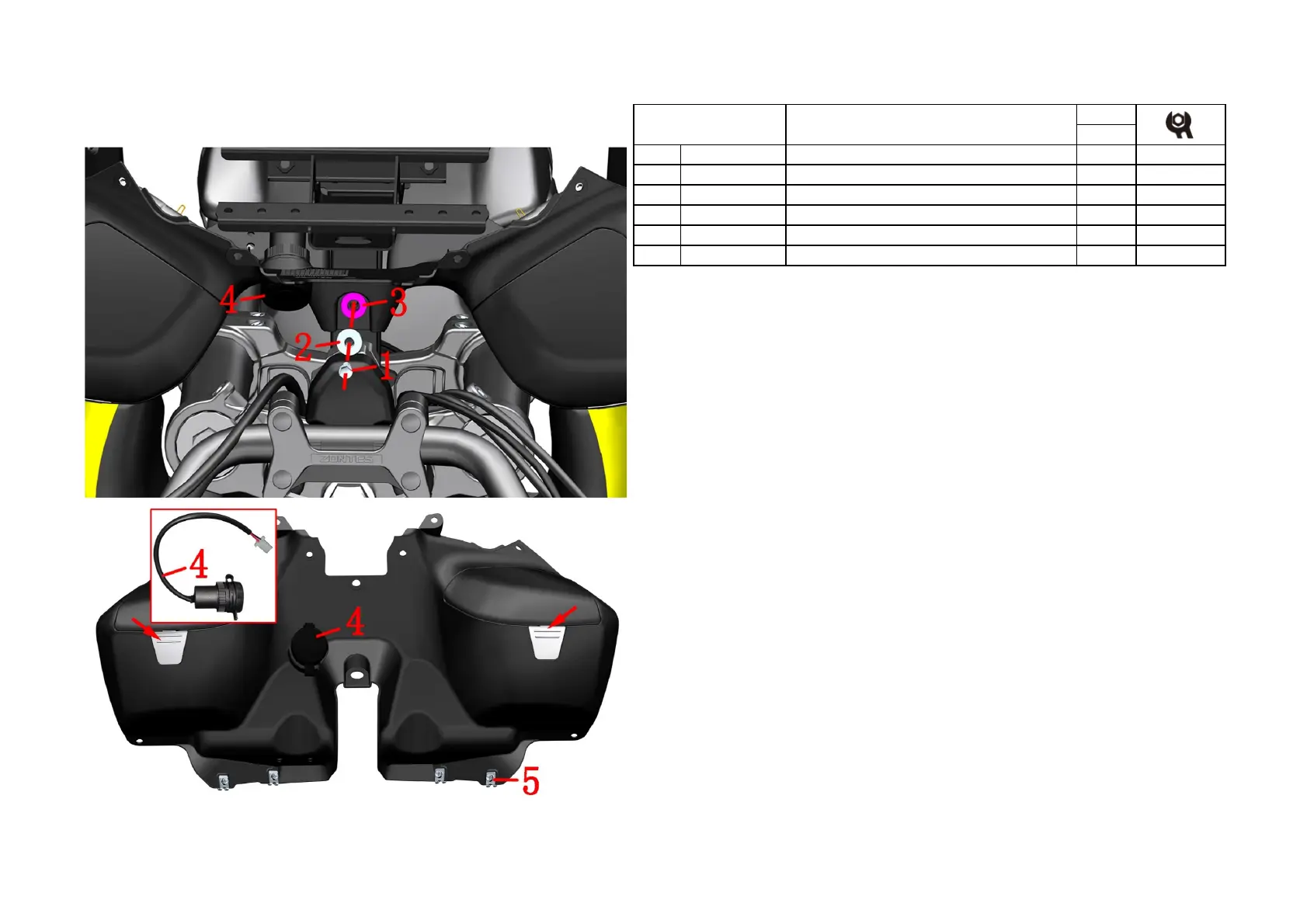

PROCEDURE:
●Surrounding components
Unplug the connector of the USB charging cable and use an 8# sleeve to remove the bolts⑴ , remove the
bush ⑵, and then remove the rear interior components from the bike.
Unscrew the USB charging cable ⑷ comes with the nut and remove it.
Remove 4 pieces of splint ⑸.
Press the beginning of the storage box on both sides indicated by the arrow, and open the lid to facilitate the
next step of disassembling the storage box.
●USB function test
Connect 12V power supply and plug in the load,output voltage 4.5～5.5V，current1.5～1.8A for qualified.
CAUTION:
●Do not pull the cable directly when pulling the plug.
Fig.21FRONT FORK
COMPONENT
Storage box, rear surrounding components 1
To Next Page
