7、FRONT FORK COMPONENT
80
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251112-001093
M6×16 Hexagon flange bolts (color Zinc)
7
2 1274100-007000
ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)
6
3 1244100-004000
ZT250-S Flanging bushing buffer
6
4 1186200-016000
ZT310T-M windshield motor controller(limited time)
1
5 1274300-070021
ZT350-VX windshield motor controller bracket
1
6 1251100-102000
Non-standard bolt M6×16 (304 stainless steel)
2
8 1274200-203000
ZT310-X1 windshield base
1
1
PROCEDURE:
●Electrical devices
First, unplug the motor controller.
Remove the 2 bolts ⑴ at a with an 8# sleeve, remove the bushing ⑵and remove the controller⑷. Remove
the cushion rubber⑶ from the controller.
Use a 8# sleeve remove the bolt ⑴ at bracket⑸，then take off the bracket⑸.
Remove the 2 bolts⑹ with a 4# inner hexagon, and then remove the lower bracket ⑺ of the instrument.
Remove 4 pieces of cushion rubber ⑶ from the windshield base ⑻.
CAUTION:
●Do not pull the cable directly when pulling the plug.

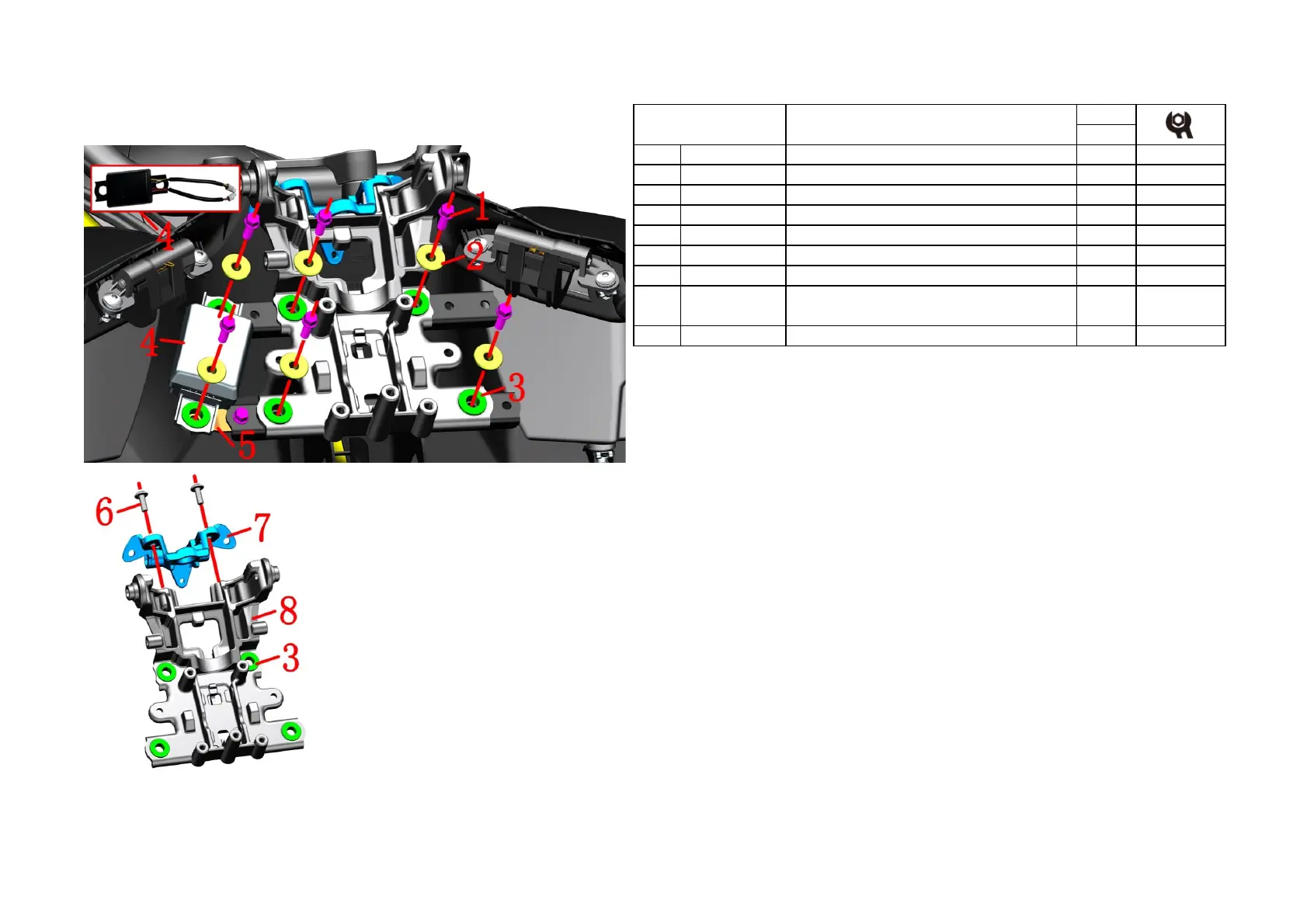

Fig.20FRONT FORK
COMPONENT
Remove windshield base
7 4024200-096051
ZT310-VX adjustable instrument lower bracket(dark
grey matte)
To Next Page
