7、FRONT FORK COMPONENT
79
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1244200-074000 ZT310-T windshield motor sheath 1
4 1244200-075000 ZT310-T windshield front rocker buffer rubber 4
5 1184200-074000 ZT310-T windshield motor 1

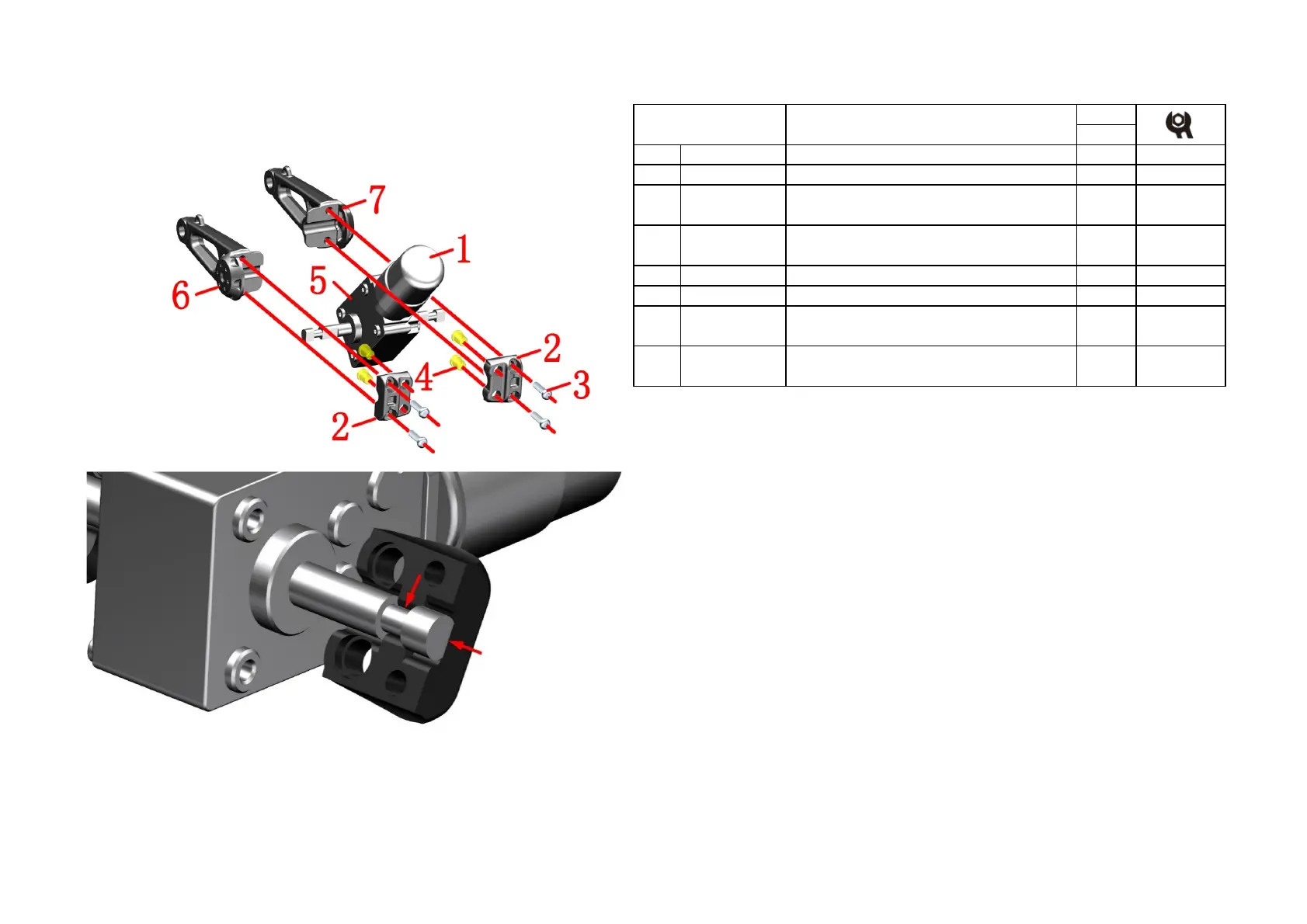

Fig.19FRONT FORK
COMPONENT
Windshield motor sub-assembly
PROCEDURE:
●Windshield motor parts
Remove the motor sheath⑴ and 4 pieces of cushion rubber⑷.
Grab the lower left rocker arm⑹. Remove the 2 screws⑶ with a Phillips screwdriver and remove. Remove
the rocker arm clamp⑵.
Grab the lower right rocker arm⑺. Remove the 2 screws⑶ with a Phillips screwdriver and remove. Remove
the rocker arm clamp ⑵.
CAUTION:
● Do not pull the cable directly when pulling the plug.
●Pay attention to the limit plane and limit groove of the motor and rocker clamp when reassembling.
2 4024200-081051
ZT310-T mounting plate of head cover ( lower rocker
(dark gray matte)
2
3 1250201-046000
GB818 cross recessed pan head screw M4×16
(environmental color)
4
6 4024200-079051
ZT310-T lower left rocker of head cover (dark gray
matte)
1
7 4024200-080051
ZT310-T lower right rocker of head cover (dark gray
matte)
1
To Next Page
