4、REAR WHELL COMPONENT
35
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
2 1250305-009091 GB6187.1 M12×1.25(White Zinc) 2
3 1114300-004000 ZT350-VX Rear shock absorber 1
1 1251112-020000
GB5187 non-standard bolt M12×1.25×153(10.9
garde/dacromet)
1
4 1251112-019000
GB5187 non-standard bolt M12×1.25×85(10.9
garde/dacromet)
1

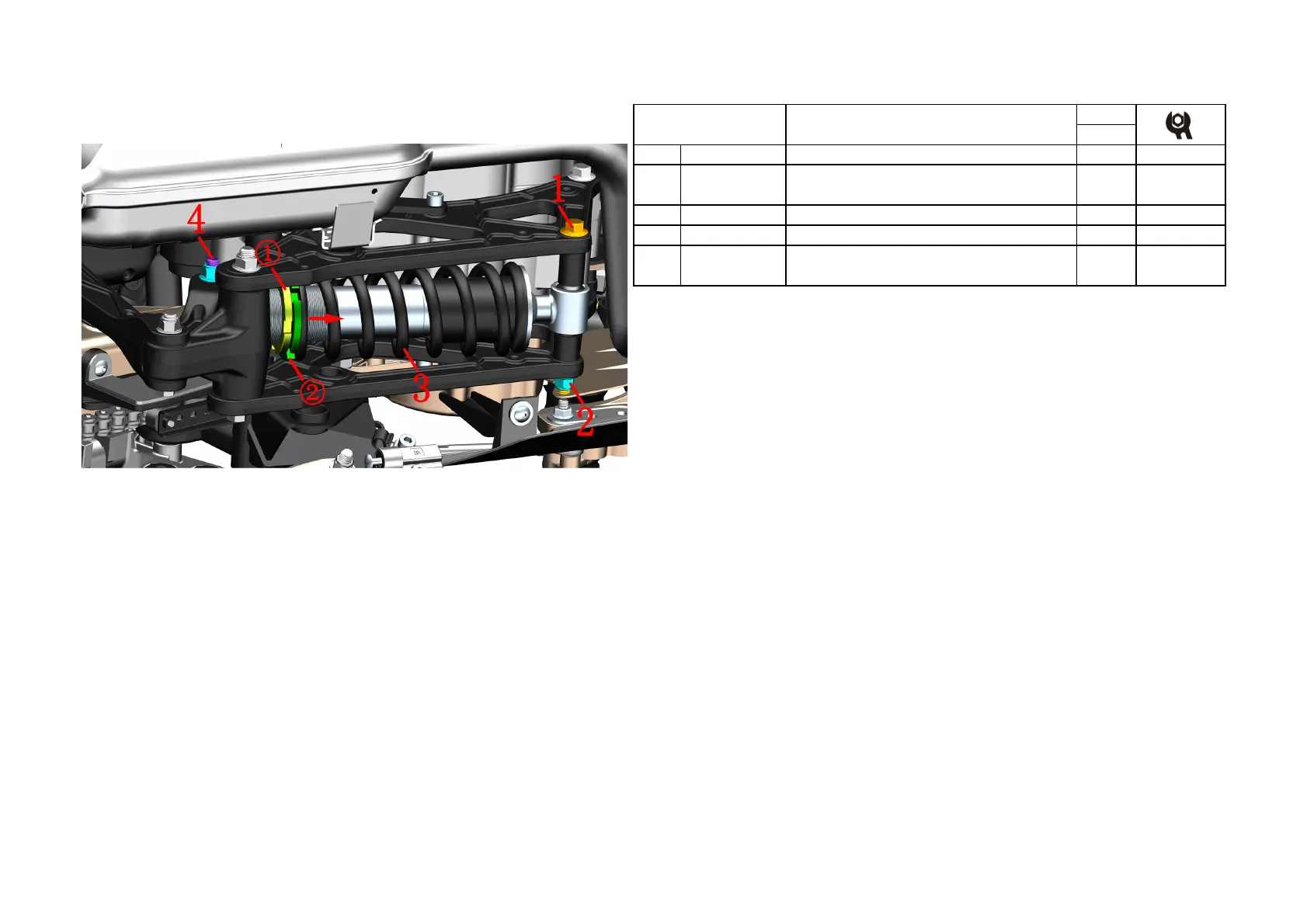

Fig.13 Rear wheel, swinging
arm component
Rear shock absorber
PROCEDURE:
●Rear shock absorption
Tilt the vehicle to the left with the side support as the fulcrum, and support the muffler back pressure bag
with a firm stool to keep the rear wheel off the ground. Tie the front disc brake handle with a tie to prevent
the car from running forward. Support the whole vehicle firmly before proceeding to the next step.
One person uses 14# sleeve to hold the head of bolt⑴ or ⑷respectively, and one person uses 17# sleeve to
remove nut⑵). Remove the rear shock absorber⑶ from the vehicle.
●Adjust the soft and hard shock absorption
Loosen the adjusting nut ① with a hook wrench, then screw the adjusting nut ②, adjust ② in the direction
of the arrow, compress the damping spring, and then the damping becomes hard, otherwise it becomes soft.
Lock the adjusting nut ① after it is adjusted properly. It is recommended to adjust reasonably. Too soft or
hard will affect the driving experience.
CAUTION:
●The rear shock-absorbing connecting rod plate must be disassembled in advance.
●Use suitable tool to support the motorcycle. Avoid accidents caused by falling down. Single person operate
it is prohibited.
