5、FOOT PEDAL COMPONENT
46
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
2 1274200-310000 ZT310-VX gear shifter Lever rocker Arm (Dark Grey)
3 1264100-006000 ZT250-S Pedal circlip
4 1274100-012000 ZT250-S Pedal pin
5 1264100-003000 ZT250-S front left foot pedal torsional spring
6 1274300-068000 ZT350-VX front foot support (dark gray)
7 1244200-114000 ZT310-VX front left foot pedal rubber mat

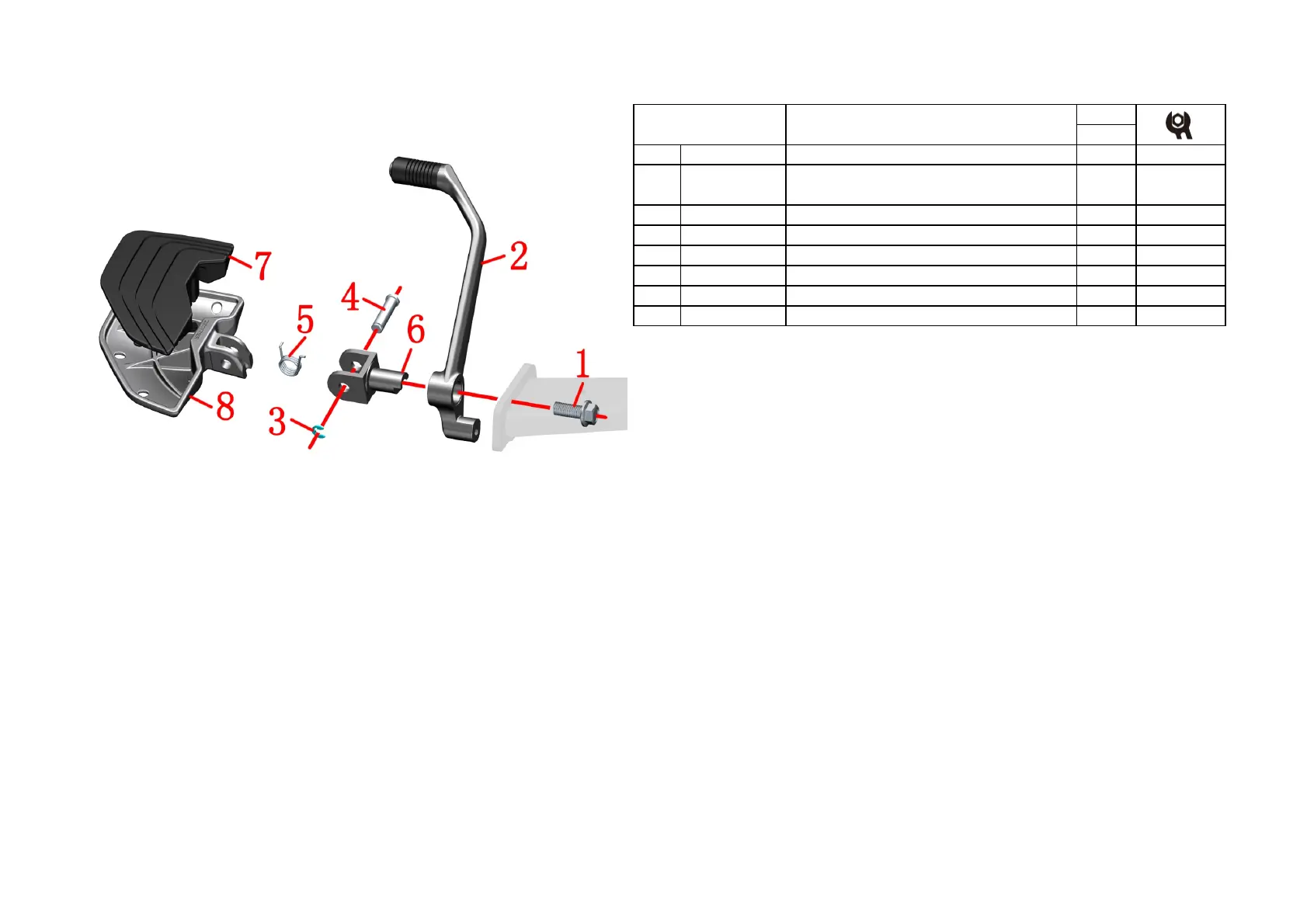

Fig.5 FOOT PEDAL
COMPONENT
Front left footrest component
PROCEDURE:
●Front left foot pedal assembly
Remove the bolt, bushing and bolt (1) at the end of the shift lever according to the previous steps of
"adjustment of the installation position of the front left foot pedal".
Remove the shift lever (2) and foot pedal assembly.
● left foot pedal assembly
Disassemble the left foot pedal assembly according to the previous disassembly steps of the right foot pedal
assembly.
CAUTION:
●The boss of the support shall be aligned with the mounting hole on the pedal support before assembly
●The foot pedal torsion spring pay attention to the installation direction.
1 1250105-278093
GB5789 M10×1.25×25 (10.9 grade environmental
protection color)
1
To Next Page
