7、FRONT FORK COMPONENT
70
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-188000 ZT310-VX Windshield 1
2 1251100-102000
Non-standard bolt M6×16 (304 stainless steel)
6
3 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
6
4 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 6
5 1224200-189000 ZT310-VX windshield upper left pressure block 1
6 1224200-190000 ZT310-VX windshield upper right pressure block 1
7 1244200-116000
Windshield lower pressure block rubber pad
2
8 1264100-006000
10 4024200-099051
ZT310-VX lower left pressure block(dark grey matte)
1
11 4024200-098051
ZT310-VX lower right pressure block(dark grey matte)
1
9 1274200-030000
ZT310-X rotated shaft of lower press block of wind
shield
4

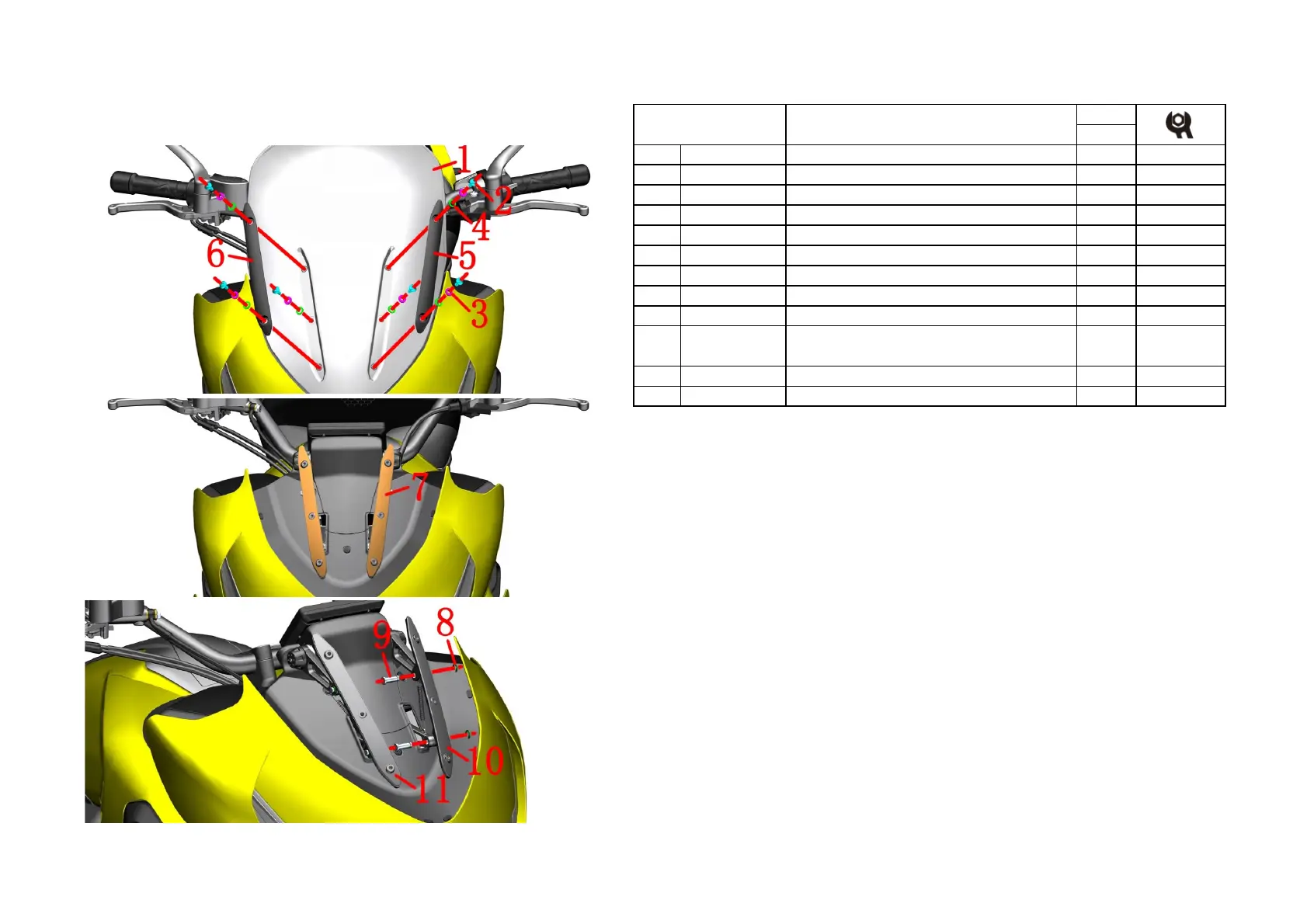

Fig.10 FRONT FORK
COMPONENT
Windshield components 1
PROCEDURE:
●Windshield Components
Remove the 2 bolts ⑵ on the left, respectively take off the bushing ⑷ and the rubber pad ⑷ and the upper
left pressure block ⑸ of the windshield. Remove the upper right pressure block ⑹ of the windshield
according to the above steps. Hold the windshield (1) and then remove the bolt (2) under the upper pressure
block, remove the bushing (3) and the rubber pad (4) and then remove the windshield.
Remove the pressure block cushion ⑺.
●Windshield lower pressure block assembly
Hold the lower left pressing block ⑽ and use a tool to push out the circlip ⑻, and then remove the rotating
shaft ⑼. Remove the lower left pressing block ⑽.
Remove the right pressure block ⑾ according to the above steps.
CAUTION:
●The windshield should be protected from scratches during disassembly.
●The circlip is small, please keep it well during disassembly and prevent it from falling into the vehicle.
●You can search "ZT310-VX Headlight Replacement Video" in the assembly video to watch the detailed video
tutorial.The disassembly is the same,only the apperarance of individual parts is different.
