5、FOOT PEDAL COMPONENT
44
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1251112-002093 M6×30 Hexagon flange bolts (color Zinc) 1
4
1250301-020093 GB6170M6 (environmental color) 1
5
1274200-035194 ZT310 front fender liner(Black Zinc) 1
7
1250301-018093 GB6170 M6-LH(color Zinc ) 1

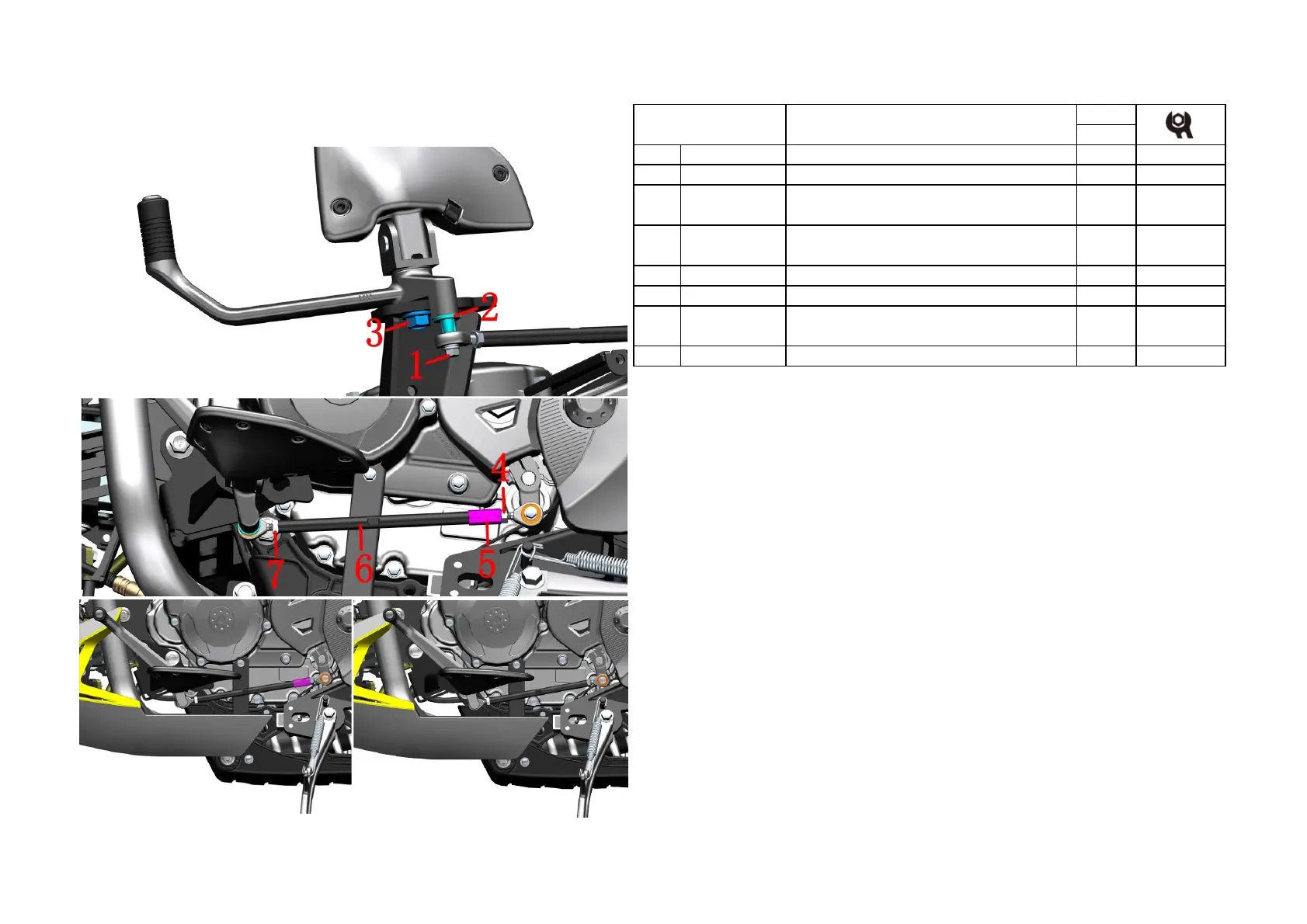

Fig.3 FOOT PEDAL
COMPONENT
Front left pedal mounting position adjustment
2 1251700-059093
Flanging bushingφ6.4×φ9×8＋φ18×2(environmental
color)
1
3 1250105-278093
GB5789 M10×1.25×25 (10.9 grade environmental
protection color)
1
6 1274100-041000
ZT250-S shift lever adjusting screw φ10×150(Black
Zinc)
1
PROCEDURE:
●Move front left pedal back
Remove according to the steps of removing the shroud.
Remove according to the steps of removing the shroud.
Use a 10# open-end wrench to loosen the nut ⑷, bushing ⑸, screw ⑹ and nut ⑺.
After grasping the shift lever firmly, use an 8# Torx wrench to remove the bolt⑴and remove the bush⑵. Use
a 14# Torx wrench to remove the bolt⑶ and install a hole in the rear of the front left pedal assembly.
Assemble the bolt⑴, bushing⑵and bolt⑶.
Remove the bushing⑸, assemble the nut ⑷, screw ⑹ and nut ⑺, adjust the shift lever to the proper
position, and then tighten the nut ⑷ and nut ⑺. There is no need for a bushing ⑸ to install a hole in the
back.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of gear shift rod should be ajusted to a suitable range. Otherwise the riding experience would be
influenced.
