5、FOOT PEDAL COMPONENT
48
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 1
3 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 2
4 1250305-009091 GB6187.1 M12×1.25(White Zinc) 2
5 4064300-027000 ZT350-VX front foot tread bracket 1
2 1251112-020000
GB5187 non-standard bolt M12×1.25×153(10.9
garde/dacromet)
2

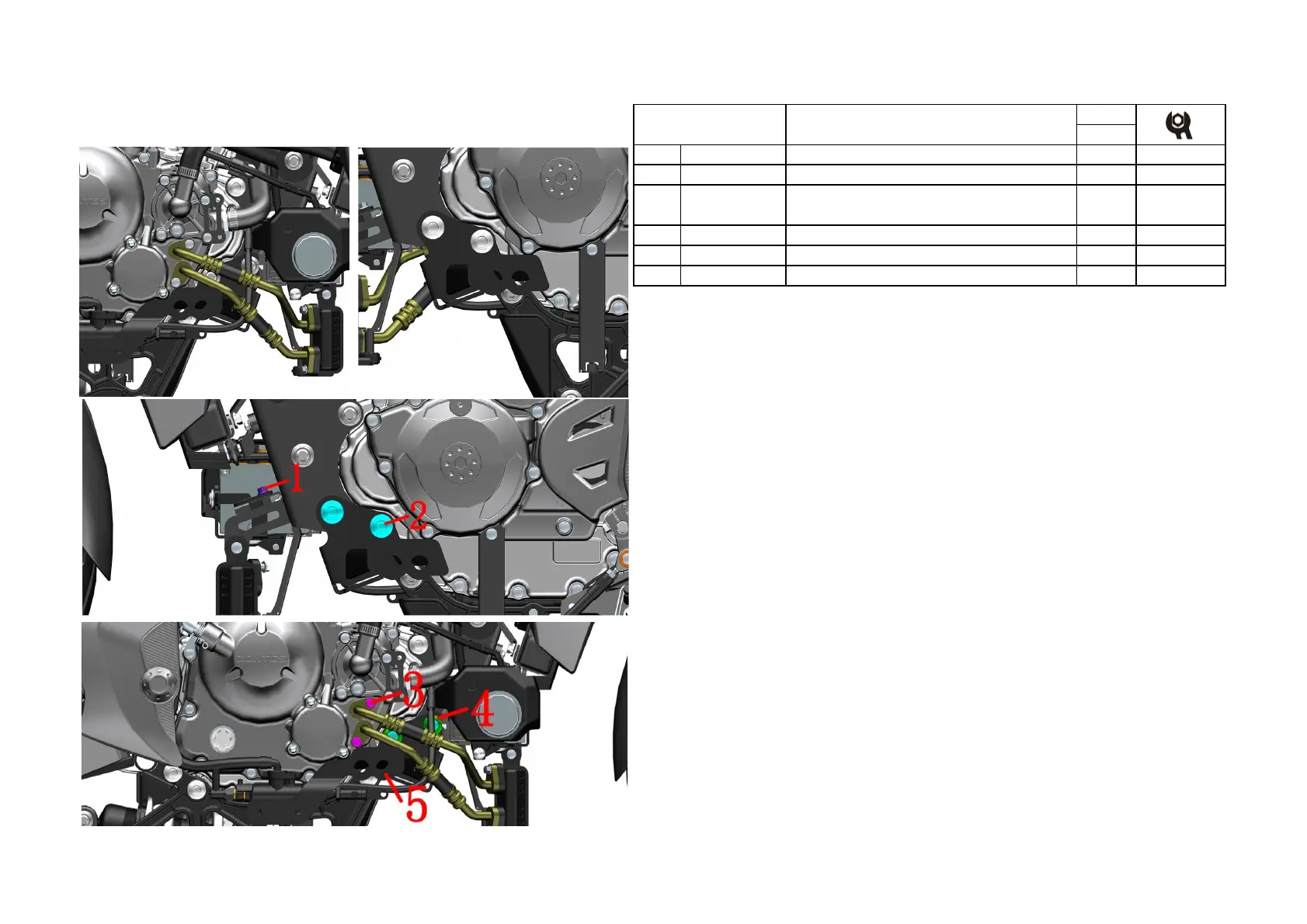

Fig.7 FOOT PEDAL
COMPONENT
Front footrest bracket
PROCEDURE:
●Front footrest bracket
First, remove it by referring to the steps for removing the fairling and the right bracket of the fairling. Follow
the steps to remove the muffler assembly to remove. Refer to the previous steps to remove the left and right
pedal assemblies to remove. Remove it as shown in Figures 1 and 2.
Use an 8# sleeve to remove the bolts⑴ above the right hydraulic control unit bracket. Tilt the vehicle to the
left and fix it firmly, then use an 8# sleeve to remove the 2 bolts⑶. Note that a small amount of oil will leak
from the oil pipe at this time, and pull out the two oil pipes. Note that when there is an O-ring at the oil pipe,
be sure to check whether it is damaged. It is recommended to replace a new 9.8×2.4 O-ring. After fixing the
head of the bolt⑵ with a 14# sleeve, remove the two nuts⑷with a 17# sleeve, hold the front pedal bracket⑸
firmly, pull out the bolt⑵ and remove the pedal bracket. Screw the 2 bolts⑶ back to the engine to straighten
the vehicle.
CAUTION:
●If too much oil flows out after removing the bolt (3), it needs to be replenished in time.
