7、FRONT FORK COMPONENT
74
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000
Non-standard bolt M6×12(304 stainless steel)
4
2
1250205-040095 GB70.1 inner hex bolt M8×16(color Zinc) 4
Fig.14 FRONT FORK
COMPONENT
Headlight assembly 3
PROCEDURE:
●Headlight assembly

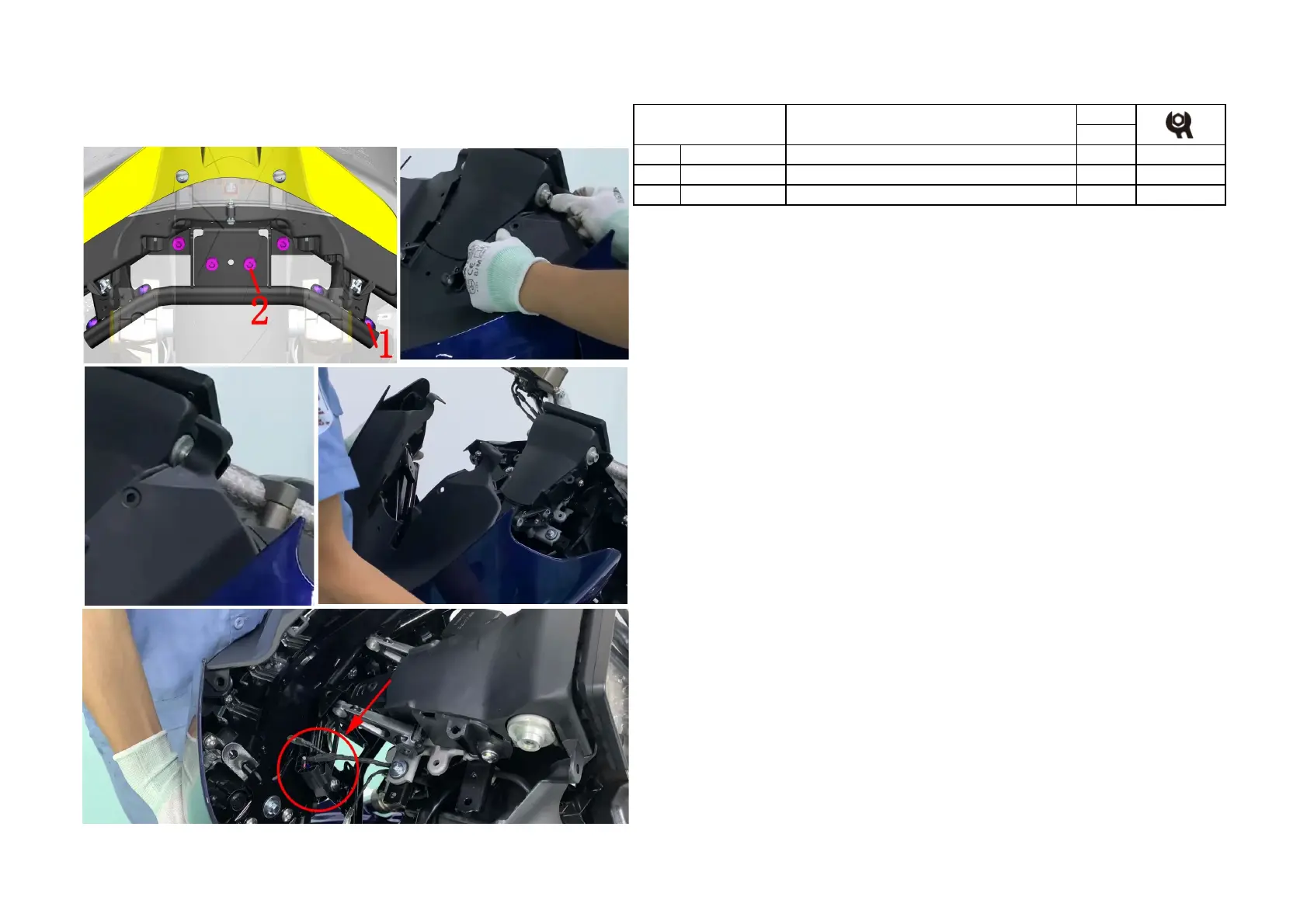

Use 4# inner hexagon to remove the 4 bolts ⑴ on both sides from under the head; use 6# inner hexagon to
remove the 4 bolts in the middle part ⑵; as shown in Figure 1.
As shown in Figure 2, grasp the head of the windshield decoration cover with one hand, grasp the middle
part with one hand and slowly pull outwards with both hands. After releasing the buckle, pull the heads on
both sides and bypass the boss on the windshield motor support, as shown in Figure 3. Shown.
Grasp both sides of the headlight assembly of the headlight cover and pull it forward for a certain distance;
unplug the cable plug of the headlight before removing the headlight assembly of the headlight cover.
CAUTION:
●You can search "ZT310-VX Headlight Replacement Video" in the assembly video to watch the detailed video
tutorial.The disassembly is the same,only the apperarance of individual parts is different.
●The parts should be protected during the disassembly process to prevent damage to the paint surface.
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.
