2、FRAME & ENGINE COMPONENT
16
CHK
ADJ
NO. PART NO.
1 1251112-002093 M6×30 Hexagon flange bolts (color Zinc) 1
2 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 1
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 1
4 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 4
5 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 4
6 1250305-009091 GB6187.1 M12×1.25(White Zinc) 2
8 1274200-091000 ZT310 water pipe clamp(φ27) 1
9 1244200-071000 ZT310-V engine outlet pipe 1
10 1050958-007000 ZT350 EFI high voltage line 1
7 1251112-020000
GB5187 non-standard bolt M12×1.25×153(10.9
garde/dacromet)
2
PROCEDURE:
●Oil cooler
It is recommended to cover the front pedal support with waterproof and oil-resistant plastic cloth, and then
remove the two bolts⑸ on the right side with 8# sleeve and pull out the two oil pipes.
Remove the three bolts⑷ above the oil cooler with 8# sleeves. Pull out the oil cooler assembly for a certain
distance and remove the bolt⑷ fixing the hydraulic control unit support.
●Radiator middle trim cover
Remove the bolt⑴) at the bottom of the middle trim cover with 8# sleeve, and remove the gasket⑵ and
buffer glue⑶.
●Front pedal support assembly
Fix the head of bolt⑺ with 14# sleeve on the left side and remove nut⑸ with 17# sleeve on the right side.
After grasping the front pedal support assembly, remove the bolt⑺ and remove the pedal support assembly.
●Left side of engine
It is recommended to use a 8# ring wrench with a 72 tooth ratchet wheel corner to remove the bolts⑸ of the
intake manifold. Or loosen the clamp at the air outlet of the air filter and the clamp between the throttle valve
body and the intake manifold; And unplug the high-pressure oil pipe, fuel injector and external pressure
sensor.
Move the hoop⑻ upward by about 30mm with hoop pliers, and then pull out the engine end of the water
outlet pipe⑼. Pull the high-voltage wire⑽ up and out. Unplug the plugs of exhaust pipe and cylinder head
water temperature sensor.
CAUTION：
●The waste oil needs to be collected and returned to qualified institutions. It is forbidden to dump and
pollute the environment and the source of water.

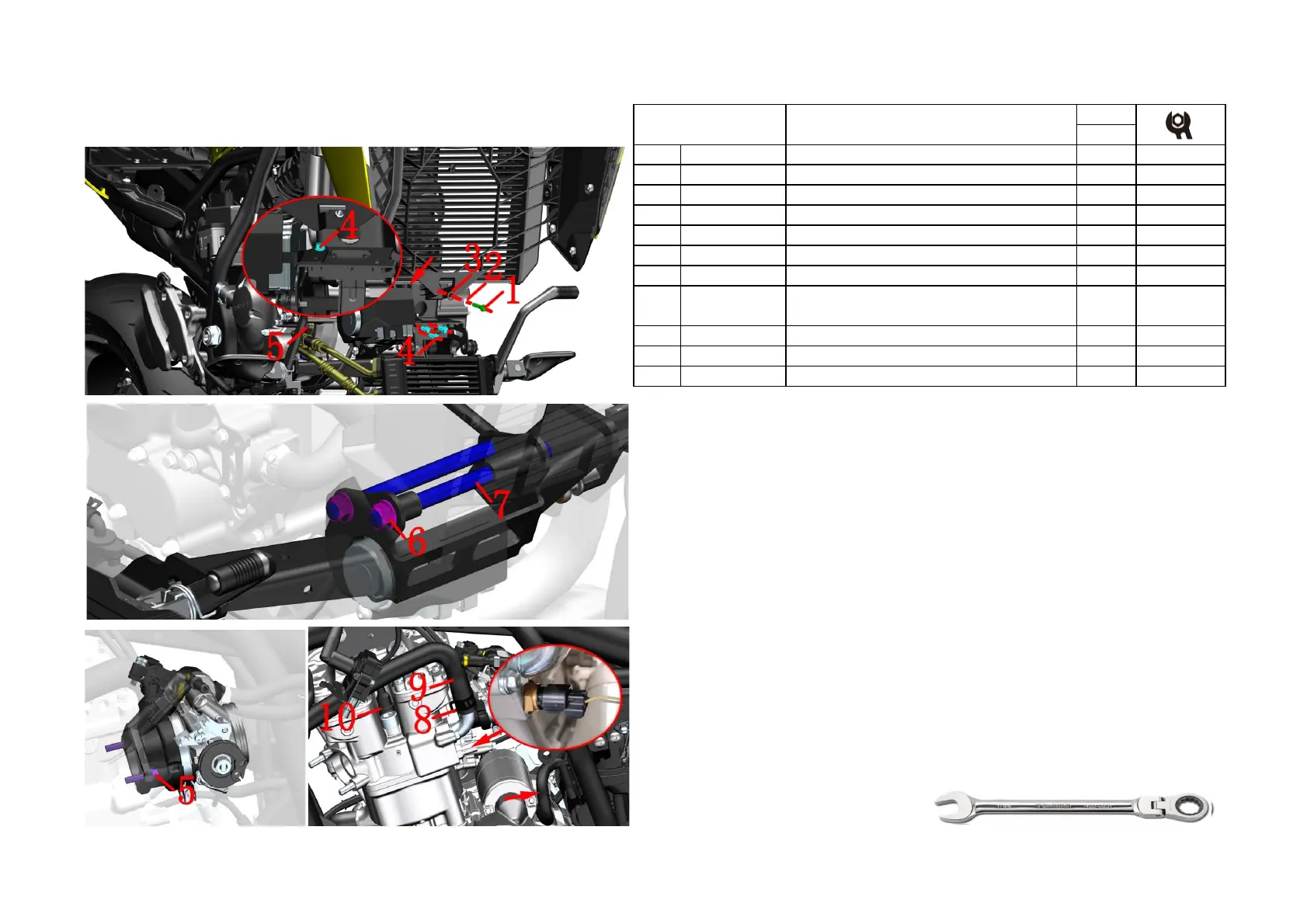

Fig.3 FRAME&ENGINE
FRAME&ENGINE 2
