7、FRONT FORK COMPONENT
82
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16(304 stainless steel)
4
2 1274100-057095
Flanging bushing φ6.2×φ8.5×3.5
＋
3 1244100-052000
Buffer rubber of flanging bushing
（
）
4 1251300-063093
Plywood M6×11×15(color zinc)
4
5 1224200-182000
Left storage box cover limit mounting support
1
6 1224200-187000
ZT310-VX left storage box cover
1
7 1274100-090000
ZT250-S rotating axle of fuel tank outside cover
2
8 1260100-215000
ZT310-T storage box cover rotating shaft limit circlip
2
9 1224100-014000
ZT250-S tank cover spinning damping
2
10 1260100-269000
ZT310-VX storage box return spring
2
11 1224200-186000
ZT310-VX right storage box cover
1
12 1224200-183000
Right storage box cover limit mounting support
1

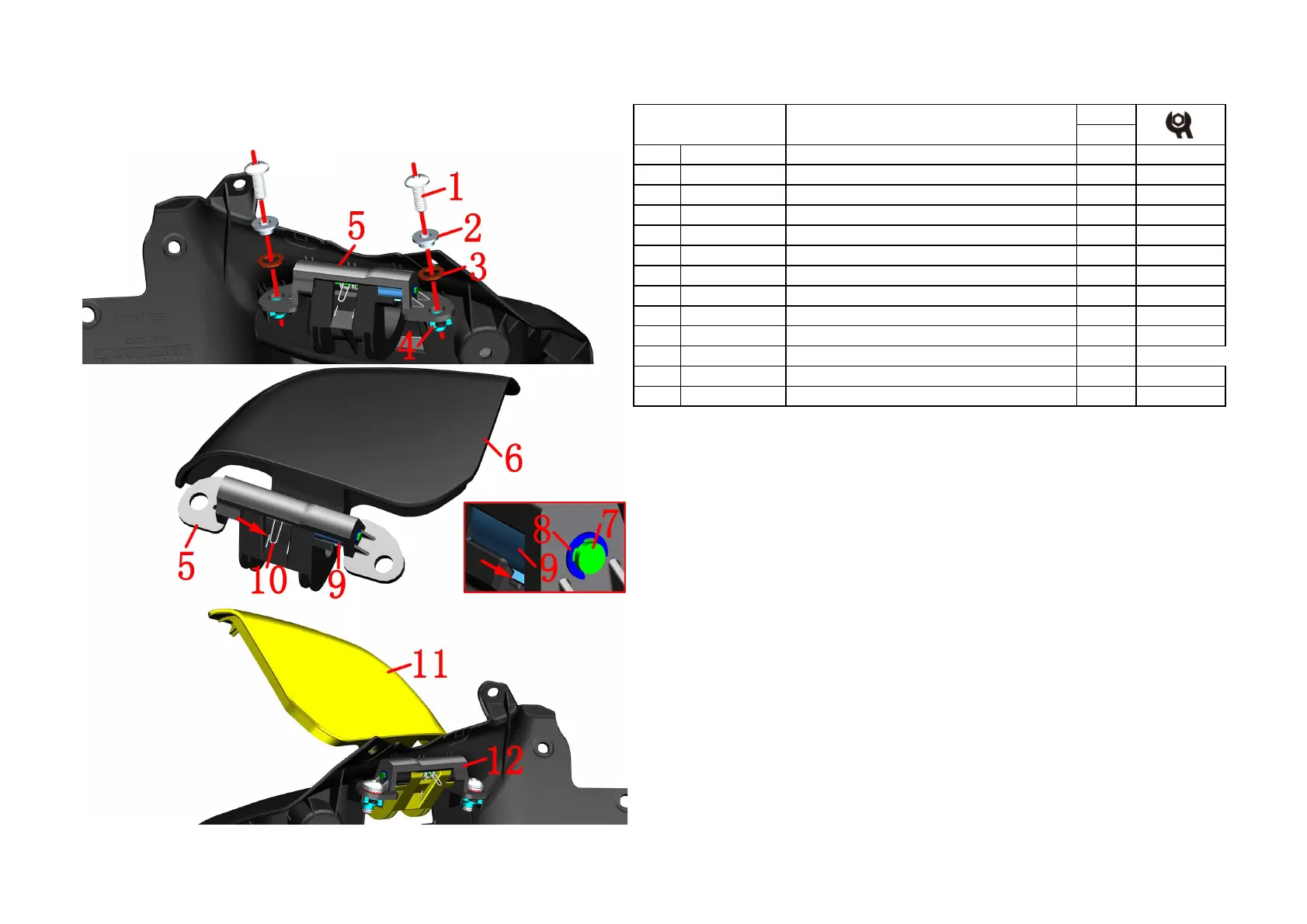

Fig.22FRONT FORK
COMPONENT
Storage box, rear surrounding components 2
PROCEDURE:
●Storage box cover
Use 4# inner hexagon to remove 2 bolts ⑴, remove bushing ⑵ and cushion rubber ⑶.
After removing the circlip ⑻, move the left storage box assembly to the position, remove the rotating shaft
⑺, damper ⑼ and spring ⑽, and separate the left storage box cover ⑹ and the left mounting support ⑸.
Remove the 2 pieces of splint ⑷.
Refer to the above steps to remove the right storage box cover ⑾ and the right mounting support ⑿.
CAUTION:
●When reinstalling, make sure that the spring ⑼ is inserted into the upper hole of the storage box cover; the
anti-rotation slot of the damper ⑻ should be aligned with the storage box cover.
