7、FRONT FORK COMPONENT
72
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224100-010000
2 1251112-001093
M6×16 Hexagon flange bolts (color Zinc)
2
3 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
2
4 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 2

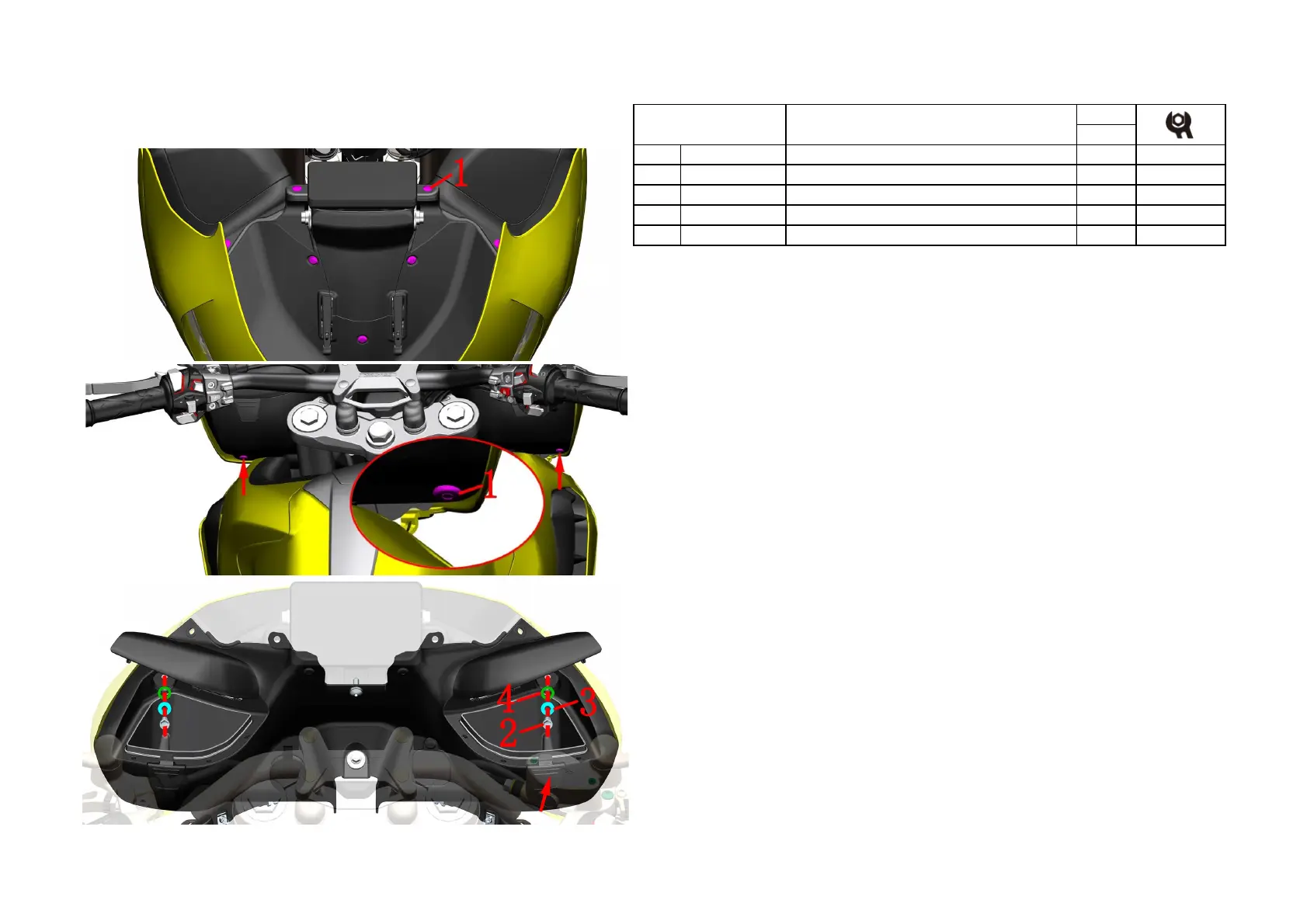

Fig.12 FRONT FORK
COMPONENT
Headlight assembly 1
PROCEDURE:
●Headlight assembly
Remove the 7 expansion nails (1) shown in Figure 1 and the 2 expansion nails (1) at the bottom of the
headlight cover shown in Figure 2.
Press the openings of the storage boxes on both sides to open the storage box cover and use an 8# sleeve to
remove the bolts (2), and remove the bushing (3) and cushion rubber (4).
CAUTION:
●You can search "ZT310-VX Headlight Replacement Video" in the assembly video to watch the detailed video
tutorial.The disassembly is the same,only the apperarance of individual parts is different.
