2、FRAME & ENGINE COMPONENT
15
CHK
ADJ
NO. PART NO.
1
1250104-006097
GB16674M6×12 (chromed/HH) 3
2 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 4
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 4
4 1224300-021000 ZT350-VX rear shock absorber link baffle 1
5 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 1
6 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 1
PROCEDURE:
●Preparation steps
T
he seat cushion, fuel tank, side cover, lower fairling, muffler, bumper, etc. need to be removed first.
●Link baffle assembly
After holding the baffle plate, use an 8# sleeve to remove 3 bolts ⑴ and 1 bolt ⑸ respectively, and remove the bushing
⑵ and buffer rubber ⑶. Remove the connecting rod stopper ⑷.
●Disassemble the main pump U-joint of the disc brake
S
traighten the cotter pin ① and remove it, remove the spacer ② and then remove the pin ③.
●Shift lever spline rocker arm
Use an 8# socket or a torx wrench to remove the bolt ⑹, and pull out the rocker arm ⑹.
CAUTION：
●Use the appropriate tools to support the vehicle to prevent accidents caused by the dumping of the vehicle during the
disassembly process; single operation is strictly prohibited.

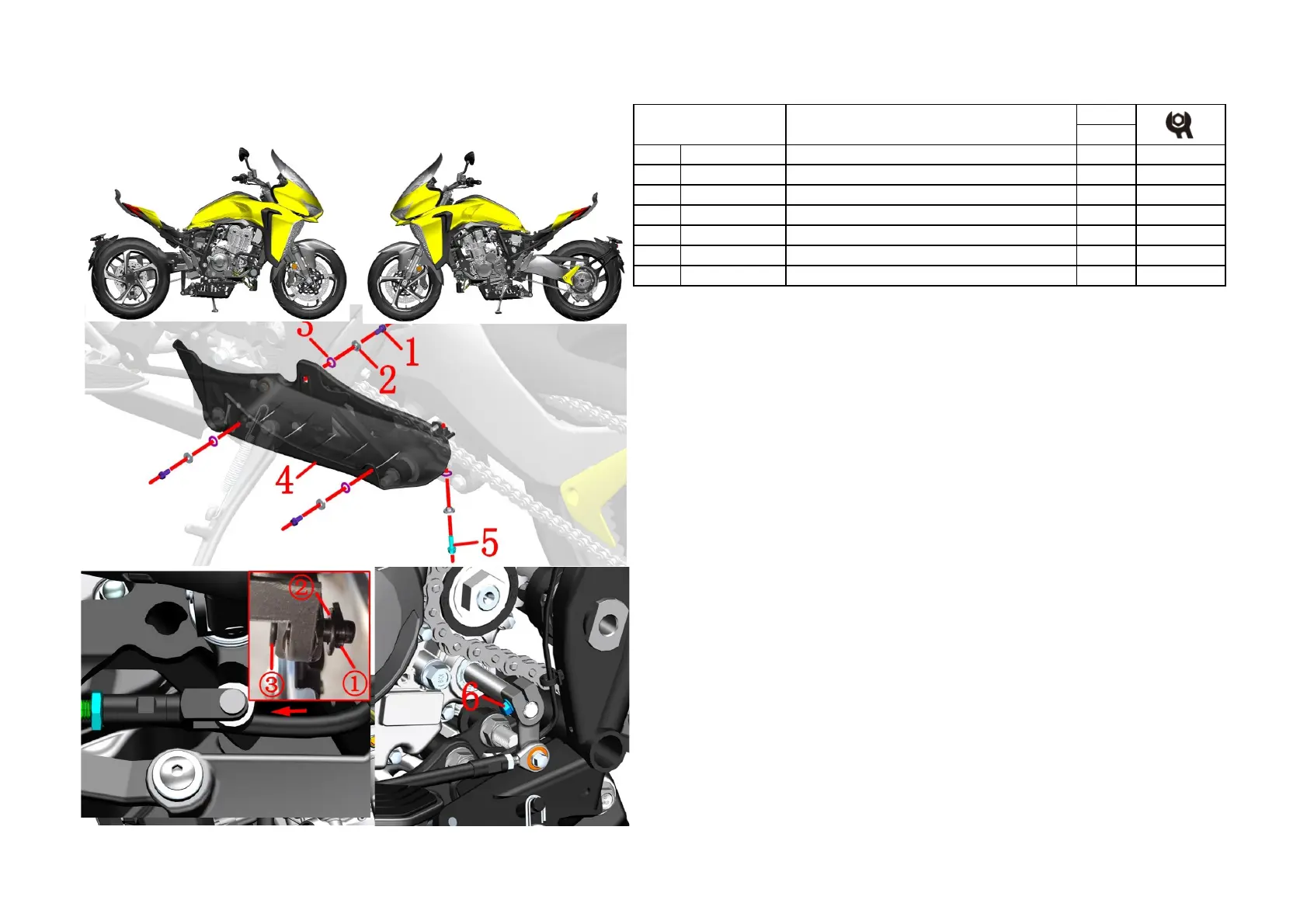

Fig.2 FRAME&ENGINE
FRAME&ENGINE 1
