4、REAR WHELL COMPONENT
24
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard Bolt M6×12（304 stainless steel） 1
2 1274100-057095
＋
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 1
4 ZT310-R1 sprocket baffle 1

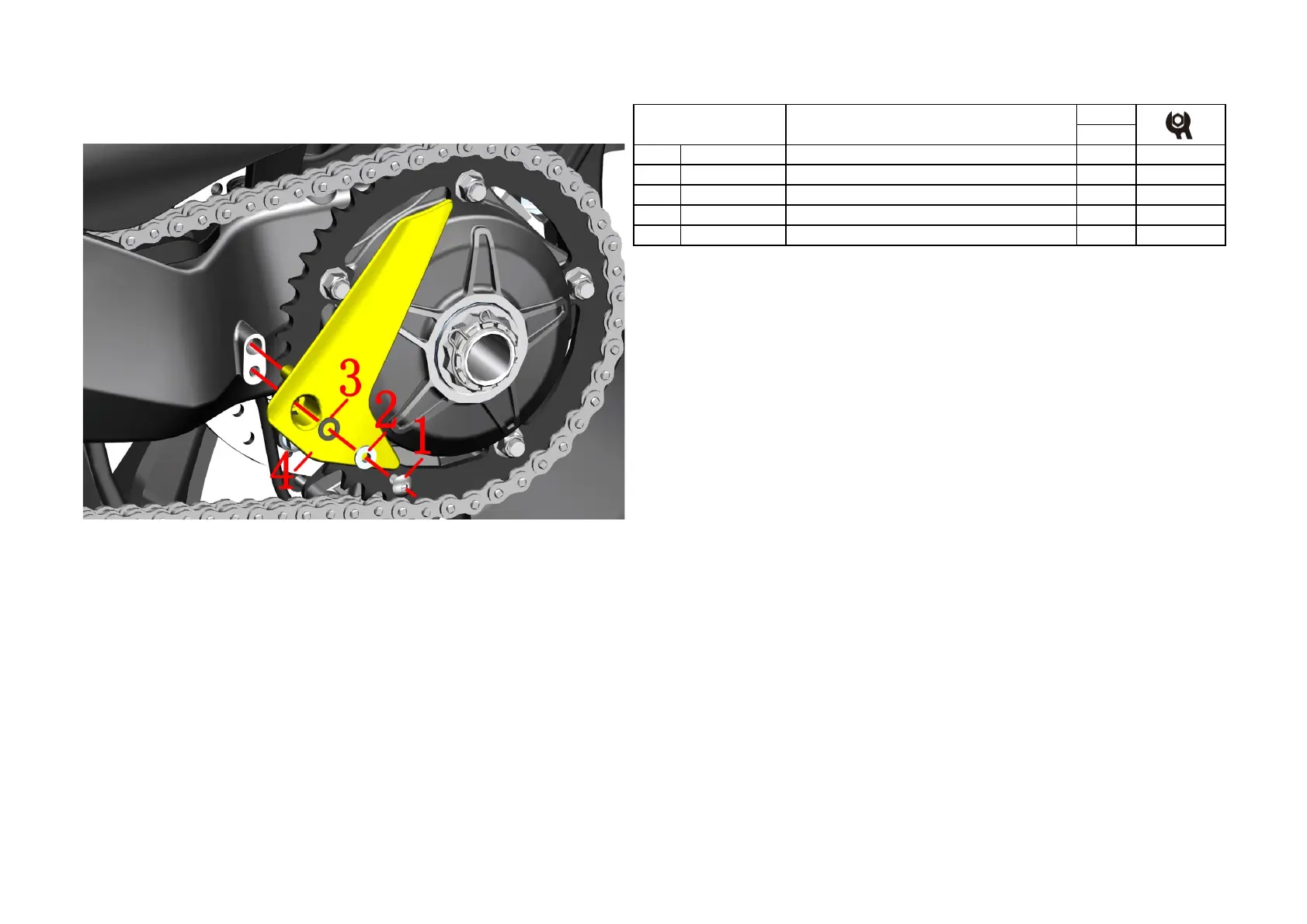

Fig.2 Rear wheel, swinging
arm assembly
Sprocket baffle
PROCEDURE:
●Sprocket baffle
Using 4# inner hexagon socket remove bolt⑴，remove the flange bushing ⑵, cushion rubber⑶; finally
remove the sprocket baffle⑷.
CAUTION:
●When reassembling, pay attention to the limit boss on the sprocket baffle to be inserted into the limit hole
of the rear fork.
