6、COOLING SYSTEM COMPONENT
60
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 3
2 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 6
3 1274300-045000 ZT350-VX oil cooler upper bracket 1
4 1274300-046000 ZT350-VX oil cooler lower bracket 1
5 1251112-002093 M6×30 Hexagon flange bolts (color Zinc) 1
6 1274300-022000 ZT350 oil cooler 1
7 1244300-012000 ZT350-V oil inlet pipe of engine 1
8 1244300-011000 ZT350-V engine oil outlet pipe 1
9 1051454-025000 9.8×2.4 Hydrogenated nitrile rubber O-ring 4
PROCEDURE:
●Oil cooler
First drain the oil according to the steps of "Change engine oil".Remove according to the steps of removing
the shroud.
First remove the bolt ⑵ at “a” with 8# sleeve, and then remove the three bolts ⑵ of bracket plate with 8#
sleeve. Pull down the oil cooler assembly and remove the lower support ⑷ first.
Tilt the vehicle to the left, remove the two bolts (⑴ at the right engine cover with 8# sleeve and pull out the
two oil pipes. Keep the oil cooler in the low position, grasp the two oil pipes to keep them in the high position,
and remove the oil cooler assembly. Pour the oil in the oil cooler into the oil pan.
Then remove the remaining two bolts ⑵ fixing the oil pipe, and remove the oil inlet pipe ⑺, oil outlet pipe
(⑻ and O-ring ⑼.
Remove the bolts⑸and⑴ fixing the oil cooler with 8# sleeves and pull down the oil cooler⑹.
CAUTION:
●Remove the lower shroud and hydraulic control unit component first.
●Disassembling the cooling system while the motorcycle is hot is prohibited. Wait until the engine and
muffler cool down thoroughly for the manipulation.
●Wasted engine oil should be collected and hand over to qualified facilities for further treatment. Do not
pour the oil anywhere and avoid pollution of environment and water source.
●Do not disassemble the oil tube violently in case of deformation of bush.
●To avoil leakage, changing seal gasket and O-ring every time together with engine oil is suggested.
●Be sure to wipe the connecting surface with clean nonwoven before reassembling.

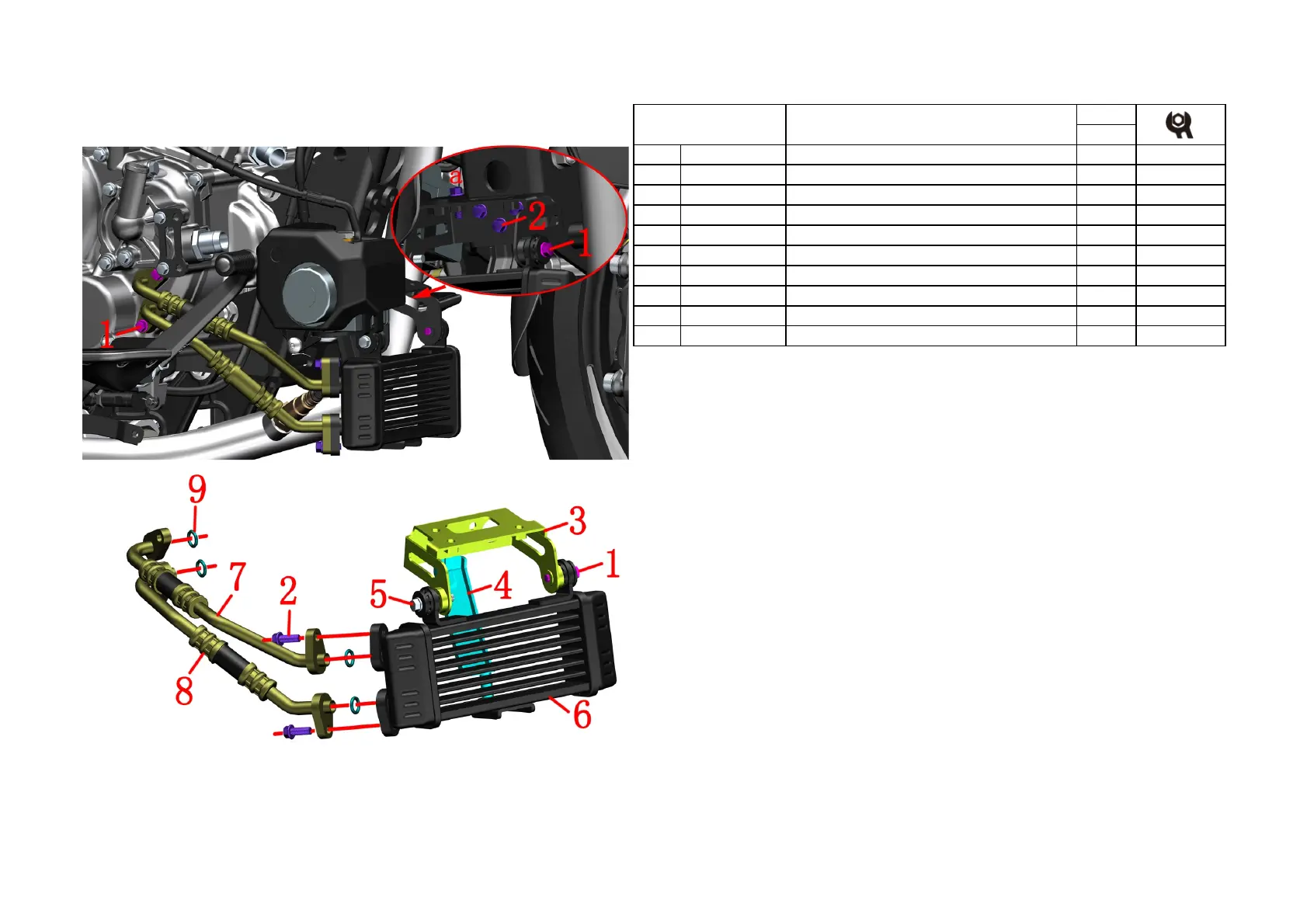

Fig.9 COOLING SYSTEM
COMPONENT
Oil cooler component
To Next Page
