5、FOOT PEDAL COMPONENT
42
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color Zinc) 1
2 1271200-163000 ZT250-S shift lever spline rocker arm (dark gray) 1
3 1250301-020093 GB6170M6 (environmental color) 1
5 1250301-018093 GB6170 M6-LH(color Zinc ) 1
6 1274200-310000 ZT310-VX gear shifter Lever rocker Arm (Dark Grey) 1
7 1274200-309000 ZT310-VX Brake pedal (Dark Grey) 1

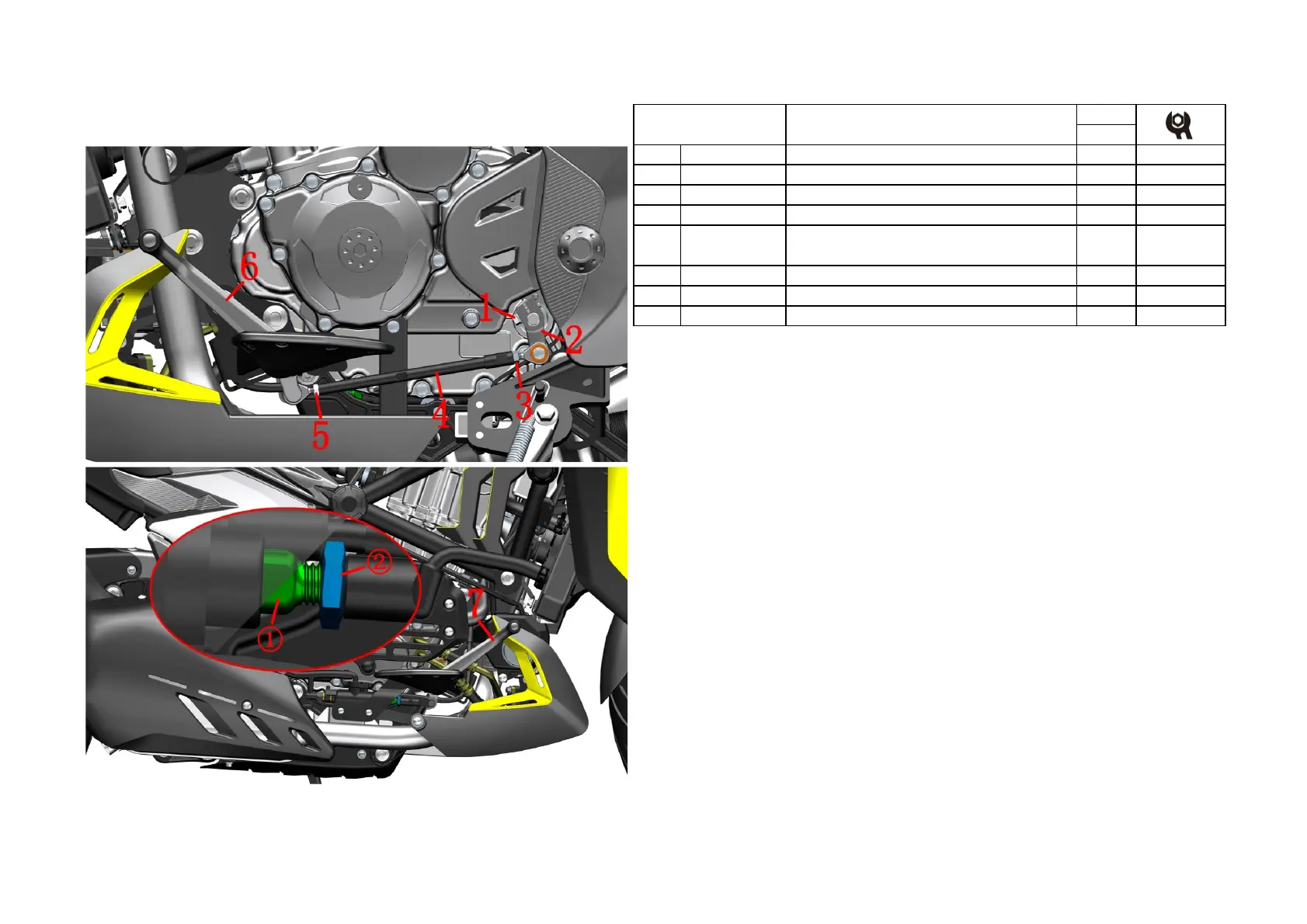

Fig.1 FOOT PEDAL
COMPONENT
Adjust the hight of foot pedal
PROCEDURE:
●Adjust the height of gear shift rod
Use an 10# open-end wrench to loosen the nut ⑶ ,and nut ⑸ respectively. Use 8# open spanner to adjust
the gear shift rod ⑷ adjustment bolt until the height becomes suitable. Then tighten the nuts. If the above-
mentioned method can not adjust the gear shift rod to a satisfying position, take off bolt ⑴ and adjust gear
shift rod spline of rocker arm ⑵ with a straight screwdriver by shoving a little bit the groove in the middle
while dragging it out. Reassemble after the height is suitable. Pay attention to the aligning of the groove in the
middle.
●Adjust the height of brake pedal
Use an 10# open-end wrench to loosen the nut②. Spin the adjustment rod bolt① and adjust the brake pedal
⑺ to 85mm up to the top pedal ⑻. Fix the adjustment rod bolt① and tighten Nut②.
CAUTION:
●Ensure the motorcycle is well supported during manipulation. Avoid falling accident.
●The height of gear shift rod should be ajusted to a suitable range. Otherwise the riding experience would be
influenced.
●The height of brake pedal should be ajusted to a suitable range. Otherwise the durance of braking shoe and
plate would be influenced. In severe case, ineffective braking is possible.
4 1274100-041000
ZT250-S shift lever adjusting screw φ10×150(Black
Zinc)
1
