5、FOOT PEDAL COMPONENT
49
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1250205-023000
GB70.1 inner hexagonal M8×35 (color Zinc)
6
Rear pedal assembly
PROCEDURE:
●Rear left pedal bracket assembly
Using 6# inner hexagon socket remove 2 pieces bolts ⑴ on the left side, take off the left pedal bracket
assembly ⑵.
Using 6# inner hexagon socket remove 2 pieces bolts ⑴ on the right side , take off the right pedal bracket
assembly ⑶.
CAUTION:
●The rear left and right foot pedal brackets are always equipped with the whole set,including the side cover
round glue, pedal bracket, pedal etc.
3 4064300-026051
ZT350-V1 rear right foot pedal bracket assembly (dark
gray matte)
1
2 4064300-025051
ZT350-V1 rear left foot pedal bracket assembly (dark
gray matte)
1

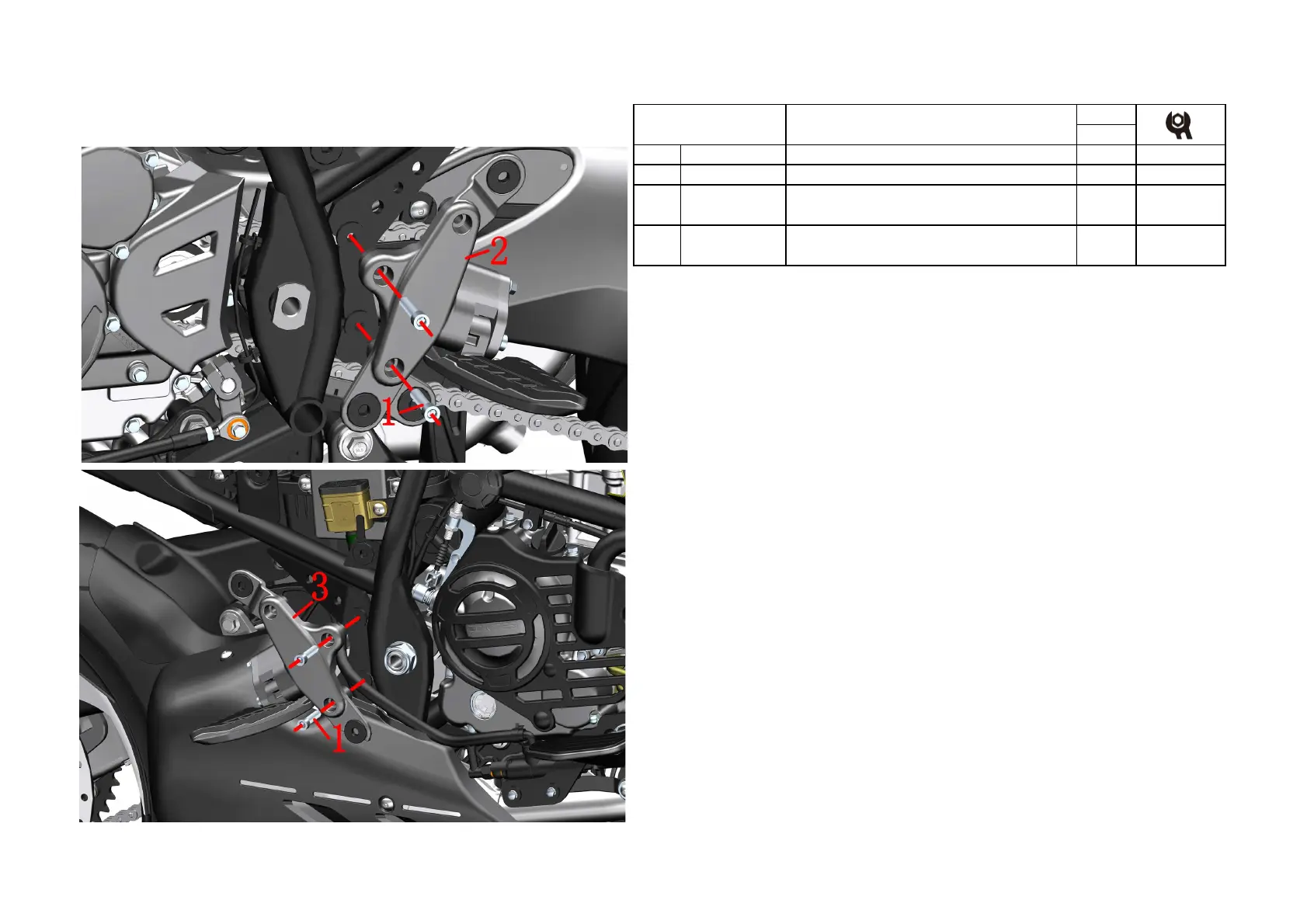

Fig.8 FOOT PEDAL
COMPONENT
