2、FRAME & ENGINE COMPONENT
14
CHK
ADJ
NO. PART NO.
1 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 3
2 1274100-018000 ZT250-S Anti-hot plate sleeve, muffler 3
3 1244100-017000 ZT250-S muffler hot plate rubber buffer 3
4 1224200-157000 ZT310-V engine right cover trim cover 1
5 1251112-005093 M6×75 Hexagon flange bolts (color Zinc) 3 10N.m
6 1274200-221000 ZT310-V engine right decorative cover bracket 1
7 1251112-003093 M6×45 Hex flange surface 9.8 bolt (color Zinc) 3 10N.m
8 1251112-006093 M6×90 Hexagon flange bolts (color Zinc) 1 10N.m
9 1274200-220000
ZT310-V engine right decorative cover front bracket
1
10 1251112-001093 M6×16 Hexagon flange bolts (color Zinc) 1
11 1051654-002000 Combination seal 6×13×1.8 1
12 1274200-041000 ZT310 Water pipe clamp (φ26) 1
13 1244200-068000 ZT310-V engine inlet pipe 1
14 4050854-002051 ZT310-R engine left rear cover (dark gray) 1
●Swallowing or inhaling the coolant can be harmful to the human body.Please thoroughly clean any
exposed skin such as hands, face, etc. after each addition of coolant.Contact poison control center or
hospital immediately if swallowed.If inhaled, please go to a ventilated environment immediately.In
case of accidental splash into eyes, please immediately flush eyes with plenty of running water and
seek medical treatment in time.Be sure to stay away from children and pets.

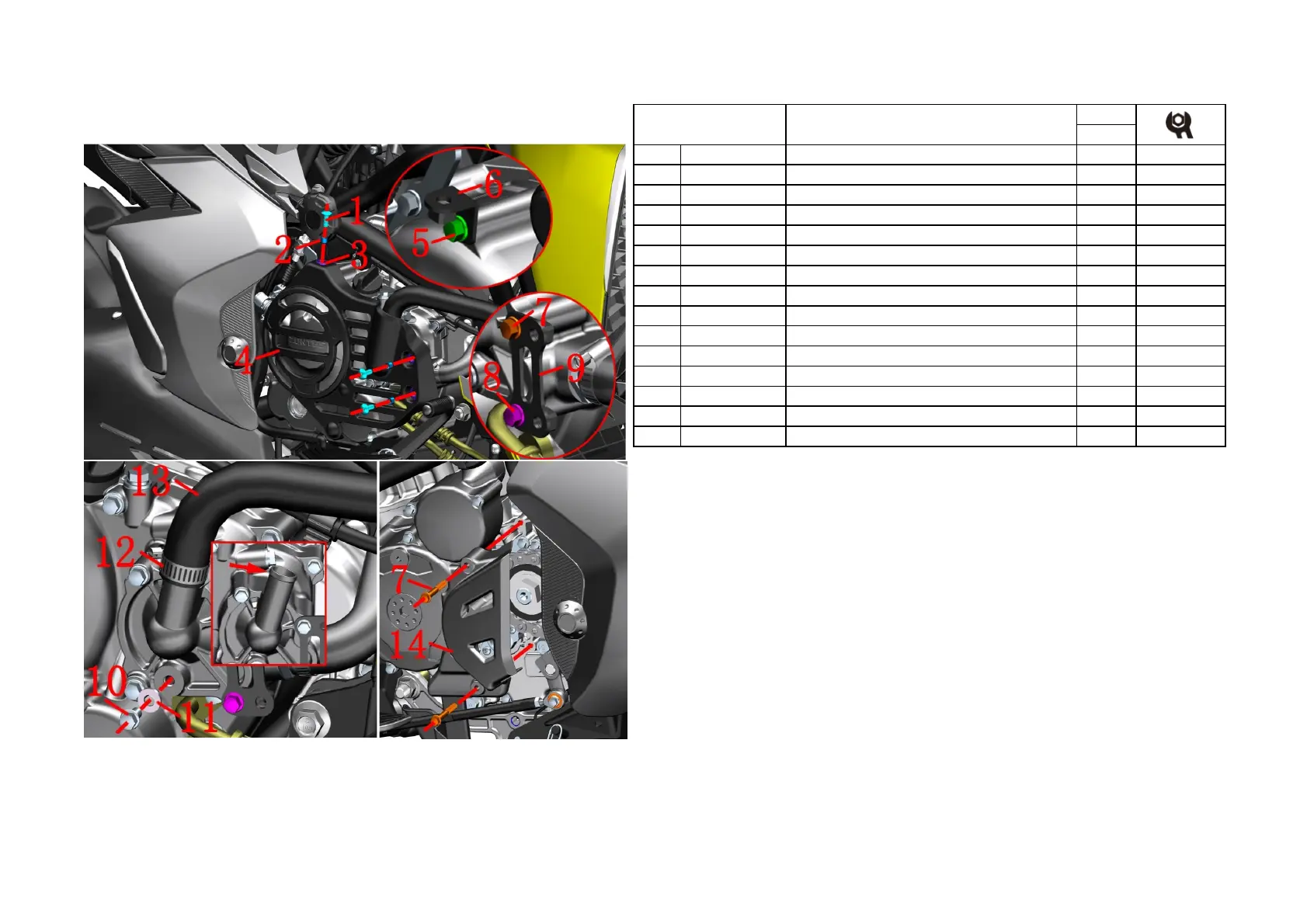

Fig.1 FRAME&ENGINE Engine decorative cover components
PROCEDURE:
●Engine right trim cover assembly
Using 4# inner hexagon socket disassemble 3 bolts ⑴ and take out the right trim cover components.Remove
the bushing ⑵、buffer rubber ⑶ from the right trim cover components.Using 8# sleeve disassemble the bolts
⑸ and take out the bracket ⑹. Using 8# sleevedisassemble the bolts ⑺、⑻and take out the bracket ⑼.
After removing the bracket ,scew the bols that holds the bracket back to the engine to prevent leakage.
●Put the coolant
After placing an oil pan or other container under the right side of the vehicle, tilt the vehicle to the right.
After wearing waterproof gloves with both hands, remove the bolt ⑽ with an 8# sleeve, and remove the
combined sealing ring ⑾.
Drain the coolant with a funnel or other device. Opening the main tank cover can speed up the entire
coolant drain of the cooling system.
Loosen the two clamps ⑿ with a flat-blade screwdriver and remove the boss indicated by the arrow.
Pull out the water inlet pipe ⒀ and then remove the clamp ⑸ from the water pipe.
Use a clean cloth to wipe off any remaining coolant on the surfaces of all parts.
● Engine left rear cover
Using 8# sleeve remove the bolt ⑺ disassemble the rear cover⒁.
CAUTION：
●The 3 M6 bolts of the engine trim cover bracket must be coated with thread fastening glue before
reassembly, with a torque of 10N.m.
●The coolant should be drained before disassembly.
