7、FRONT FORK COMPONENT
75
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16 (304 stainless steel)
5
2 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
5
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 5
4 1251900-058000 Mushroom buckle (25mm×25mm×T3.5mm) 4
5 1224100-010000

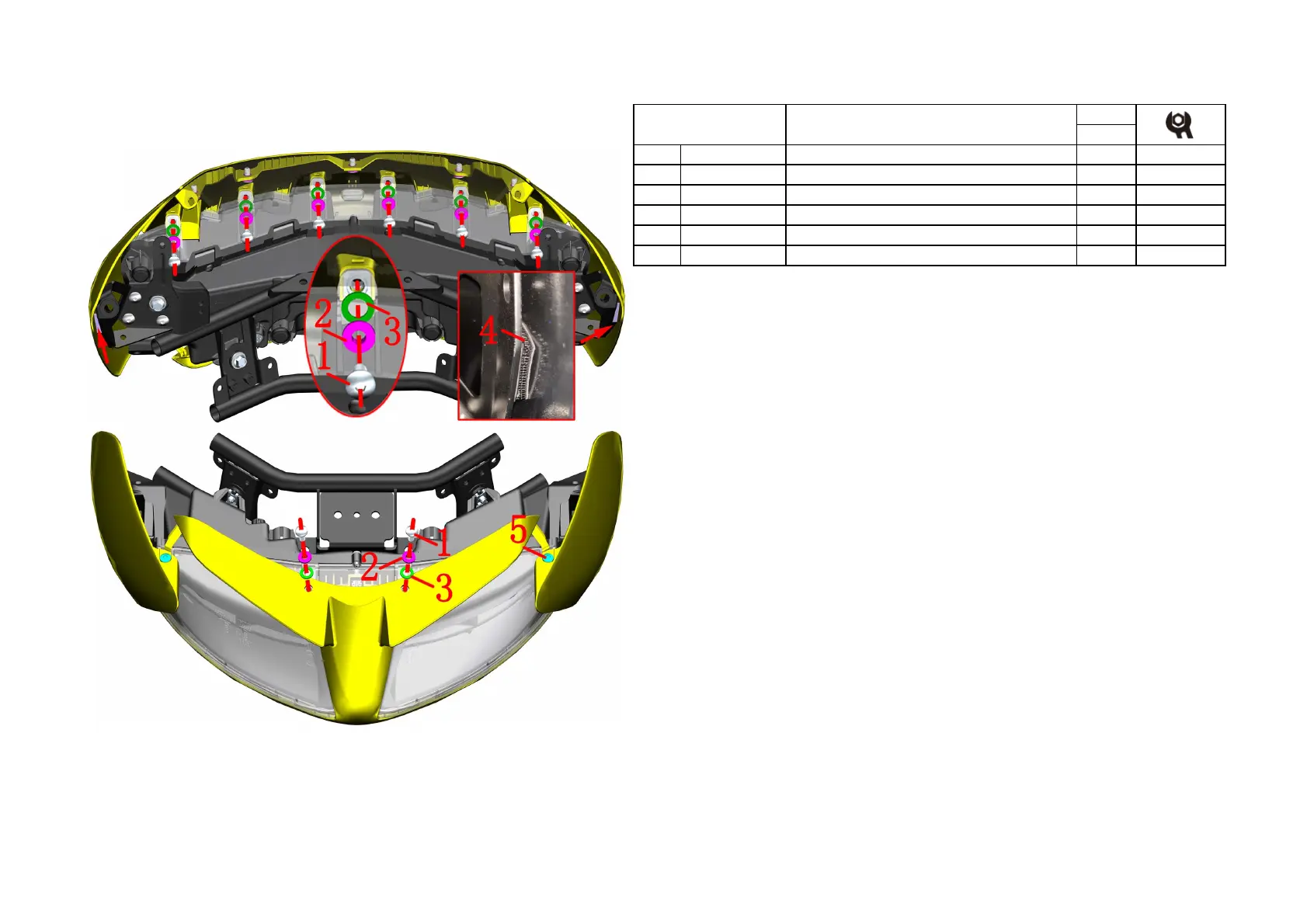

Fig.15 FRONT FORK
COMPONENT
Headlight assembly 4
PROCEDURE:
●Headlight components
Remove the 6 bolts ⑴ from the top of the headlight with 4# inner hexagon, and remove the bush ⑵ and the
cushion rubber ⑶.
Turn to the back and use 4# inner hexagon to remove 2 bolts ⑴, take off the bush ⑵ and cushion rubber ⑶.
Remove the expansion nails on both sides ⑸.
Open the mushroom hasp between the headlight covers on both sides and the headlight bracket ⑷ and then
remove the headlight assembly. The mushroom buckles are respectively pasted on the headlight bracket and
the headlight cover by double-sided tape.
Separate the headlight assembly and headlight cover assembly.
CAUTION:
●You can search "ZT310-VX Headlight Replacement Video" in the assembly video to watch the detailed video
tutorial.The disassembly is the same,only the apperarance of individual parts is different.
●The parts should be protected during the disassembly process to prevent damage to the paint surface.
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.
