7、FRONT FORK COMPONENT
83
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16 (304 stainless steel)
2
2 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
2
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 2
4 1224200-184000 ZT310-VX right storage box 1
5 4044201-607003
ZT310-VX Right storage box switch (Silver white matte)
1
6 1224300-022000 ZT350-VX Front surrounding rear interior 1
7 1224200-185000 ZT310-VX left storage box 1
8 4044201-606003 ZT310-VX left storage box switch (Silver white matte) 1
9 1251300-063093
Plywood M6×11×15(color Zinc)
2
10 1274200-269000
ZT310-VX storage box switch pin
2
11 1260100-215000
ZT310-T storage box cover rotating shaft limit circlip
2
12 1260100-270000 ZT310-VX storage box switch return spring 2

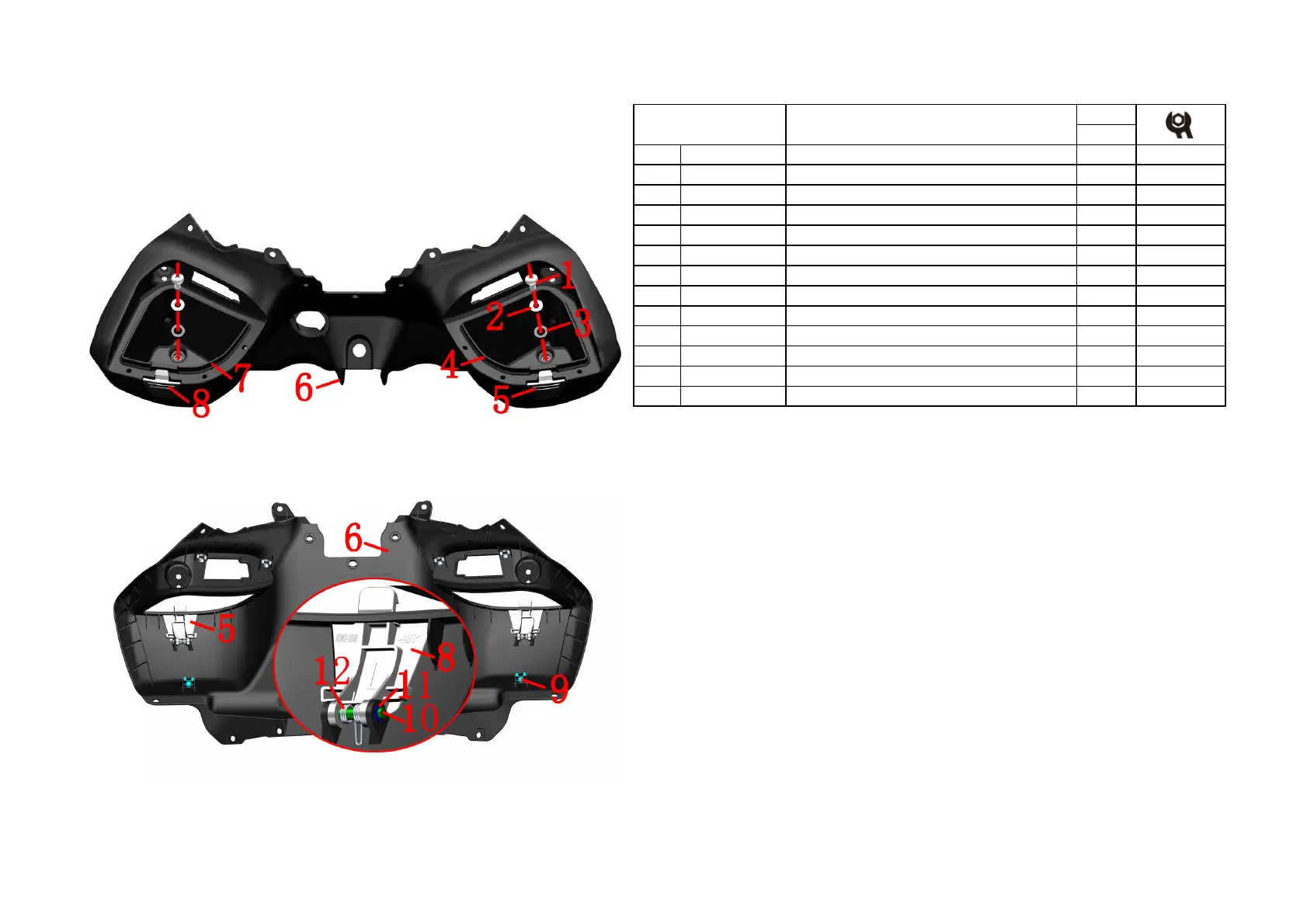

Fig.23 FRONT FORK
COMPONENT
Storage box, rear surrounding components 3
PROCEDURE:
●Storage box
Remove 2 pieces of splints ⑼ from the surrounding rear interior ⑹.
Use 4# inner hexagon to remove bolt ⑴, remove bushing ⑵ and cushion rubber ⑶; remove right storage
box ⑷. Remove the left storage box ⑻ in the same way.
After removing the circlip ⑾, rotate the pin ⑽, spring ⑿ and left switch ⑻. Use the same method to remove
the right switch ⑸.
CAUTION:
●When reassembling, make sure that the spring ⑿ should be inserted into the hole of the storage box
switch.
