7、FRONT FORK COMPONENT
69
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1010407-002000 Double hole clamp (Φ8.5 with Φ17.5) 1
2 1224100-044000 Wheel speed sensor clamp 3
3 1244300-023000 ZT310 rubber buckle (50mm) 1
4 1224300-088000 ZT350-V1 EFI relay holder 1
5 1181200-118000 Wheel speed sensor(A) 1
6 1274300-109000 ZT350-R Front oil outlet pipe clamp 1
7 1251100-121093 Non-standard bolt M6×25 (environmental color) 2
8 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 1
10 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 4
11 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5 6
12 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 6
13 Front mudguard 1
14 1250301-020093 GB6170M6 (environmental color) 2
15 1246200-058000 Anti-Vibration plate (500mm×80mm) 1
9 1251100-303093
GB70.1 Hexagon socket head bolt M10×1.5×60 (grade
12.9 / environmental protection color zinc)
Front mudguard & wheel speed sensor component

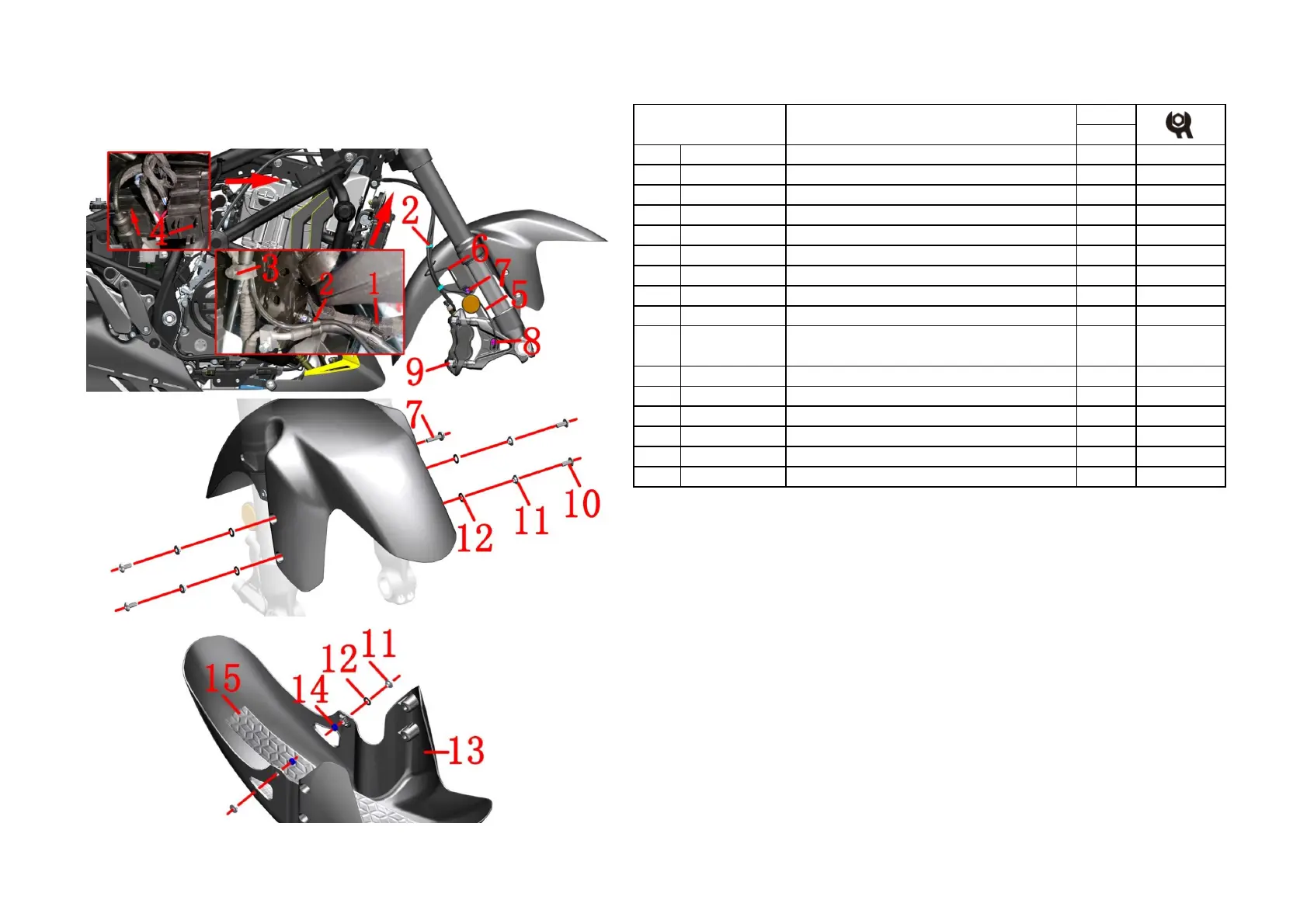

Fig.9 FRONT FORK
COMPONENT
2
PROCEDURE:
●Wheel speed sensor
Remove the wire clips⑴, wire clips⑵, and rubber wire buckles⑶. Hold the fixed seat ⑷ with one hand, and
pull out the plug of the wheel speed sensor ⑸ in the direction of the arrow with the other hand. Take the
brake oil pipe and wheel speed sensor wire out of the wire clamp ⑹, remove the bolt ⑻ with a 4# hexagon
socket, and take off the sensor ⑸.
Use a 6# hexagon socket to remove the right bolt ⑺, and take off the wire clip ⑹.
●Front disc brake caliper
Use a 8# hexagon socket to remove the bolts⑼; let the caliper sag naturally, and it is strictly forbidden to
invert the caliper. It is forbidden to invert the caliper to prevent the air from entering and causing the brake to
fail.
●Front mudguard
Remove the 4 bolts ⑽ with the 4# hexagon socket by hand and remove the bushing ⑾ and cushion rubber
⑿. Using 6# hexagon socket remove the bolt⑺ on the left side. Take off the bushing ⑾ and cushion rubber
⑿ and the nuts⒁ . If the shockproof plate⒂ needs to be replaced, heat it with a hot-air gun and remove it
after the double-sided adhesive is softened.
CAUTION:
●Pay attention to the strength when disassembling the front mud plate to prevent scratching the paint
To Next Page
