4、REAR WHELL COMPONENT
37
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1274300-069094 ZT350-VX Muffler Front Mounting Stud 1
2
1251300-057093 Non-standard nut M10×1.5(Dacromet) 2
3
1250104-006097 GB16674M6×12 (chromed/HH) 1
7
1274300-074000 ZT350-VX rear shock absorber link bushing (left) 1
9
1250305-009091 GB6187.1 M12×1.25(White Zinc) 3
10
1251100-291000 Non-standard bolt M10×1.5×55(Dacromet) 1
11
1274300-060000 ZT350-VX rear shock linkage front bushing 1
13
1251500-034000 12.3×26×3 gasket 2
14
1114300-004000 ZT350-VX rear shock absorber 1
8 4024300-007000
ZT350-VX rear shock-absorbing lower bracket left
reinforcing plate
1
12 1251112-019000
GB5187 non-standard bolt M12×1.25×85(10.9
garde/dacromet)
1
PROCEDURE:
●Rear shock absorber reinforcement plate
Make a mark with a marker first, then hold the bracket ⑷ and remove the bolt ⑶ with an 8# sleeve, and
take off the bracket ⑷.
Use a 14# torx wrench to fix the stud (1), and use a 14# torx wrench to remove the nut (2). Then use a 14#
Torx wrench to remove the stud (1).
Use a 14# sleeve to fix the head of the bolt ⑽, remove the nut (2) with a 14# sleeve, and then remove the
bolt ⑽ after grasping the rear flat fork connecting rod assembly.
Use a 14# sleeve to fix the head of the bolt ⑸ and then use a 17# sleeve to remove the nut ⑼. Disassemble
the left reinforcing plate ⑻, bushing ⑺, right reinforcing plate ⑹ and rear shock absorber assembly.
●Rear shock absorber link assembly
Remove the bushing ⑾, fix the head of the bolt ⑿ with a 14# sleeve, and then remove the nut ⑼ with a 17#
sleeve. Take out the bolts ⑿ and remove the 2 pieces of spacers⒀, the rear shock absorber ⒁ and the rear
shock absorber link assembly.
2
4 1274200-221000
ZT310-V engine right cover decorative cover
mounting bracket
1
6 4024300-008000
ZT350-VX rear shock lower bracket right
reinforcement plate
1
5 1251112-020000
GB5187 non-standard bolt M12×1.25×153(10.9
garde/dacromet)

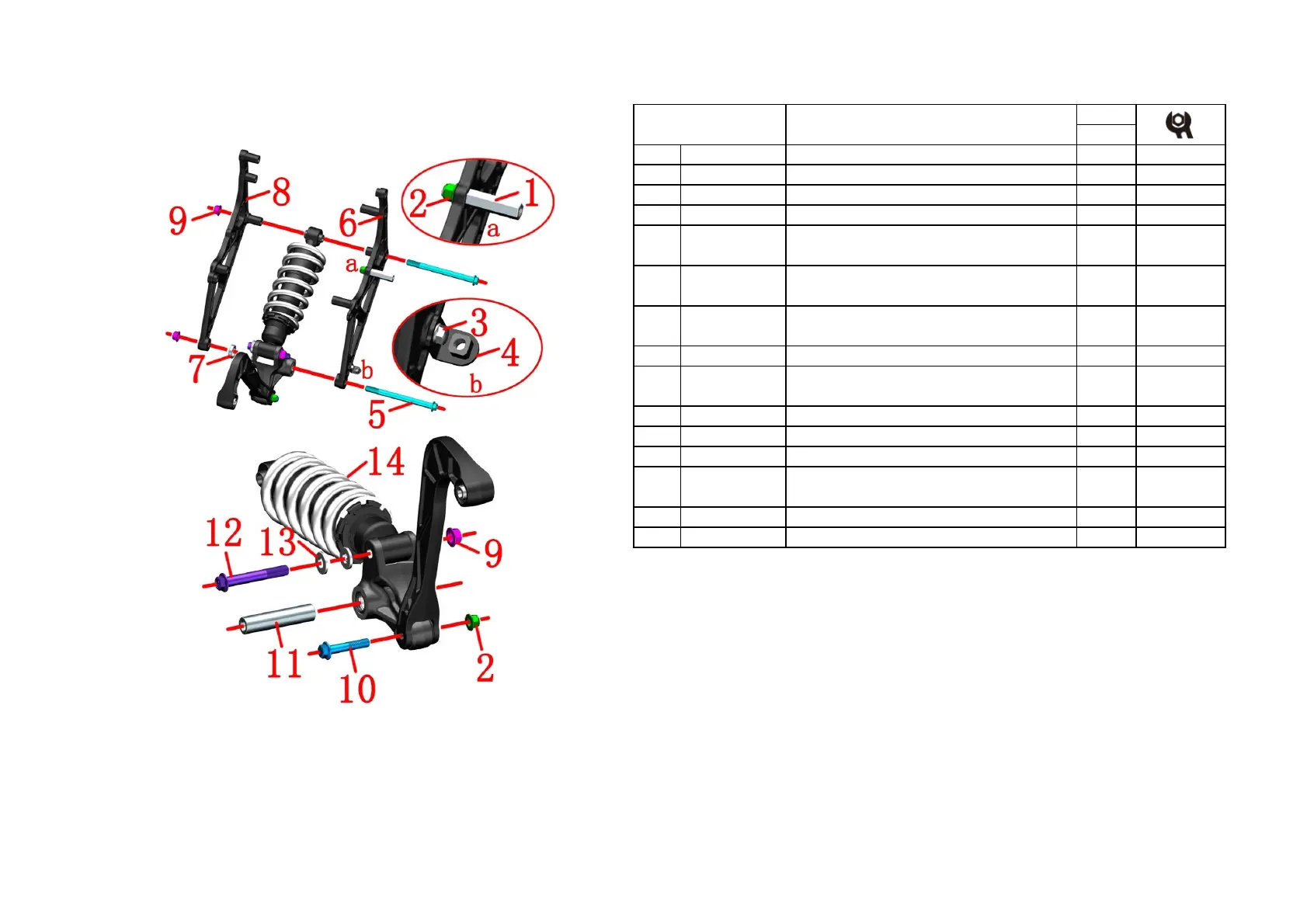

Fig.15 Rear wheel, swinging
arm component
Rear shock absorption 2
CAUTION:
●When assembling the bracket ⑷, do not tighten the bolts ⑶ first, you need to put the rear shock
absorber back into the vehicle and use the rear shock absorber link baffle to locate the bracket position
and then tighten it.
