5、FOOT PEDAL COMPONENT
50
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093
M6×22 Hex flang bolt thread level 8.8 (color Zinc)
1
2 1250205-043093
GB70.1M8×55(environmental color)
1
3 4064200-016051
ZT310-V rear right foot pedal cover (dark gray matte)
1
4 1260100-225000
ZT310-V rear right pedal spring
1
5 1251700-118000
Bushing Φ 13 x Φ 8 x 18.1
1
6 1244100-002000
ZT250-S Side cover round rubber
2
8 1274200-148000
9 1032142-050000
ZT310-V rear right pedal slider
1
10 1260100-223000
ZT310-V rear pedal spring
1
11 1274200-286000
ZT310-V rear foot tip pin
1
12 1250205-038000
GB70.2M5×12 (stainless steel)
1
13 1244200-065000
ZT310-V rear right foot rubber cover
1
14 1274200-147000
ZT310-V rear foot rubber cover mounting piece
1
15 4064200-015051
ZT310-V rear right foot pedal (dark gray matte)
1

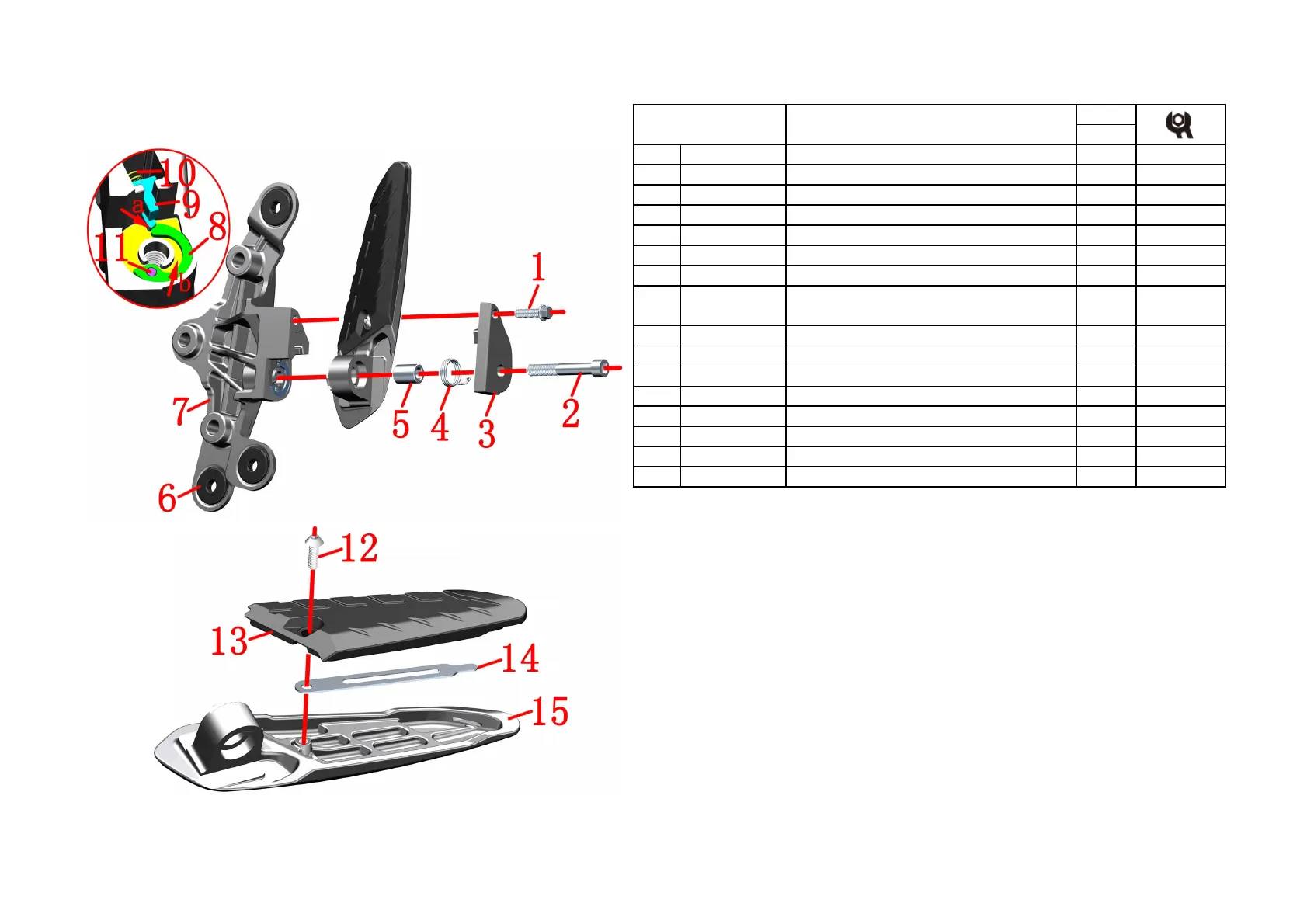

Rear right pedal bracket components
Fig.9 FOOT PEDAL
COMPONENT
PROCEDURE:
●Rear right pedal bracket assembly
Take off 2 pieces side cover round glue ⑹ from the right pedal bracket⑺.
Use 8# sleeve to remove bolt ⑴; use 6# inner hexagon to remove bolt ⑵, take off the cover plate ⑶.
Remove the bolt ⑴and ⑵take off the cover ⑶.
Take off the pedal torsion ⑷ and bushing ⑸.
Take off the rear pedal component
Take off the pedal top film ⑻ and footrest top plate hinge pin ⑾.
Take off the pedal slider ⑼ and spring ⑽.
●Rear right pedal
Using 3# inner hexagon socket remove the bolt ⑿，take off the pedal ⒂.
The rubber sleeve fixing piece ⒁ is withdrawn from the pedal rubber sleeve ⒀.
CAUTION:
●When reassembling, apply a proper amount of grease to the blue surface indicated by arrow "b". Note that
the slider top sheet needs to hold the slider.
●Reassembly is to tighten the bolt ⑴ first, then pre-tighten the bolt ⑵. The bolt ⑵ head should be coated
with a proper amount of thread fastening glue. After tightening the bolt ⑵, it is necessary to confirm whether
the pedal rotation is flexible or not.
7 4064300-024051
ZT310-V1 rear right foot pedal bracket (dark gray
matte)
1
To Next Page
