6、COOLING SYSTEM COMPONENT
55
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
1251100-102000 Non-standard bolt M6×16 (304 stainless steel)
7
2
1274100-057095 Flanging bushing φ6.2×φ8.4×3.5
＋
3
1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1)
8
4
1224100-010000 ZT250-S swell nail
12
5
1224300-078000 ZT350-VX lower connection board fender lower part
1
6
1224300-015000 ZT350-VX radiator cover grille
1
7
1251112-002093 M6×30 Hexagon flange bolts (color Zinc)
1

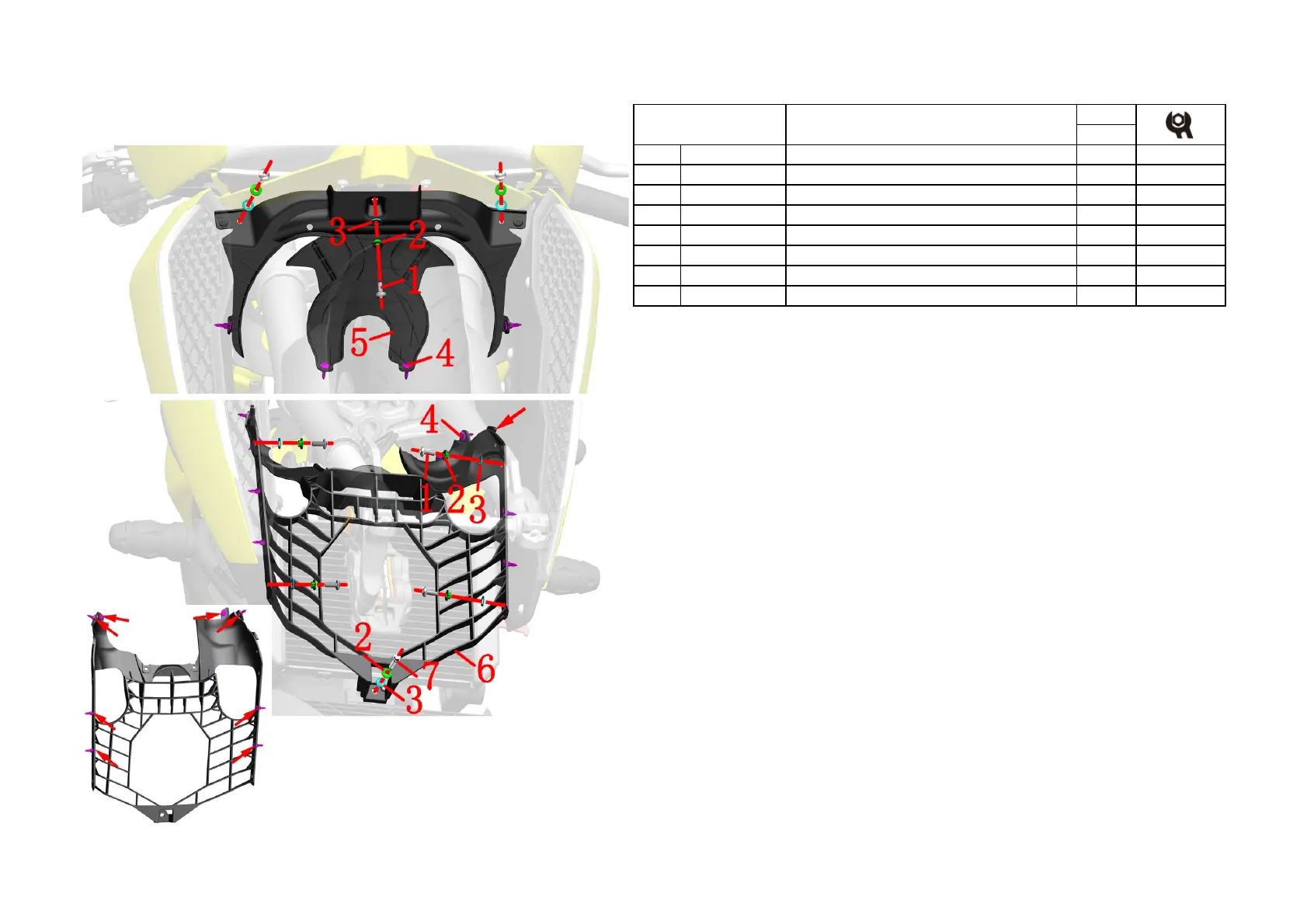

Fig.4 COOLING SYSTEM
COMPONENT
Radiator decorative cover grille
PROCEDURE:
●Fender assembly of lower link plate
Remove the 3 bolts (1) shown in Figure 1 with a 4# inner hexagon, and remove the bushing (2) and the
cushion rubber (3).
Grasp the lower part of the fender ⑸, remove the 4 expansion nails ⑷, and remove the lower part of the
fender ⑸.
●Radiator grille
Remove 8 expansion nails (4), the positions are shown in the lower right corner.
Remove the 4 bolts (1) shown in Figure 2 with a 4# inner hexagon, and remove the bushing (2) and cushion
rubber (3).
Use 6# inner hexagon to remove bolt ⑺, remove bushing ⑵ and cushion rubber ⑶.
Pull the grille ⑹ diagonally down, paying attention to the limited boss on the top of the grille.
CAUTION:
●Disassemble the engine and radiator after they have been completely cooled.
●You can search for "ZT310-VX Fuel Tank Disassembly Tutorial" in the assembly video to watch the video
tutorial of removing the grille.The disassembly is the same,only the apperarance of individual parts is
different.
