7、FRONT FORK COMPONENT
71
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-093000
ZT310-T head cover on rocker arm decorative block
2
2 1274200-136000
ZT310-T head cover upper rocker gasket
2
3 4024200-100051 ZT310-VX windshield upper rocker arm 2
4 1260100-295000 ZT310-V1 Extension Spring, Rocker Arm 2
5 1250601-093000
6802 deep groove ball bearing
2
Windshield components 2

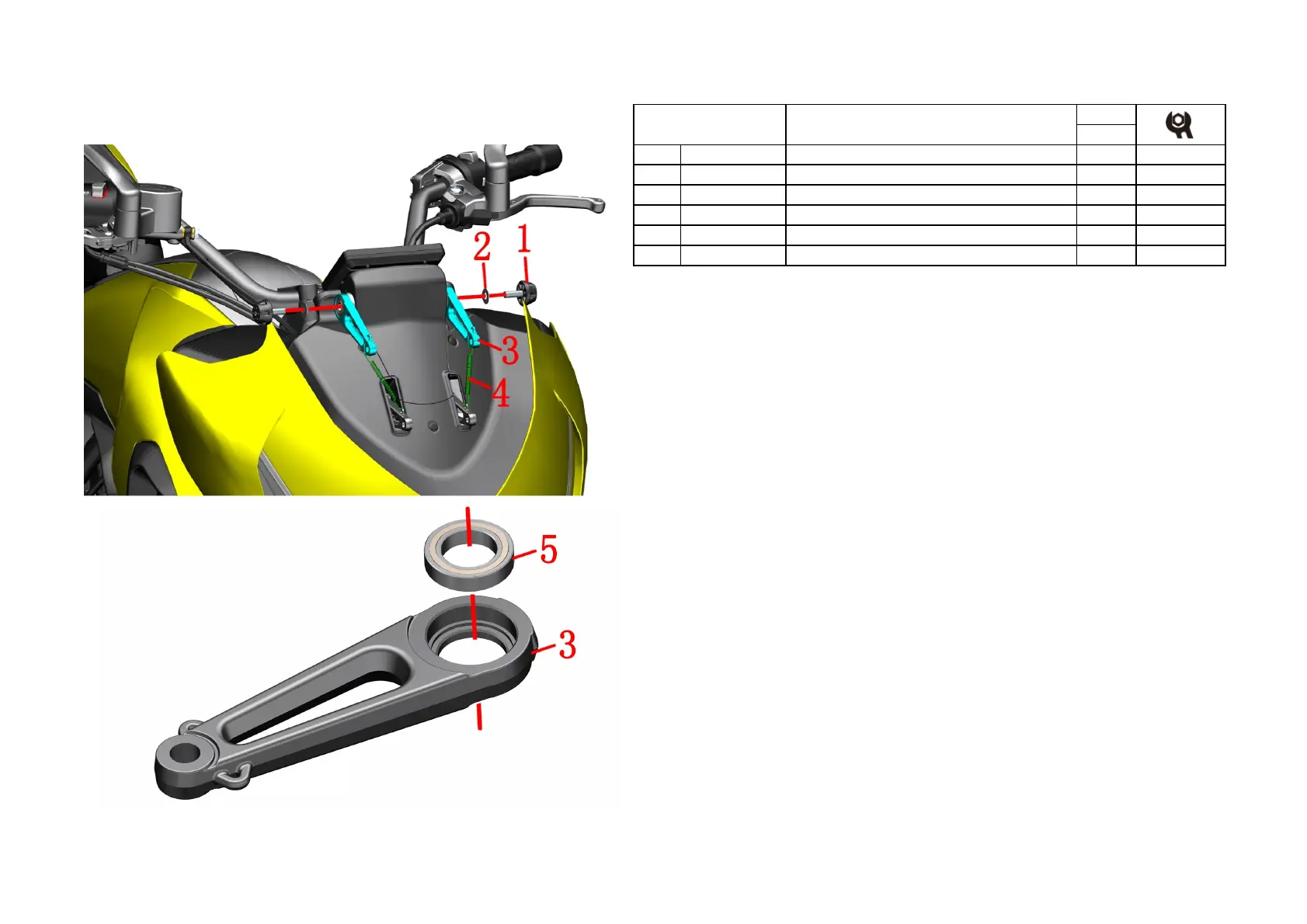

Fig.11 FRONT FORK
COMPONENT
PROCEDURE:
●Windshield upper rocker arm
Remove the rocker arm decorative block ⑴ with a 4# inner hexagon, and then remove the gasket ⑵, pull the
upper rocker arm assembly out; and remove the tension spring ⑷.
Use the same method to remove the right part.
Remove the bearing ⑸ from the upper rocker arm ⑶.
CAUTION:
●Pay attention to safety when removing the spring. The extension spring sold on the official website (4) does
not contain a heat-shrinkable tube. You need to purchase a φ8 heat-shrinkable tube by yourself.
●You can search "ZT310-VX Headlight Replacement Video" in the assembly video to watch the detailed video
tutorial.The disassembly is the same,only the apperarance of individual parts is different.
