4、REAR WHELL COMPONENT
25
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-117093
Non-standard inner hex bolt M8×25 (color Zinc)
2
2 1250501-004091 GB93φ10(white Zinc) 2
3 1250503-006091 GB97.1 φ10(white Zinc) 2
4 1251100-204000
Non-standard bolt M16×1.5×50 (environmental color)
1 100N.m
5 1094100-062000 M35 nut locking spring 1
6 1251300-070000 Non-standard nut M35×1.5 (environmental color) 1 200N.m
7 1080200-055000 114 section chain (520 oil seal chain/open type) 1

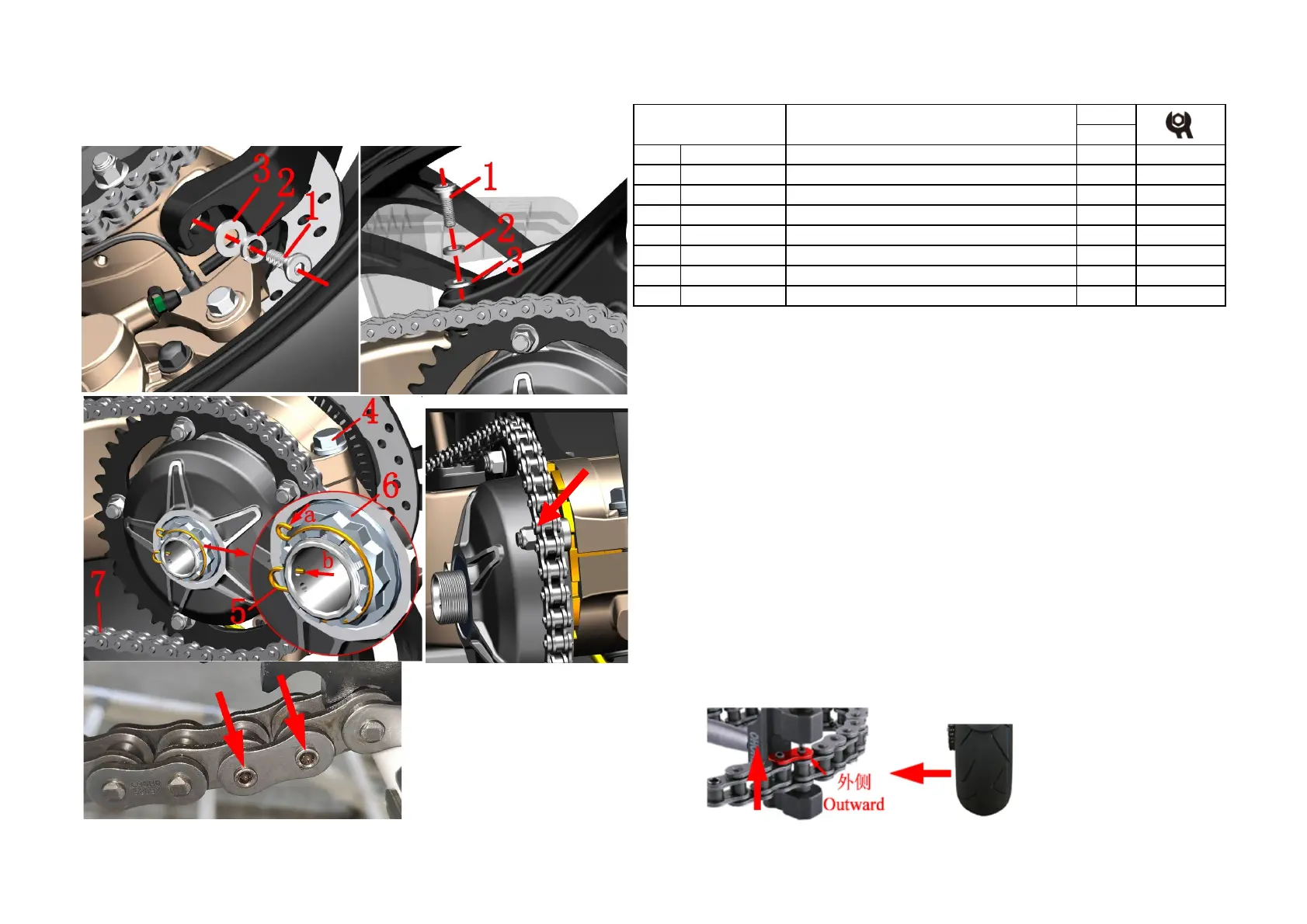

Fig.3 Rear wheel, swinging
arm assembly
Sprocket assembly 1
●Rear auxiliary mud plate assembly
Using 6# inner hexagon socket Remove the bolt ⑴ at the bottom of the rear sub-slab assembly and remove
the spring washer⑵ and flat washer⑶.
After holding the rear sub-mud assembly in one hand, Using a 6# inner hexagon socket remove the upper bolt
⑴and remove the spring washer⑵and flat washer⑶. Place the rear sub-mud assembly properly, taking care
not to pull the cable.
●Sprocket assembly
Use the No. 21 sleeve to loosen the bolt⑷ without removing it.
Pull the locking spring ⑸a radially out of the groove on the nut⑹and pull it out in the axial direction; remove
the locking spring⑸ in the direction indicated by the arrow b.
One person stepped on the brake pedal to prevent the rear wheel from rotating. One person removed the
nut⑹with a 42mm 12-angle sleeve + 280N.m torque wrench.
Use a special hook wrench to turn the eccentric chain adjuster at the arrow direction clockwise to remove the
chain from the sprocket.
Remove the sprocket assembly.
●Chain
Rotate the chain on the left to find the clasp. Grind off the angle grinder to remove the chain⑺.
Punch links⑻ can be purchased on the official website or other online shopping platforms. A dedicated chain
installation tool is required and the tool must be purchased by yourself. The card for the transition link must
be on the outside.
CAUTION:
●The upper bolt sits only after the rear mud plate assembly needs to be dragged down; you can't pull the
cable.
