7、FRONT FORK COMPONENT
73
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000
Non-standard bolt M6×16 (304 stainless steel)
5
2 1274100-057095
Flanging bushing φ6.2×φ8.4×3.5＋φ14×1.5
5
3 1244100-052000 Buffer rubber of flanging bushing (φ8.5×φ14×1) 5
4 1224100-010000
5 1224300-078000
ZT350-VX lower link fender lower part
1
6 1224300-077000
ZT350-VX lower link fender upper part
1
7 1251100-101000
Non-standard bolt M6×12 (304 stainless steel)
4
ZT310-VX Lower link board fender lower part
mounting bracket
2

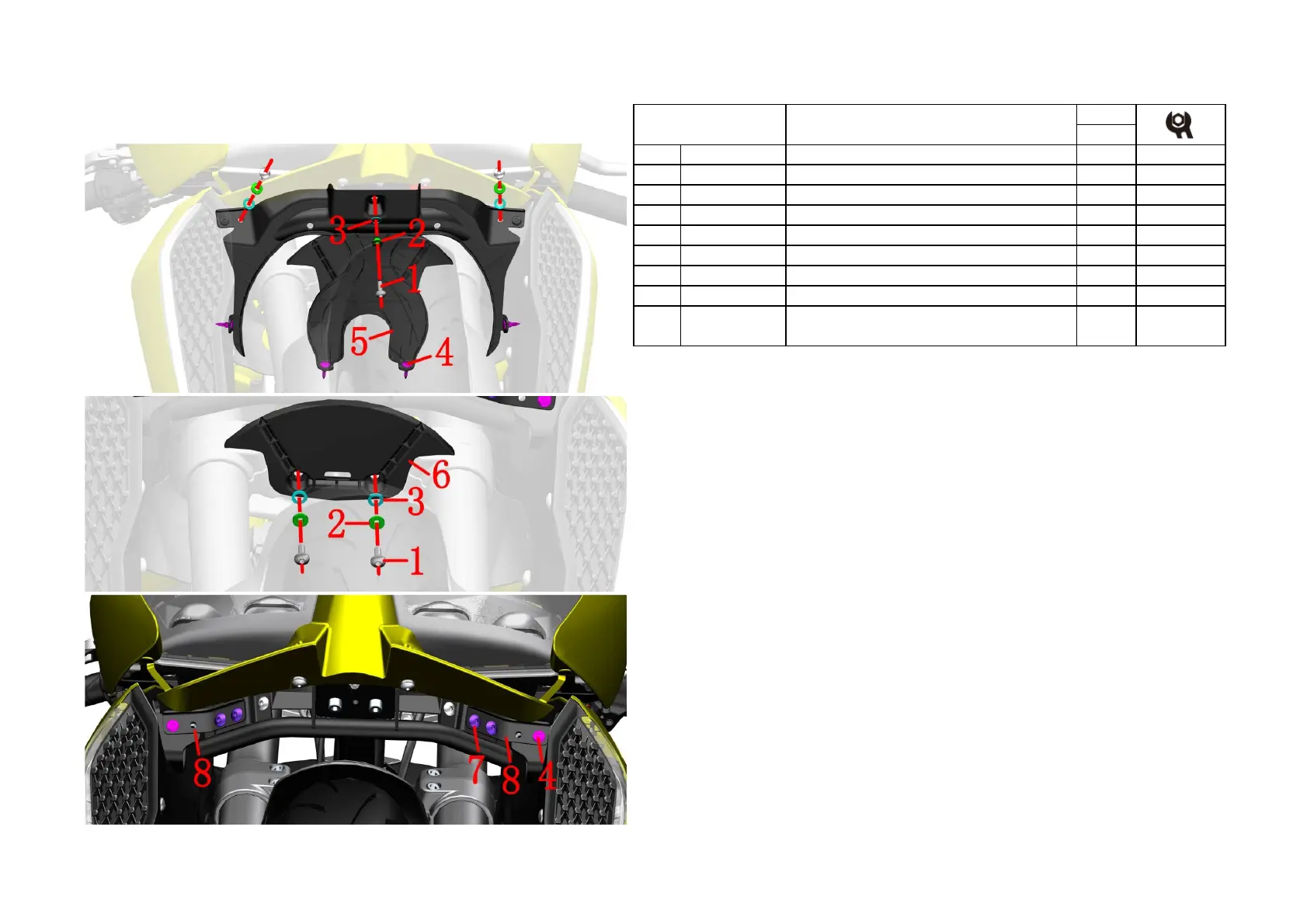

PROCEDURE:
●Fender assembly of lower link plate
Remove the 3 bolts ⑴ shown in Figure 1 with a 4# inner hexagon, and remove the bush ⑵ and cushion
rubber ⑶.
Grasp the lower part of the fender ⑸, remove the 4 expansion nails ⑷, and remove the lower part of the
fender ⑸.
After grasping the upper part of the fender ⑹, remove the 2 bolts ⑴ shown in Figure 2 with a 4# inner
hexagon, and remove the bushing ⑵ and the cushion rubber ⑶.
Remove the 2 bolts ⑺ shown in Figure 3 with 4# inner hexagon, remove the expansion nail ⑷, and then
remove the bracket ⑻.
CAUTION:
●You can search "ZT310-VX Headlight Replacement Video" in the assembly video to watch the detailed video
tutorial.The disassembly is the same,only the apperarance of individual parts is different.
8 1274200-290021
Fig.13 FRONT FORK
COMPONENT
Headlight assembly 2
