ABB Network Partner AB
Apparatus control
Version 1.0-00
1MRK 580 150-XEN
Page 6 - 10

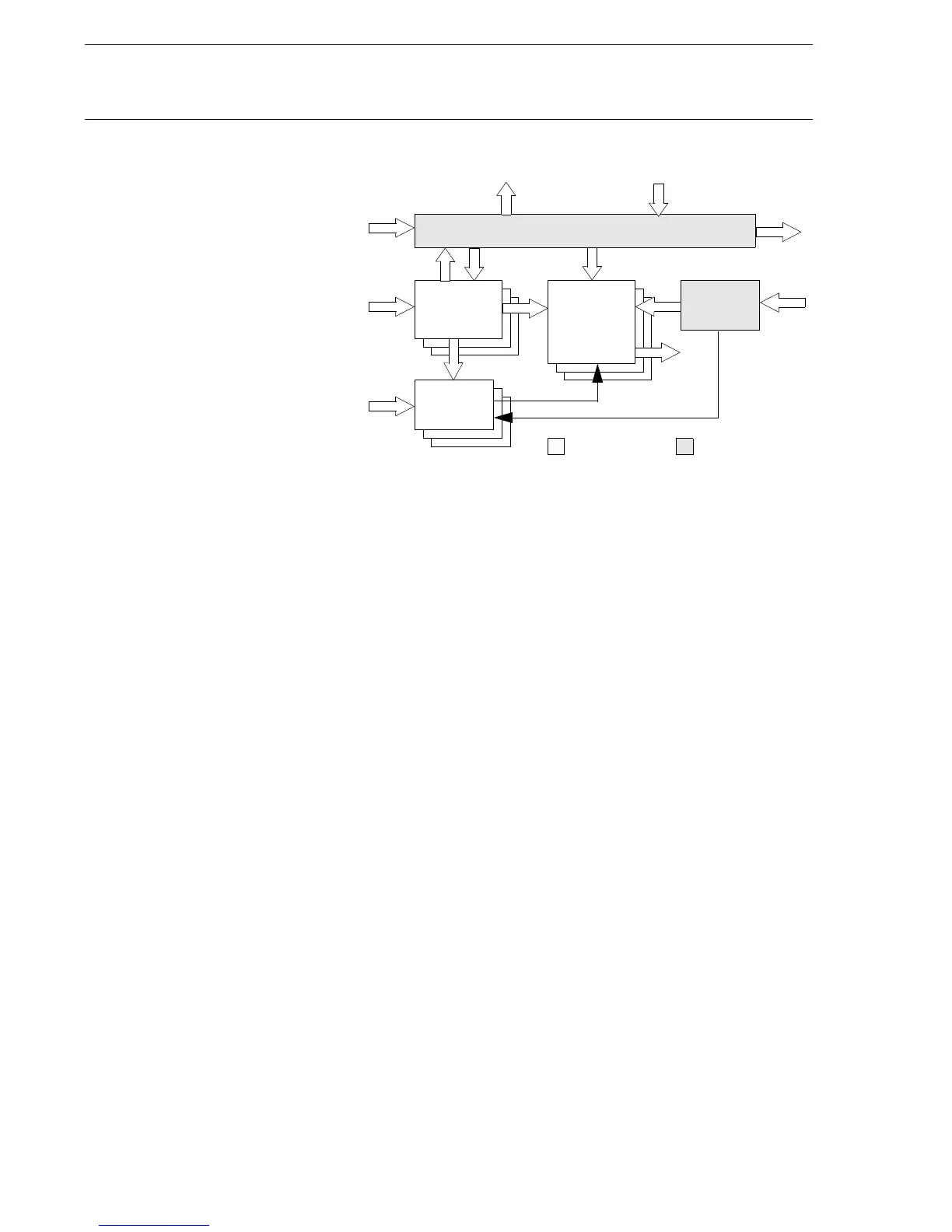

The Fig. 3 shows how the modules are combined:
Fig. 3 Overview of the interaction between the apparatus control
modules
3.2 Standard modules In REC 561, several standard function blocks are available. Below the dif-
ferent standard modules are described. The appendix describes input and
output functions.
The BAYCON element consists of six variants, BAYCONA - BAY-
CONF.
BAYCONA: The normal version to be used.
BAYCONB: The same as A, but used when more than eight apparatuses
are included in one bay, that is, when more than one BAYCON is used per
bay.
BAYCONC: Is used if external selection relays with common feedback
signals are used.
BAYCOND: The same as C, but used when more than eight apparatuses
are included in one bay, that is, when more than one BAYCON is used per
bay.
BAYCONE: Is used if external selection relays with individual feedback
signals are used.
BAYCONF: The same as E, but used when more than eight apparatuses
are included in one bay, that is, when more than one BAYCON is used per
bay.
COMCON consists of only one variant.
BAYCON
COMCON
SWICON
BLKCON
BLKCON
Apparatus Bay
(X80150-3)
