Function:
1 Application
The remote communication can be used for different purposes, which ena-
ble better access to the information stored in the terminals. For control ter-
minals, the remote communication is also used for communication
directly between terminals (bay-to-bay communication).
The remote communication can be used with a station monitoring system
(SMS), via substation automation (SA) or a SCADA system. Normally,
SPA communication is used for SMS and SA; LON communication is
used for SA. SPA communication is also applied when using the front
communication port, but for this purpose, no special Remote communica-
tion function is required in the terminal. Only the software in the PC and a
special cable for front connection is needed.

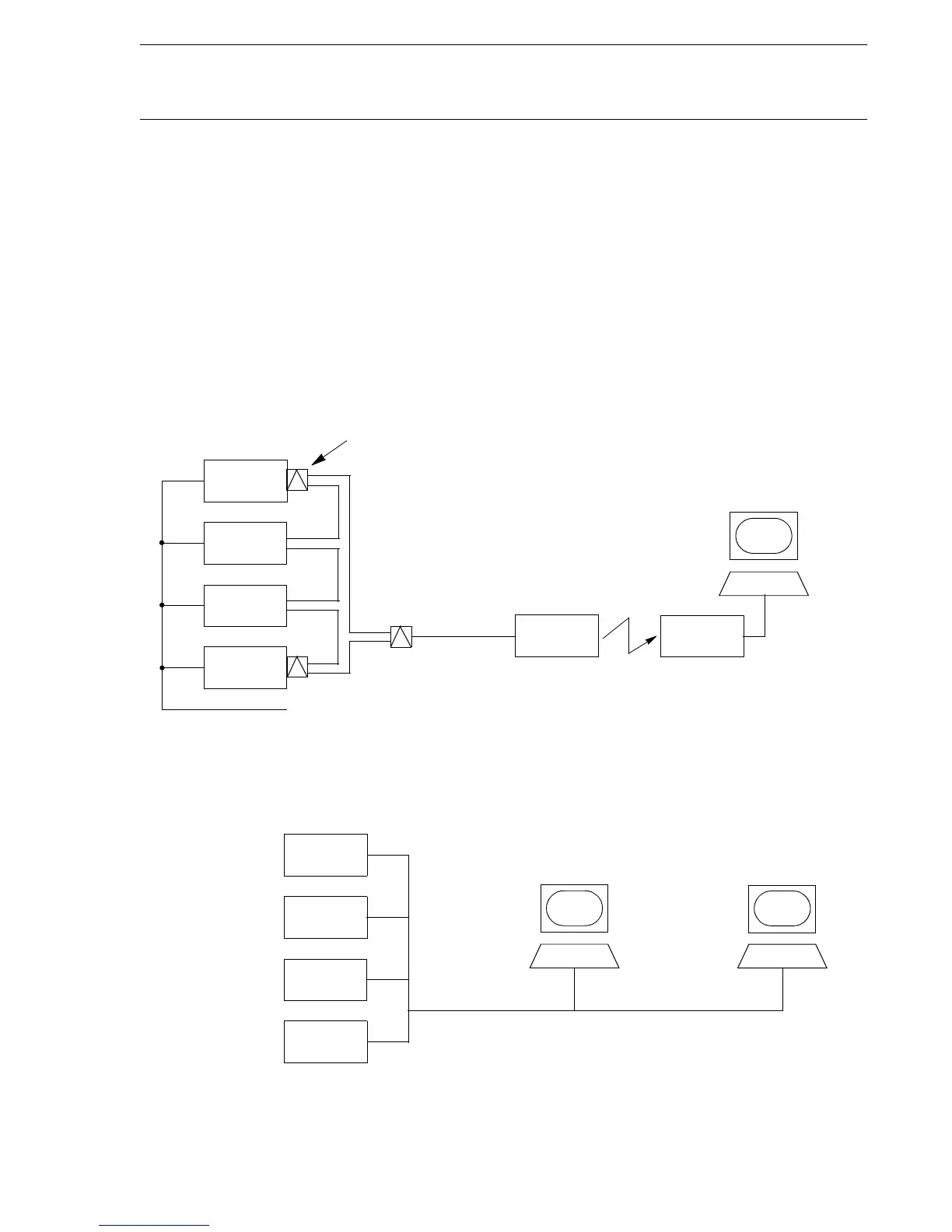

Fig. 1 Example of SPA communication structure for a station moni-
toring system
Fig. 2 Example of LON communication structure for substation auto-
mation
(X80142-1)
REL 511
Bus connection units
REOR 100
REL 531
REC 561
SPA bus
Fibre optic
loop
Opto/electrical
converter
(Minute pulse
from station clock)
Telephone
Telephone
modem
modem
SMS-BASE
SM/REL 511
SM/REL 531
SM/REC 561
SM/REOR 100
RECOM
REVAL
REC 561
REL 531
REL 531
REC 561
Micro SCADA
Gateway
LON-bus
(X80142-2)
7
Remote communication
1MRK 580 142-XEN
Version 1.0-00
November 1996
Optional
