ABB Network Partner AB
Construction and hardware
characteristics - REC 561
Version 1.0-00
1MRK 580 148-XEN
Page 2 - 38
3.4 Wall mounting A mounting kit is available for wall mounting. It includes:
• Two side plates
• Screws (grip types TORX T20, T25 and T30)
• Two mounting bars to be mounted on the wall

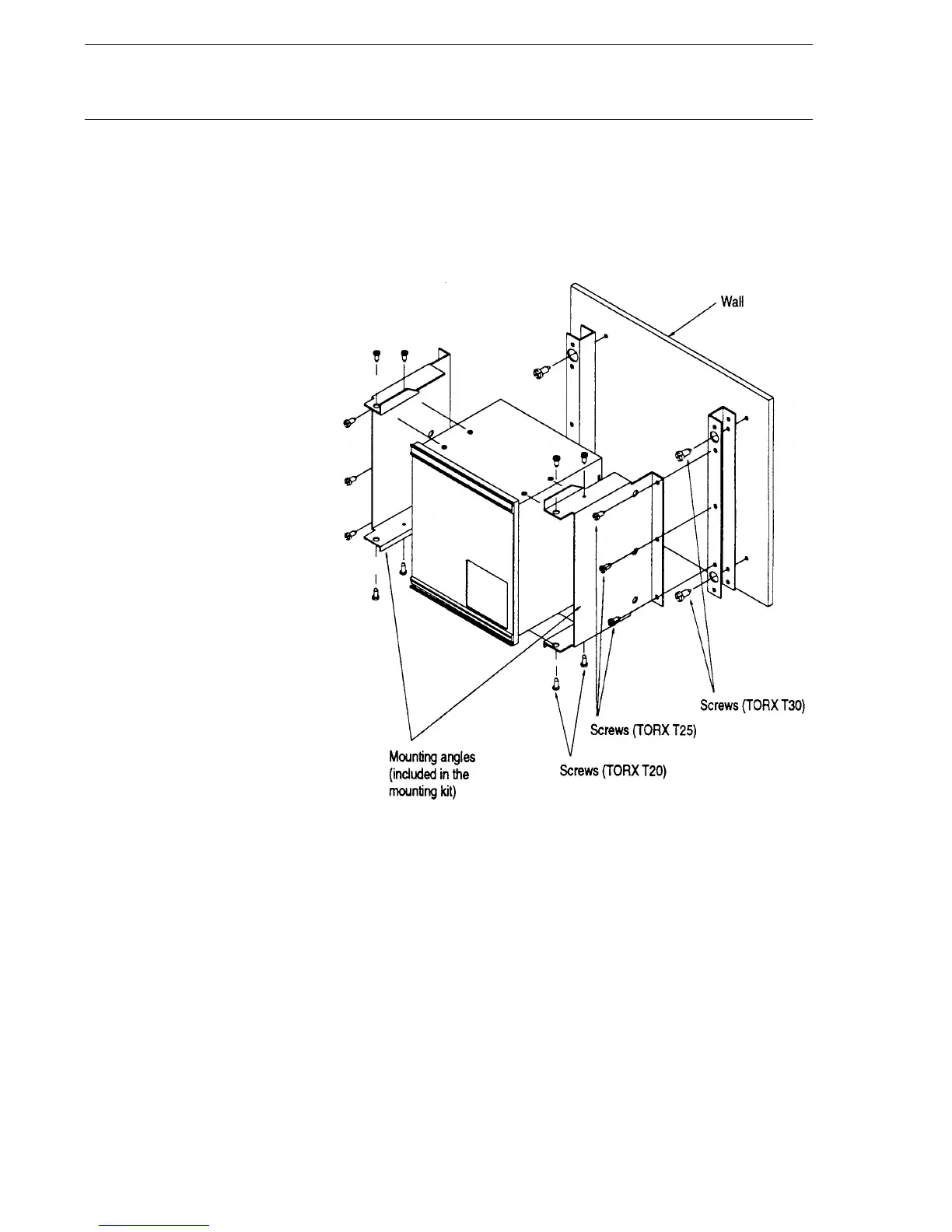

Fig. 8 Wall mounting
See the Buyer’s Guide Series REx 500 Mechanical design and mounting
accessories (1MRK 514 003-BEN) for ordering details.
Two bars of screw terminals can be applied (one above the protection and
one below), which yield about 50-70 connection points, depending on the
width. The screw terminals and their supports are not included in the
mounting kit.
(X80148-8)
