ABB Network Partner AB
Apparatus control
Version 1.0-00
1MRK 580 150-XEN
Page 6 - 34

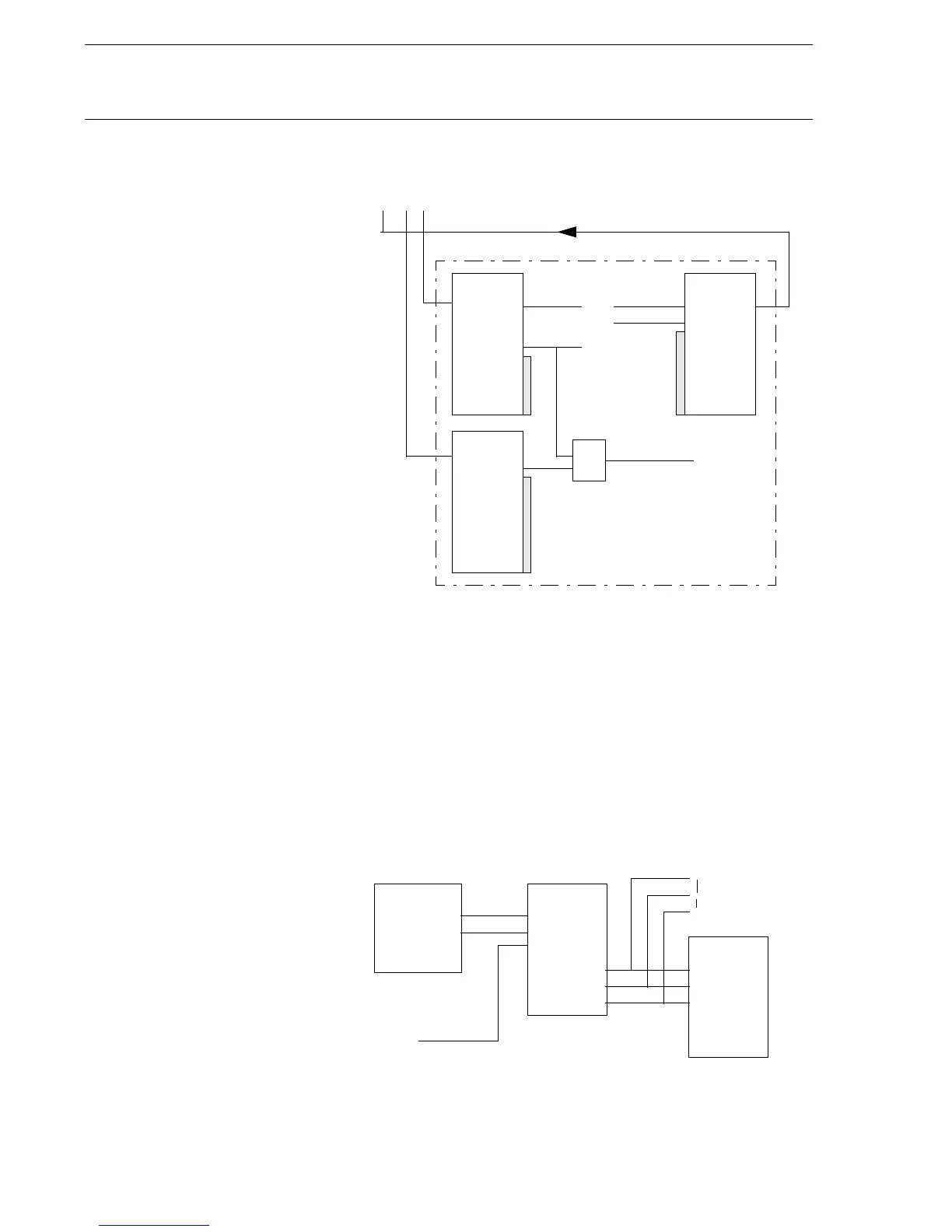

Fig. 18 The principle of the communication between bays
4.2.2 Operator place
selection
The connections to the operator place selectors can be done as shown in
Fig. 19, where the remote/station selection is performed from the station
MMI, and the selection for the local control is performed from a switch on
a local panel. It has a built-in priority with Local as highest, Station as
intermediate, and Remote as lowest priority. When two or more inputs are
set at the same time, the higher priority prevails. The S_R and S_S inputs
have pulse inputs. But the L_L requires a steady signal.
Fig. 19 Connection of operator place selection
OUT2
OUT3
OUT4
.
.
OUT16
OUT1
OUT2
OUT3
OUT4
.
.
OUT16
OUT1
EVENT
INPUT1
INPUT2
INPUT3
INPUT4
INPUT16
.
.
RE_BAYS
ACK_T_B2
RE_RQ_B
ACK_T_B
Line bay 2
&
ACK_T_B2
1
23
From previous page:
MultCmdFunc
MultCmdFunc
(X80150-18)
MultCmdFunc
OUT13
OUT14
BAYCON
S_R
S_S
STATION
L_L
REMOTE
LOCAL
Bay commands
from station
MMI
Defined as pulse
outputs
From
local
switch
STATION
REMOTE
LOCAL
COMCON



To other
COMCON
in the bay
(X80150-19)
To Next Page
