Function:
1 Introduction
The built-in man machine interface (MMI) provides local communication
between the user and the terminal.
Local communication also occurs with a PC connected to the built-in
MMI via a special optical interface. This communication works like the
remote communication within the station monitoring system (SMS)
described in the other corresponding documents.
This chapter describes in detail the structure of a local MMI, the basic
principles of local man-machine communication (MMC), and the basic
structure of a menu tree in a terminal.
Document 1MRK 580 158-XEN presents a detailed menu tree for all
REx 5xx series terminals in detail.
2 Man-machine interface module - design
The MMI module consists of three light emitting diodes (LEDs), a liquid
crystal display (LCD), six membrane button, and one optical connector
that enables local man machine communication (MMC) with the aid of a
personal computer (PC).

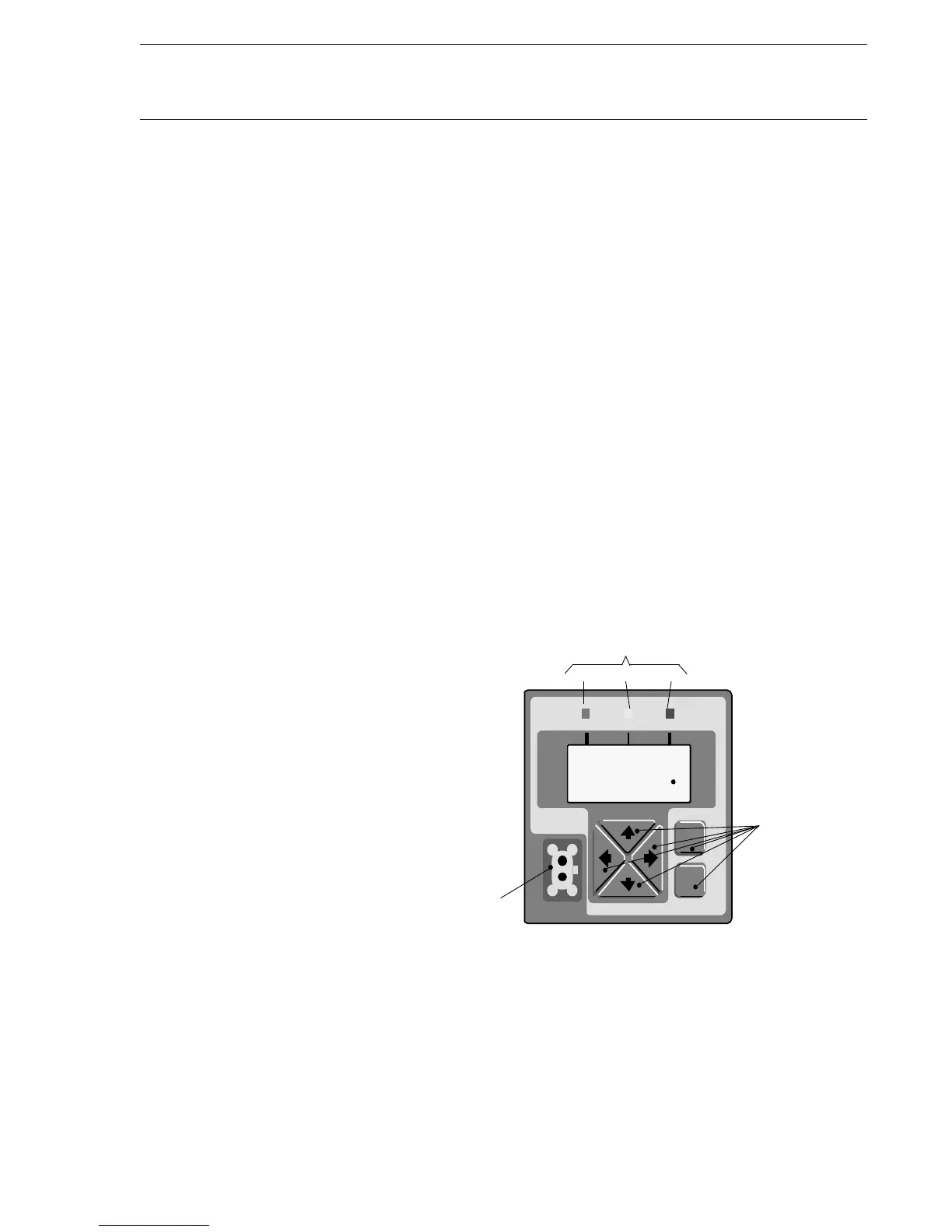

Fig. 1 Built-in man-machine interface module.
2.1 LEDs Three LEDs provide primary information on the status of a terminal. Each
LED has a special function, which also depends on whether it is dark, has
a steady light, or a flashing light.
E
C
Ready Start Trip
RE. 5.. VER 1.0
C = Clear LEDs
E = Enter menu
green yellow red
LEDs
optical connector
for local PC
liquid crystal display
four rows
16 characters/row
push buttons
(X80156-1)
3
Local man machine
communication
1MRK 580 156-XEN
Version 1.0-00
October 1996
