ABB REC 561 User Manual

Apparatus control
ABB Network Partner AB
1MRK 580 150-XEN
Page 6 - 45
Version 1.0-00

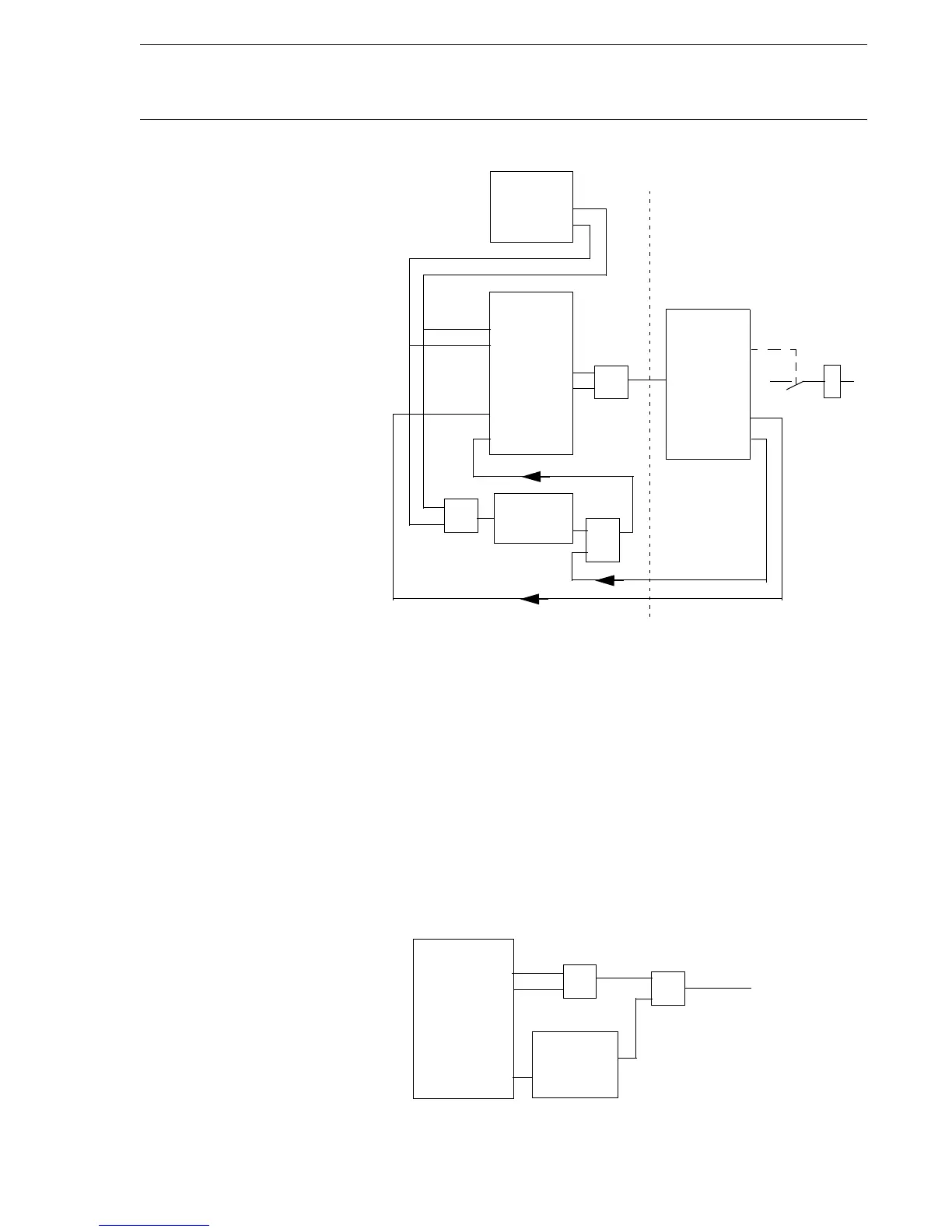

Fig. 31 Connections between external synchronising equipment and
the apparatus control modules, alternative 3
In Fig. 28 to Fig. 31, the SY_FAIL input supervises the synchronisation
time. If the relay does not reach synchronism within a certain time,
SY_FAIL is activated and resets the complete operation sequence.
4.2.9 Autoreclosing Fig. 32 shows the interaction between the autoreclosing (AR) module and
the apparatus control modules. The OR gate for the close signal must have
the same execution cyclicity as the autoreclosing module. The signal
BLK_AR from SWICON is used to block the autoreclose function at the
moment the circuit breaker is under operation.
Fig. 32 Connections between autoreclosing (AR) module and appara-
tus control modules
SWICONB
SY_RUN
SY_FAIL
&
SEL_CLOS
EXE_CLOS
CLOSE
+
-
External synchronising equipment
CB
close
coil
Timer
INPUT
ON
BI/BO
SYNCH
COMCON
CLOSE
EXECUTE
CLOSE
EXECUTE
&
IN
FAULT
≥1
PROGRESS
START
(X80150-31)
SWICONA(B)
&
SEL_CLOS
EXE_CLOS
≥1
AR
INHIBIT
CLOSECB
BLK_AR
CLOSE
Circuit Breaker
To output board
(AR_SEL)
(X80150-32)
